SKU: 93339007

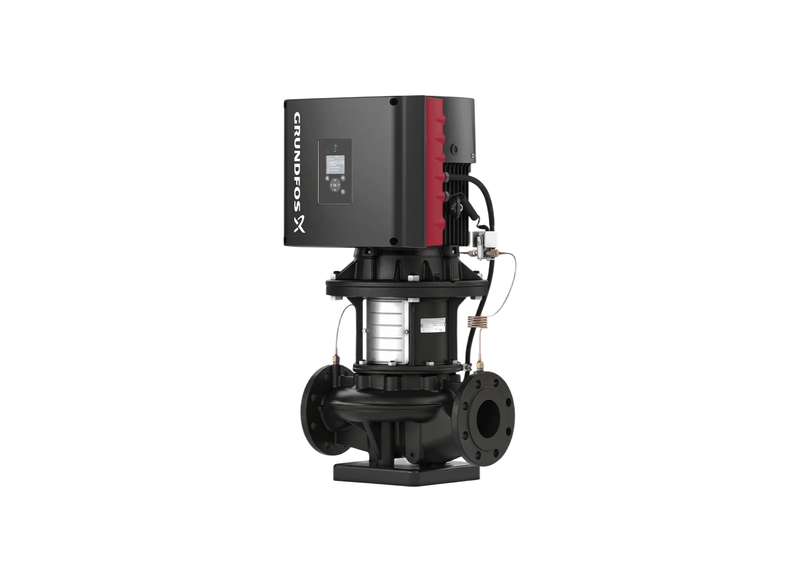

Grundfos TPE3 50-730 Cast Iron Variable Speed Three Phase Inline Centrifugal Pump with Cast Iron Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The TPE3 50-730 in-line centrifugal pump is specified for clean water circulation across commercial heating and cooling installations, district energy plants, and industrial utility headers. Operating with a 15 kW electric drive, the unit features inline DN 50 pipe connections that mount straight into active fluid transfer lines without requiring offset piping manifolds.
Hydraulic performance testing confirms a rated output volume of 1168 L/Min with an operational head rating of 59.3 m. The EN-GJL-250 cast iron volute casing handles system line pressures up to 16 bar. Internal fluid movement is driven by a durable Cast iron impeller fitted with a BQQE mechanical seal. Product net weight equals 134 kg.
The electric drive motor operates on a 3 x 380-480 V Three-phase power source drawing 26.7 Amps nominal operating current at 15 kW drive output. The pump processes clean, non-aggressive fluids across liquid temperatures between -25°C to 120°C under maximum working pressures up to 16 bar. Flanged connections feature matching DN 50 inlet and outlet porting.
Built with an IP55 dust and moisture resistant motor enclosure, the unit features Class F thermal insulation for reliable continuous duty. An integrated variable frequency drive (VFD) and PI controller adjust motor speed dynamically to match real-time flow demand. Servicing is simplified by the top-pull-out architecture, allowing removal of the motor head and rotating assembly without disturbing main line pipe joints.
Features
- High-efficiency motor design delivers optimized hydraulic throughput with minimal electrical power consumption across variable duty cycles.
- EN-GJL-250 cast iron volute housing provides robust pressure containment up to 16 bar in demanding hydronic circulation loops.
- Corrosion-resistant Cast iron impeller rotor is precision-balanced to minimize operational vibration and extend bearing lifecycle.
- Standardized DN 50 flanged connections comply with EN 1092-2 for seamless drop-in integration into commercial pipe headers.
- Maintenance-free BQQE mechanical shaft seal prevents fluid leakage and maintains seal integrity under elevated working pressures.
- IP55 motor enclosure protection guards internal electrical components against ambient dust accumulation and water splash ingress.
- Class F thermal motor insulation permits continuous operation under elevated fluid temperatures ranging from -25°C to 120°C.
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
SPECIFICATIONS
| Max Flow | 1168 L/Min |
| Max Head | 59.3 m |
| Power | 15 kW / 415v |
| Rated Current | 26.7 Amps |
| Suitable For | Heating & Cooling Systems |
| Body Material | EN-GJL-250 Cast Iron |
| Liquid Temperature | '-25°C to 120°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum water volume this pump can discharge?
Displacing fluid into connected headers, the Grundfos TPE3 50-730 sustains up to 1168 L/Min of volumetric throughput.
What corrosion-resistant materials are used in the wetted components?
Durable EN-GJL-200). construction gives the TPE3 50-730 exceptional structural strength and long-term protection against corrosive fluids.
What are the power requirements and running amperage for this pump?
Powered by a dedicated 15 kW motor, the TPE3-50-730 connects to 415 V three-phase mains power with a rated current draw of 26.7 Amps.
What submersion depth limits and fluid temperatures apply to this pump?
Operating comfortably across temperatures -25°C to 120°C, the TPE3 50 730 supports diverse fluid circuits.
What is the maximum vertical lift capacity of this pump?
Under rated operating head, the TPE3/50/730 can lift water to a maximum dynamic head of approximately 59.3 m through vertical risers.
