SKU: 93338837

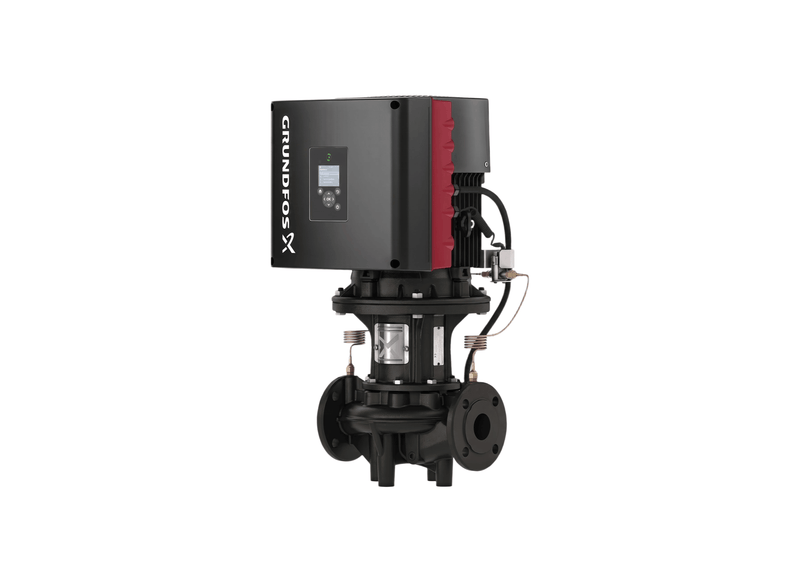

Grundfos TPE3 80-250 Cast Iron Variable Speed Three Phase Inline Centrifugal Pump with Composite Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Operating on a 4 kW motor drive, the TPE3 80-250 single-stage inline pump handles fluid transfer across commercial building services, cooling tower circuits, and hydronic heating headers. Standardized DN 80 suction and discharge flanges permit inline line mounting, eliminating complex foundation coupling procedures.
Liquid handling performance provides a nominal flow rate of 1220 L/Min against a maximum head limit of 16.9 m. The cast iron volute body (EN-GJL-250) offers corrosion barrier protection for hydronic loops. The internal rotor houses a Composite impeller assembly supported by a BQQE shaft seal. Equipment net weight stands at 61.6 kg.
Engineered for Three-phase electrical systems (3 x 380-500 V), the 4 kW motor draws 7.60 Amps full-load current. Operating liquid temperatures cover a wide -25°C to 120°C span up to 16 bar system working pressure. Opposite DN 80 inlet and DN 80 discharge flanges provide standard pipe header compatibility.
Enclosure protection meets IP55 weatherization standards, supported by Class F motor insulation against high ambient temperatures. An onboard frequency converter with closed-loop PI control allows real-time variable speed tuning. The top-pull-out power head geometry permits technicians to perform seal or impeller maintenance while keeping the volute casing installed in system pipework headers.
Features
- Equal suction and discharge port diameters enable straightforward inline installation without requiring custom pipe reducer spools.
- Integrated variable frequency converter with PI controller modulates motor RPM dynamically to balance flow demand and lower energy usage.
- Top-pull-out structural layout enables complete drive head and impeller extraction without disconnecting the pump casing from system piping.
- High-efficiency motor design delivers optimized hydraulic throughput with minimal electrical power consumption across variable duty cycles.
- EN-GJL-250 cast iron volute housing provides robust pressure containment up to 16 bar in demanding hydronic circulation loops.
- Corrosion-resistant Composite impeller rotor is precision-balanced to minimize operational vibration and extend bearing lifecycle.
- Standardized DN 80 flanged connections comply with EN 1092-2 for seamless drop-in integration into commercial pipe headers.
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
SPECIFICATIONS
| Max Flow | 1220 L/Min |
| Max Head | 16.9 m |
| Power | 4 kW / 415v |
| Rated Current | 7.60 Amps |
| Suitable For | Heating & Cooling Systems |
| Body Material | EN-GJL-250 Cast Iron |
| Liquid Temperature | '-25°C to 120°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How high can this pump push fluid through discharge risers?
Pumping performance for the Grundfos TPE3 80-250 provides up to 16.9 m of vertical dynamic lift, depending on system friction and line sizing.
What is the maximum flow capacity of this pump per minute?
Moving liquid through the system, the TPE3 80-250 maintains an operational throughput of up to 1220 L/Min during peak demand.
What materials are used to construct the pump casing and impeller?
Built with a resilient high-grade alloy body, the TPE3-80-250 maintains material durability against fluid abrasion and wear.
What voltage supply and motor power does this pump need?
Connecting across 415 V three-phase lines, the TPE3 80 250 draws approximately 7.6 Amps with an efficient 4 kW motor.
What fluid temperature limits and immersion depths are rated for this unit?
Fluid media ranging -25°C to 120°C can be circulated through the TPE3/80/250 without thermal breakdown.
