SKU: 93339051

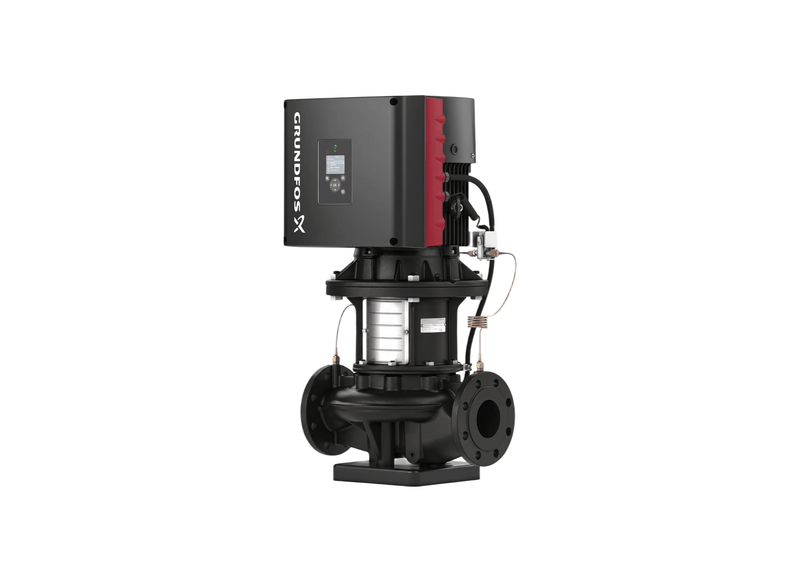

Grundfos TPE3 80-560 Cast Iron Variable Speed Three Phase Inline Centrifugal Pump with Cast Iron Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Operating on a 18.5 kW motor drive, the TPE3 80-560 single-stage inline pump handles fluid transfer across commercial building services, cooling tower circuits, and hydronic heating headers. Standardized DN 80 suction and discharge flanges permit inline line mounting, eliminating complex foundation coupling procedures.
Liquid handling performance provides a nominal flow rate of 2132 L/Min against a maximum head limit of 44.5 m. The cast iron volute body (EN-GJL-250) offers corrosion barrier protection for hydronic loops. The internal rotor houses a Cast iron impeller assembly supported by a BQQE shaft seal. Equipment net weight stands at 145 kg.
Engineered for Three-phase electrical systems (3 x 380-480 V), the 18.5 kW motor draws 33.0 Amps full-load current. Operating liquid temperatures cover a wide -25°C to 120°C span up to 16 bar system working pressure. Opposite DN 80 inlet and DN 80 discharge flanges provide standard pipe header compatibility.
Enclosure protection meets IP55 weatherization standards, supported by Class F motor insulation against high ambient temperatures. An onboard frequency converter with closed-loop PI control allows real-time variable speed tuning. The top-pull-out power head geometry permits technicians to perform seal or impeller maintenance while keeping the volute casing installed in system pipework headers.
Features
- Corrosion-resistant Cast iron impeller rotor is precision-balanced to minimize operational vibration and extend bearing lifecycle.
- Standardized DN 80 flanged connections comply with EN 1092-2 for seamless drop-in integration into commercial pipe headers.
- Maintenance-free BQQE mechanical shaft seal prevents fluid leakage and maintains seal integrity under elevated working pressures.
- IP55 motor enclosure protection guards internal electrical components against ambient dust accumulation and water splash ingress.
- Class F thermal motor insulation permits continuous operation under elevated fluid temperatures ranging from -25°C to 120°C.
- Equal suction and discharge port diameters enable straightforward inline installation without requiring custom pipe reducer spools.
- Integrated variable frequency converter with PI controller modulates motor RPM dynamically to balance flow demand and lower energy usage.
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
SPECIFICATIONS
| Max Flow | 2132 L/Min |
| Max Head | 44.5 m |
| Power | 18.5 kW / 415v |
| Rated Current | 33.0 Amps |
| Suitable For | Heating & Cooling Systems |
| Body Material | EN-GJL-250 Cast Iron |
| Liquid Temperature | '-25°C to 120°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How many meters of dynamic lift does this pump provide?
To overcome vertical elevation resistance, the Grundfos TPE3 80-560 develops a maximum pumping head of approximately 44.5 m.
How much fluid throughput does this pump move under full load?
At full operating capacity, the TPE3 80-560 moves up to 2132 L/Min to keep liquid levels controlled during peak inflow.
What materials protect the wetted parts against aggressive chemical attack?
Structural defense on the TPE3-80-560 is provided by a rugged EN-GJL-250 casing designed to withstand heavy mechanical stress.
What electrical voltage and motor kilowatt output drive this unit?
Running on 415 V three-phase power supplies, the TPE3 80 560 is driven by a 18.5 kW motor rated at 33.0 Amps.
What water temperature range and installation depth are supported?
Routine operational thermal ceilings enable the TPE3/80/560 to process liquids -25°C to 120°C.
