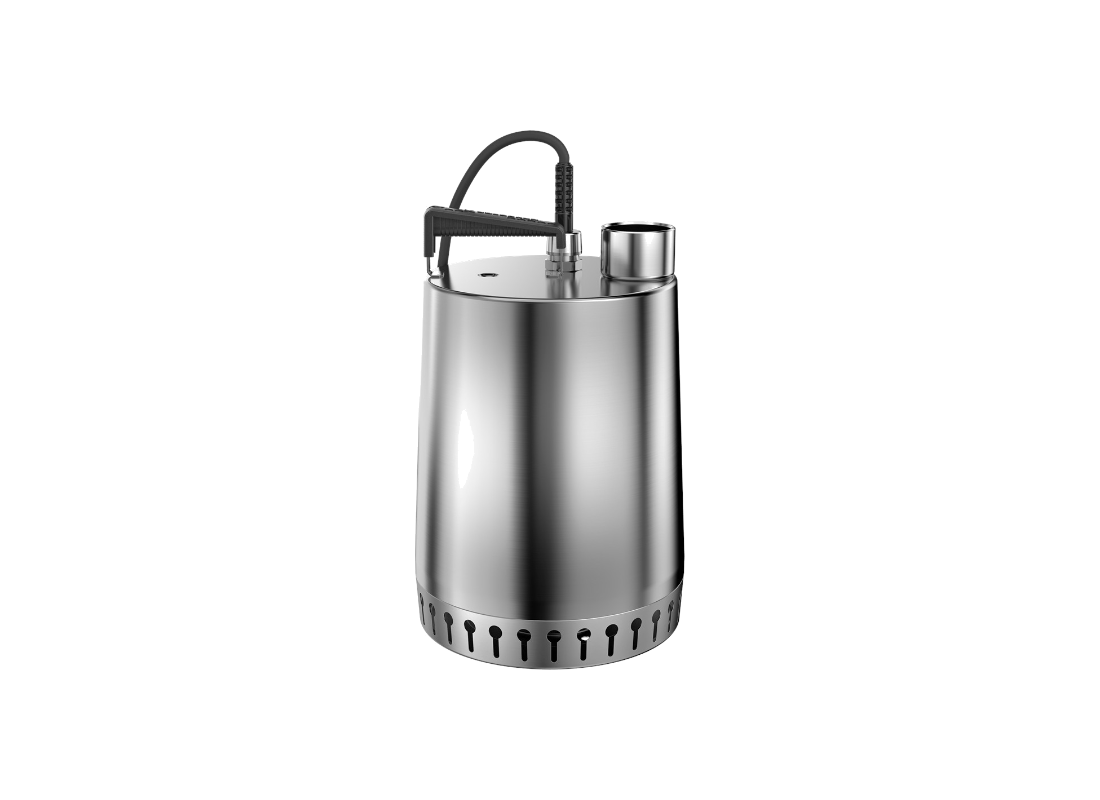

Grundfos Unilift AP12.40.04.1 Stainless Steel Manual Wastewater Pump for Sumps with Semi-Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Operating explicitly as a heavy duty, submersible stainless steel grey water pump, the Grundfos UNILIFT AP12.40.04.1 is structured for reliable fluid transfer. It handles clean water, storm water, and slightly dirty wastewater across domestic and light industrial environments. The unit offers flexible deployment capabilities, functioning efficiently within permanent plumbing installations or acting as a portable drainage asset for temporary fluid relocation.
Hydraulic performance relies on an efficient 0.4 kW motor. Powered via a 1 x 240 V single-phase electrical supply, the core operates with a rated draw of 3.1 Amps. Fluid is discharged through a 40 mm female threaded connection, allowing the volute to securely output a maximum flow of 233 L/Min. During vertical extraction cycles, the unit effectively scales the fluid column to establish a 10 metre maximum head.
Continuous operation in dirty environments requires a fortified internal circulation pathway. The pump incorporates a precision semi-open stainless steel impeller that allows the safe transit of solid particles up to 12 mm in diameter. This geometric clearance prevents suspended matter from causing rotational jams. The manual configuration permits the system to draw standing water down to a 100 mm minimum pumping level.
Constructed entirely from 304 stainless steel, the IP68-rated motor permits submerged underwater installations down to a 7-metre maximum depth. An integrated cooling jacket dissipates internal heat, allowing for extended continuous operation when partially submerged. The pump processes fluids with a pH between 4 and 10 and handles liquid temperatures up to 55°C, with a brief thermal tolerance of 70°C for two minutes.
FEATURES
- Features a heavy-duty brass cable union to strictly isolate the primary electrical feed from ambient moisture intrusion.
- Rated with an internal Class F insulation threshold to safely tolerate heavy electrical load fluctuations.
- Utilizes a Permanent Split Capacitor (PSC) motor architecture to ensure smooth rotational startup sequences.
- Equipped with internal thermal protection circuitry that acts as an immediate safety cutoff to prevent coil burnout.
- Pre-installed with a 10-metre power supply cable terminating in a standard single-phase plug for immediate deployment.
- Certified with C-Tick and CE compliance markings to guarantee strict adherence to recognized environmental standards.
- Unit possesses a net weight of 11.6 kg, ensuring stable positioning during portable deployment across varied catchments.
SPECIFICATIONS
| Max Flow | 233 L/Min |
| Max Head | 10 m |
| Power | 0.4 kW / 240v |
| Rated Current | 3.1 Amps |
| Suitable For | Domestic Sump Drainage |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 55°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water flow and pressure can this pump deliver?
You get up to 233 L/Min in flow and a maximum head of 10 m from the Grundfos Unilift AP12.40.04.1, depending on operating conditions.
What electrical connection and motor power run this pump?
Powered by a dedicated 0.4 kW motor, the Unilift AP12.40.04.1 connects to 240v mains power with a rated current draw of 3.1 Amps.
What corrosion-resistant materials are used in the wetted components?
Manufactured with quality materials, the Unilift-AP12-40-04-1 incorporates Stainless Steel for dependable longevity and resistance to fluid erosion.
What domestic plumbing and water boosting roles does this pump perform?
Suited for diverse installations, the Unilift AP12 40 04 1 performs Housing design in supports stainless steel wastewater drainage, stormwater catchment evacuation, and utility trench dewatering with dependable fluid propulsion.
What factory warranty backing is provided with this pumping equipment?
Factory coverage on the Unilift/AP12/40/04/1 provides an authentic 2 Years warranty for dependable long-term reliability.
