Roll over image to zoom
SKU: 96011024

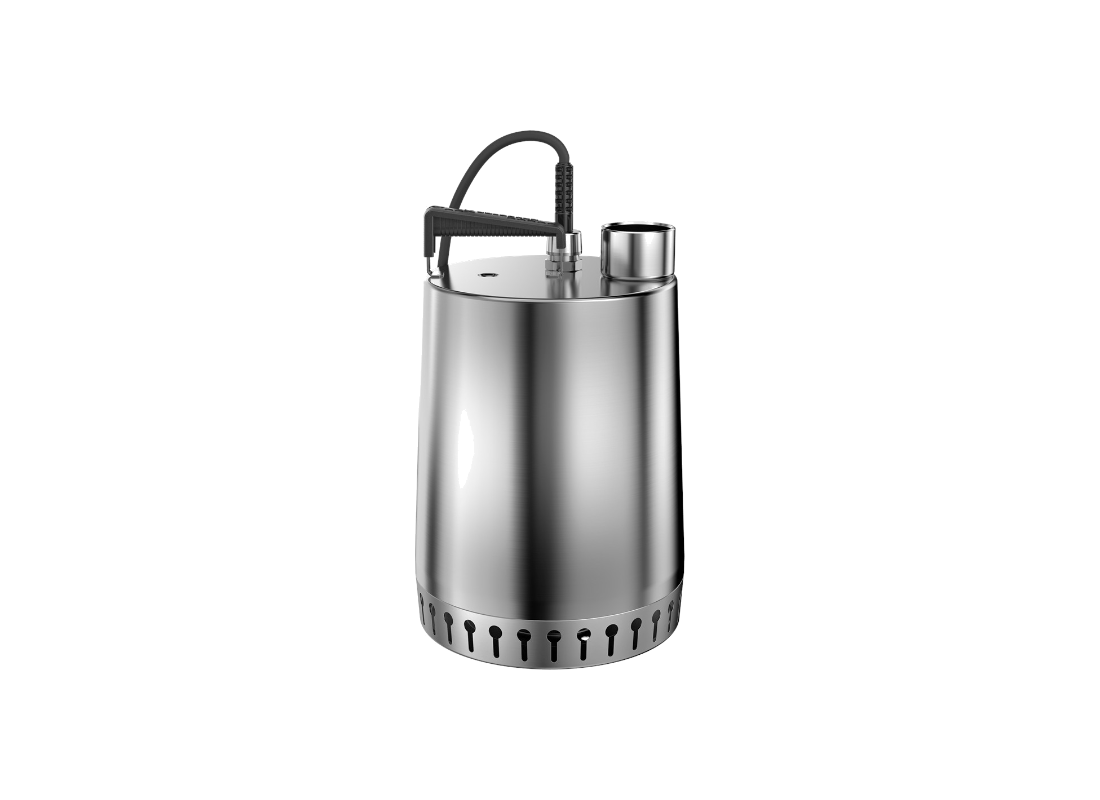

Grundfos Unilift AP12.40.04.3 Stainless Steel Three Phase Wastewater Pump for Grey Water with Semi-Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Commercial operations utilizing three-phase power grids require compatible, rugged hardware for continuous fluid transfer. Operating as a heavy duty, submersible stainless steel grey water pump, the Grundfos UNILIFT AP12.40.04.3 efficiently clears non-aggressive liquids. The system works effectively as a permanent fixture within drainage pits or as a portable unit for extracting clean and storm water on active sites.
Phase distribution allows the internal motor to maintain stable rotational torque under pressure. Wired for a 3 x 415 V supply, the robust 0.4 kW drive operates highly efficiently with a strict 1.2 Amps rated draw. It generates a consistent 233 L/Min maximum flow, discharging directly through a 40 mm female port. Against vertical pipeline resistance, the internal pressure securely sustains a 10 metre maximum head.
Transporting slightly dirty wastewater requires an unobstructed primary circulation loop. A specialized semi-open stainless steel impeller agitates the fluid, securely managing the transit of solid environmental debris up to 12 mm in diameter. This precise mechanical tolerance eliminates the risk of internal choking, allowing the pump to consistently drop fluid levels down to a 100 mm minimum clearance.
Rated strictly for submerged use, the IP68-classified housing permits deep installations down to 7 metres. An integrated motor cooling jacket constantly dissipates thermal build-up into the passing fluid, enabling the manual unit to operate safely during partial submersion. Built entirely from 304 stainless steel, it comfortably handles liquids ranging from pH 4 to 10 and temperatures up to 55°C.
FEATURES
- Supplied with a raw 10-metre power cable specifically tailored for hardwired three-phase commercial integration.
- Constructed from premium 304 stainless steel across all wetted parts to permanently resist corrosion.
- Features an integrated motor cooling jacket for safe, extended operation during partial submersion.
- Utilizes a semi-open impeller design capable of continuously passing solid particles up to 12 mm in size.
- Rated with an IP68 enclosure class to safely permit underwater installations down to a 7-metre maximum depth.
- Certified to process a broad range of liquid chemistry, accommodating fluids with a pH value between 4 and 10.
- Engineered to safely tolerate 55°C liquid temperatures, and up to 70°C for brief two-minute intervals.
SPECIFICATIONS
| Max Flow | 233 L/Min |
| Max Head | 10 m |
| Power | 0.4 kW / 415v |
| Rated Current | 1.2 Amps |
| Suitable For | Commercial Drainage |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 55°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water flow and pressure can this pump deliver?
Output across system pipework enables the Grundfos Unilift AP12.40.04.3 to deliver up to 233 L/Min in flow and a maximum head of 10 m, depending on your pipe layout.
What are the power requirements and running amperage for this pump?
Under full load conditions, the motor in the Unilift AP12.40.04.3 delivers 0.4 kW on a 415v line drawing 1.2 Amps.
What corrosion-resistant materials are used in the wetted components?
Built with a resilient Stainless Steel body, the Unilift-AP12-40-04-3 maintains material durability against fluid abrasion and wear.
What domestic plumbing and water boosting roles does this pump perform?
Routine operational tasks matching the Unilift AP12 40 04 3 encompass At household plumbing manifolds, performs stainless steel wastewater drainage, stormwater catchment evacuation, and utility trench dewatering across connected networks.
What factory warranty backing is provided with this pumping equipment?
Grundfos backs the Unilift/AP12/40/04/3 with an official 2 Years warranty, offering reliable coverage and factory technical support.
