SKU: 96011025

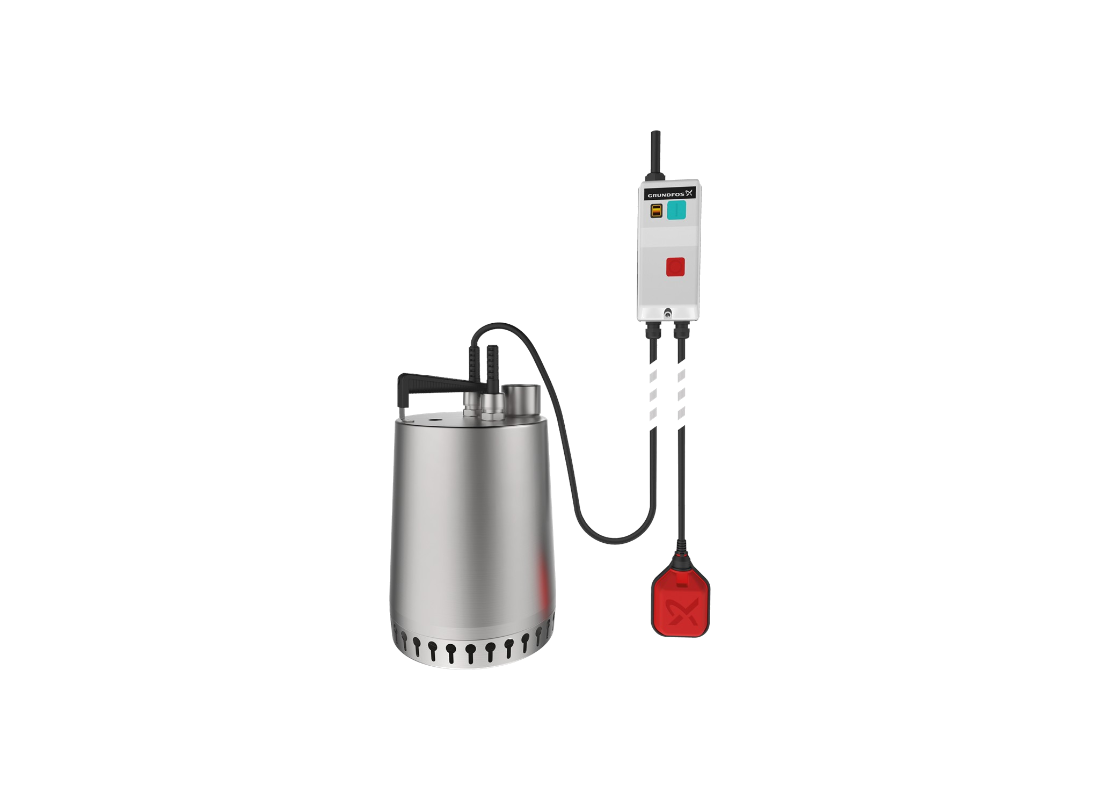

Grundfos Unilift AP12.40.04.A3 Stainless Steel Wastewater Pump for Pits with Semi-Open Impeller & & Float Switch
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Relying on hands-free automation is essential for managing unpredictable groundwater inside permanent commercial pits. Recognized as an automatic heavy duty, submersible stainless steel grey water pump, the Grundfos UNILIFT AP12.40.04.A3 continuously handles fluid accumulation. Powered by a three-phase connection, it expertly manages clean water, storm water, and slightly dirty run-off across light industrial settings.
The system relies on an efficient 3 x 415 V electrical configuration to guarantee smooth kinetic conversion. Pulling just 1.2 Amps, the 0.4 kW motor actively maintains high torque delivery without fluctuation. The hydraulic chamber forces a maximum flow of 233 L/Min securely through a 40 mm female outlet, efficiently establishing a 10 metre maximum head during upward extraction paths.
Internal blockage prevention is achieved through meticulous fluid pathway geometry. The unit utilizes a dynamic semi-open stainless steel impeller that allows solid particles up to 12 mm to wash through the volute safely. This clearance protects the main drive shaft from abrasive wear while ensuring the automatic system can reliably pump water down to a minimum level of 100 mm.
The completely sealed IP68 enclosure safely withstands underwater installations down to a depth of 7 metres. A built-in motor cooling jacket effectively regulates core temperatures, providing the flexibility to operate safely during partial exposure. Governed completely by an attached float switch, the pump processes 55°C wastewater and safely interacts with liquid pH levels between 4 and 10.
FEATURES
- Equipped with a tethered float switch to provide fully automated start and stop drainage operation.
- Supplied with a raw 10-metre power cable specifically tailored for hardwired three-phase commercial integration.
- Constructed from 304 stainless steel across all wetted parts to permanently resist industrial corrosion.
- Features an integrated motor cooling jacket for safe, extended operation during partial submersion.
- Utilizes a semi-open impeller design capable of continuously passing solid particles up to 12 mm in size.
- Rated with an IP68 enclosure class to safely permit underwater installations down to a 7-metre depth.
- Engineered to safely tolerate 55°C liquid temperatures, and up to 70°C for brief two-minute intervals.
SPECIFICATIONS
| Max Flow | 233 L/Min |
| Max Head | 10 m |
| Power | 0.4 kW / 415v |
| Rated Current | 1.2 Amps |
| Suitable For | Pit Drainage |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 55°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water flow and dynamic pressure can this pump generate?
Achieving strong system delivery, the Grundfos Unilift AP12.40.04.A3 develops a maximum flow rate of 233 L/Min and a maximum dynamic head of 10 m across its operating curve.
Does this pump run on standard household power or three-phase power?
Running on 415v power supplies, the Unilift AP12.40.04.A3 is driven by a 0.4 kW motor rated at 1.2 Amps.
Which casing and impeller materials provide long service life in this pump?
High-grade Stainless Steel components in the Unilift-AP12-40-04-A3 protect internal passages against corrosive fluid contact.
What primary water management tasks is this pump best suited for?
Primary tasks for the Unilift AP12 40 04 A3 include Drive unit torque in supports stainless steel wastewater drainage, stormwater catchment evacuation, and utility trench dewatering, delivering efficient water management across residential and rural systems.
What official warranty duration comes with this pump from purchase?
You receive a certified 2 Years manufacturer warranty with the Unilift/AP12/40/04/A3, giving you long-term protection and support.
