SKU: 96001729

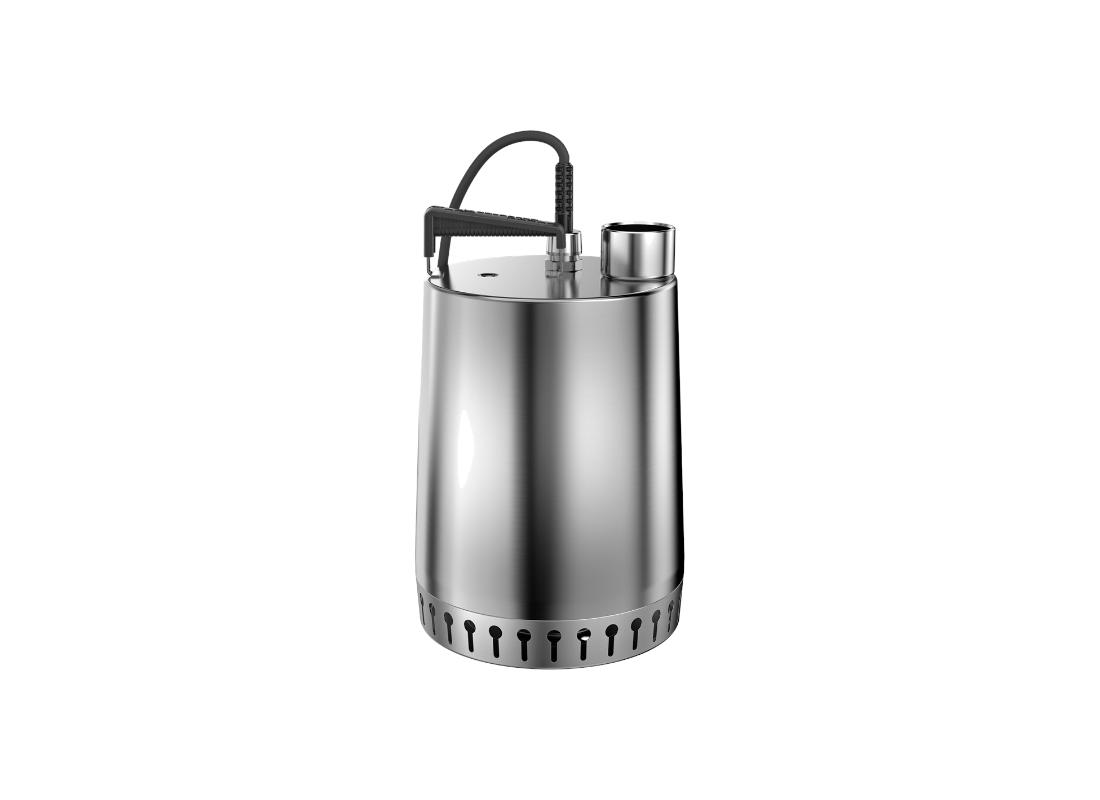

Grundfos Unilift AP12.40.06.1 Stainless Steel PSC Motor Wastewater Pump for Drainage with Semi-Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Consistent fluid extraction in demanding environments requires resilient, highly capable hardware. Evaluated explicitly as a heavy duty, submersible stainless steel grey water pump, the Grundfos UNILIFT AP12.40.06.1 safely relocates non-aggressive liquids. The system functions optimally as a permanent installation within plumbing trenches or as a portable manual asset for clearing clean and storm water from active residential and light industrial sites.
Power delivery is optimized to maintain robust displacement during continuous pumping shifts. Connected to a 1 x 240 V single-phase supply, the 0.6 kW core operates smoothly with a rated draw of 4.4 Amps. The internal volute forcefully pushes a 300 L/Min maximum flow directly through a 40 mm female connection. Countering steep pipeline gravity, the generated internal pressure reliably secures a 13 metre maximum head.
Managing heavily clouded run-off relies on an unrestrictive internal design that inherently rejects clogs. A durable semi-open stainless steel impeller securely handles the primary vortex, safely passing solid environmental debris up to 12 mm. This expanded tolerance allows the manual pump to aggressively agitate standing liquids, extracting fluid down to a strict 100 mm minimum pumping clearance without risking physical damage to the core.
Deep submersion is fully supported by an IP68 rating, guaranteeing safe underwater placement down to 7 metres. An intelligent motor cooling jacket allows the unit to efficiently dissipate heat and operate safely during long partial submersion periods. Fabricated entirely from 304 stainless steel, it comfortably processes pH 4 to 10 liquids alongside 55°C continuous temperature thresholds and 70°C two-minute peaks.
FEATURES
- Features a heavy-duty brass cable union to strictly isolate the primary electrical feed from ambient moisture intrusion.
- Rated with an internal Class F insulation threshold to safely tolerate heavy electrical load fluctuations.
- Utilizes a Permanent Split Capacitor (PSC) motor architecture to ensure smooth rotational startup sequences.
- Equipped with internal thermal protection circuitry that acts as an immediate safety cutoff to prevent coil burnout.
- Pre-installed with a 10-metre power supply cable terminating in a standard single-phase plug for immediate deployment.
- Certified with C-Tick and CE compliance markings to guarantee strict adherence to recognized environmental standards.
- System features a physical net weight of 12.0 kg, providing excellent stability against vibration during extraction cycles.
SPECIFICATIONS
| Max Flow | 300 L/Min |
| Max Head | 13 m |
| Power | 0.6 kW / 240v |
| Rated Current | 4.4 Amps |
| Suitable For | Grey Water Transfer |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 55°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What peak flow capacity and vertical elevation does this pump produce?
Output across system pipework enables the Grundfos Unilift AP12.40.06.1 to deliver up to 300 L/Min in flow and a maximum head of 13 m, depending on your pipe layout.
What motor power rating and running current power this pump?
Under full load conditions, the motor in the Unilift AP12.40.06.1 delivers 0.6 kW on a 240v line drawing 4.4 Amps.
What metallurgy is selected for the pump body to resist abrasive wear?
Built with a resilient Stainless Steel body, the Unilift-AP12-40-06-1 maintains material durability against fluid abrasion and wear.
Where is this pump typically deployed across residential and rural systems?
Routine operational tasks matching the Unilift AP12 40 06 1 encompass Factory engineering optimizes to support stainless steel wastewater drainage, stormwater catchment evacuation, and utility trench dewatering across connected networks.
What warranty protection and factory support cover this pump?
Grundfos backs the Unilift/AP12/40/06/1 with an official 2 Years warranty, offering reliable coverage and factory technical support.
