SKU: 96001652

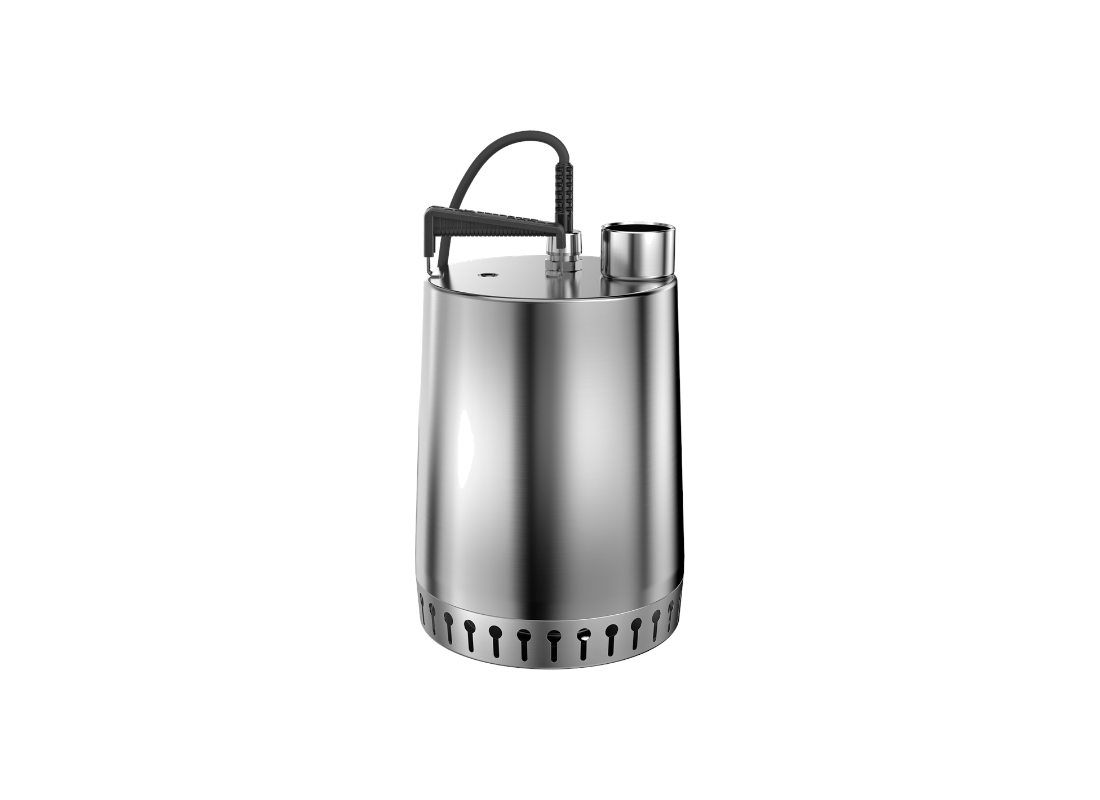

Grundfos Unilift AP12.40.06.3 Stainless Steel Three Phase Wastewater Pump for Trenches with Semi-Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Consistent fluid extraction in demanding environments requires resilient, highly capable hardware. Evaluated as a heavy duty, submersible stainless steel grey water pump, the Grundfos UNILIFT AP12.40.06.3 safely relocates non-aggressive liquids. Operating across three-phase industrial networks, the unit functions optimally as a permanent installation or as a portable asset for clearing clean and storm water from work sites.
Power delivery is heavily optimized to maintain robust displacement during continuous shifts. Connected to a 3 x 415 V supply, the 0.6 kW core operates smoothly with a rated draw of just 1.6 Amps. The internal volute forcefully pushes a 300 L/Min maximum flow through a 40 mm female connection. Countering steep pipeline gravity, the pressure reliably secures a 13 metre maximum head.
Managing heavily clouded run-off relies on an unrestrictive internal design that inherently rejects clogs. A durable semi-open stainless steel impeller securely handles the primary vortex, safely passing solid environmental debris up to 12 mm. This expanded tolerance allows the manual pump to aggressively agitate standing liquids, extracting fluid down to a strict 100 mm minimum pumping clearance.
Deep submersion is fully supported by an IP68 rating, guaranteeing safe underwater placement down to 7 metres. An intelligent motor cooling jacket surrounds the core, allowing the unit to efficiently dissipate heat and operate safely during long partial submersion periods. Fabricated from 304 stainless steel, it comfortably processes pH 4 to 10 liquids alongside 55°C temperature thresholds.
FEATURES
- Supplied with a raw 10-metre power cable specifically tailored for hardwired three-phase commercial integration.
- Constructed from premium 304 stainless steel across all wetted parts to permanently resist corrosion.
- Features an integrated motor cooling jacket for safe, extended operation during partial submersion.
- Utilizes a semi-open impeller design capable of continuously passing solid particles up to 12 mm in size.
- Rated with an IP68 enclosure class to safely permit underwater installations down to a 7-metre maximum depth.
- Certified to process a broad range of liquid chemistry, accommodating fluids with a pH value between 4 and 10.
- Engineered to safely tolerate 55°C liquid temperatures, and up to 70°C for brief two-minute intervals.
SPECIFICATIONS
| Max Flow | 300 L/Min |
| Max Head | 13 m |
| Power | 0.6 kW / 415v |
| Rated Current | 1.6 Amps |
| Suitable For | Continuous Drainage |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 55°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What peak flow capacity and vertical elevation does this pump produce?
Depending on operating conditions, the Grundfos Unilift AP12.40.06.3 delivers a maximum flow rate of 300 L/Min and a maximum head of 13 m.
What electrical connection and motor power run this pump?
Connecting across 415v lines, the Unilift AP12.40.06.3 draws approximately 1.6 Amps with an efficient 0.6 kW motor.
What metallurgy is selected for the pump body to resist abrasive wear?
Durable Stainless Steel construction gives the Unilift-AP12-40-06-3 exceptional structural strength and long-term protection against corrosive fluids.
How is the pump casing constructed to resist mechanical and fluid wear?
Wetted components on the Unilift AP12 40 06 3 are crafted from high-grade high-grade alloy to maintain physical integrity and resist abrasive wear.
What warranty protection and factory support cover this pump?
Purchase of the Unilift/AP12/40/06/3 includes an official 2 Years warranty from Grundfos, covering parts and manufacturing quality.
