SKU: 96023929

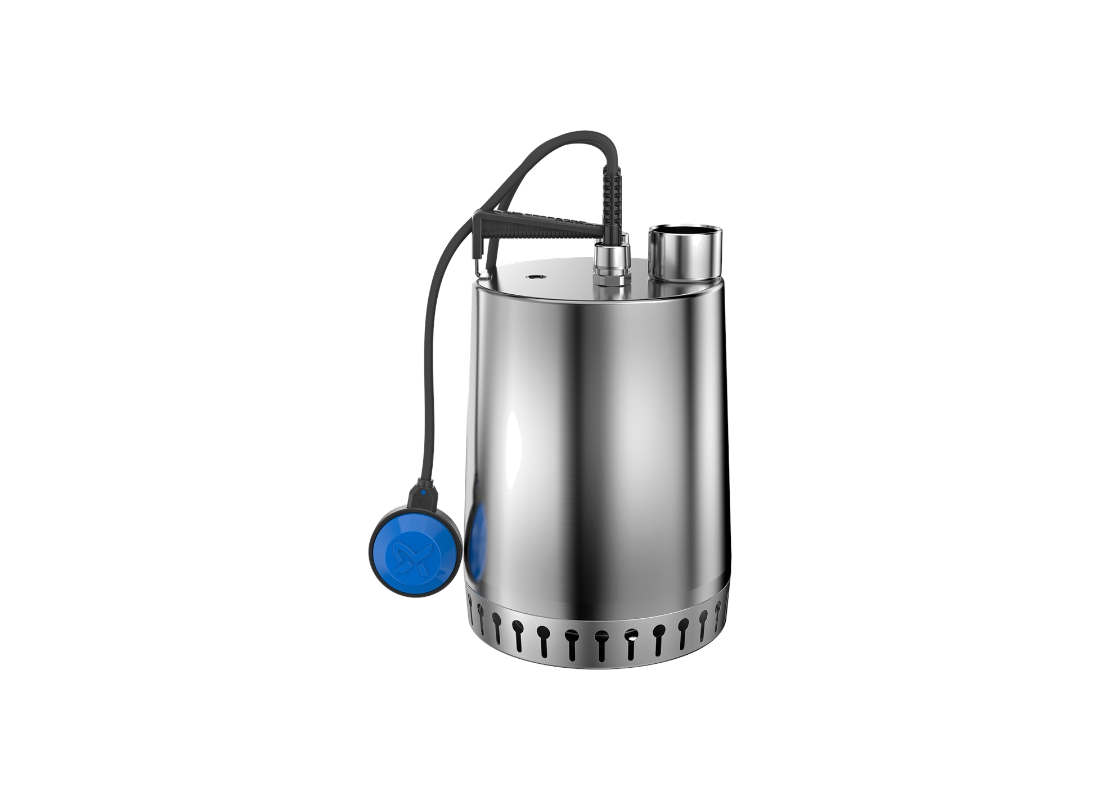

Grundfos Unilift AP12.40.06.A1 Stainless Steel Float Wastewater Pump for Pits with Semi-Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Managing sudden fluid accumulation across domestic and light industrial sumps requires dependable automated systems. Categorized as a heavy duty, submersible stainless steel grey water pump, the Grundfos UNILIFT AP12.40.06.A1 actively maintains dry conditions. Triggered by a built-in float switch, this single-phase unit efficiently clears clean water, storm water, and slightly dirty run-off from permanent trench installations.
Stable power allocation ensures immediate and forceful hydraulic action upon start-up. Wired into a standard 1 x 240 V grid, the highly efficient 0.6 kW motor sustains a strict 4.4 Amps rated current. The system creates a powerful 300 L/Min maximum flow output from the 40 mm female discharge port, easily overcoming vertical pipeline resistance to achieve a 13 metre maximum head during fluid transfer cycles.
Internal mechanical reliability is heavily dictated by the geometry of the fluid transit path. A precision-balanced semi-open stainless steel impeller expertly controls the central circulation, allowing solid 12 mm particles to successfully pass through the volute. This physical clearance restricts abrasive damage to the core components and safely draws the standing liquid down to a 100 mm minimum depth before the float triggers a shutdown.
An IP68 structural classification guarantees that the motor remains entirely protected at installation depths up to 7 metres. An integrated liquid cooling jacket continuously dissipates operating heat, allowing the automated system to securely pump while only partially submerged. It safely manages 55°C continuous environmental fluids, briefly tolerates 70°C for up to two minutes, and processes wastewater spanning a pH range from 4 to 10.
FEATURES
- Features a heavy-duty brass cable union to strictly isolate the primary electrical feed from ambient moisture intrusion.
- Rated with an internal Class F insulation threshold to safely tolerate heavy electrical load fluctuations.
- Utilizes a Permanent Split Capacitor (PSC) motor architecture to ensure smooth rotational startup sequences.
- Equipped with internal thermal protection circuitry that acts as an immediate safety cutoff to prevent coil burnout.
- Pre-installed with a 10-metre power supply cable terminating in a standard single-phase plug for immediate deployment.
- Certified with C-Tick and CE compliance markings to guarantee strict adherence to recognized environmental standards.
- Engineered with an 11.8 kg net weight, ensuring reliable placement within automated permanent pit setups.
SPECIFICATIONS
| Max Flow | 300 L/Min |
| Max Head | 13 m |
| Power | 0.6 kW / 240v |
| Rated Current | 4.4 Amps |
| Suitable For | Basement Drainage |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 55°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water volume and dynamic lift does this pump generate?
Achieving strong system delivery, the Grundfos Unilift AP12.40.06.A1 develops a maximum flow rate of 300 L/Min and a maximum dynamic head of 13 m across its operating curve.
How much electricity and current does this pump draw under load?
Running on 240v power supplies, the Unilift AP12.40.06.A1 is driven by a 0.6 kW motor rated at 4.4 Amps.
What materials protect the wetted parts against aggressive chemical attack?
High-grade Stainless Steel components in the Unilift-AP12-40-06-A1 protect internal passages against corrosive fluid contact.
What everyday water supply duties are best performed by this pump?
Primary tasks for the Unilift AP12 40 06 A1 include Hydraulic contours in focus on stainless steel wastewater drainage, stormwater catchment evacuation, and utility trench dewatering, delivering efficient water management across residential and rural systems.
How long is the official factory warranty for this pump?
You receive a certified 2 Years manufacturer warranty with the Unilift/AP12/40/06/A1, giving you long-term protection and support.
