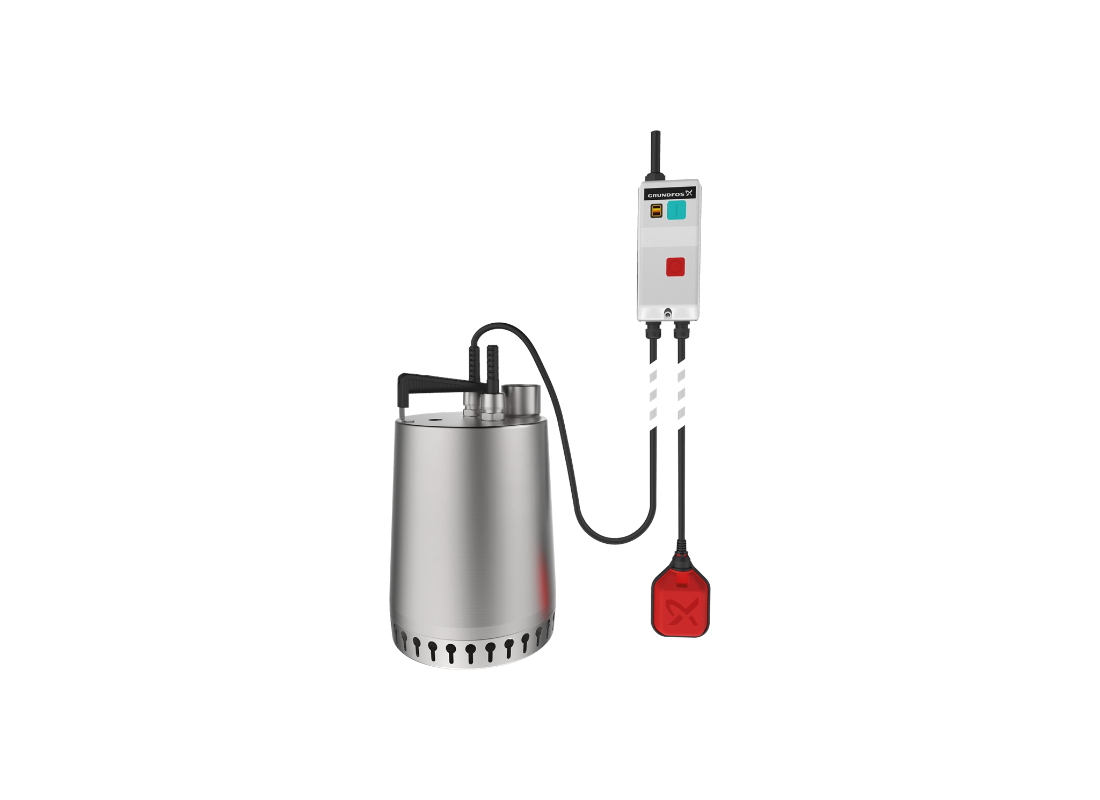

Grundfos Unilift AP12.40.06.A3 Stainless Steel Wastewater Pump for Catchments with Semi-Open Impeller & Float Switch
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Managing sudden fluid accumulation across commercial sumps requires dependable automated systems. Categorized as a heavy duty, submersible stainless steel grey water pump, the Grundfos UNILIFT AP12.40.06.A3 actively maintains dry conditions. Triggered automatically by rising fluid levels, this three-phase unit efficiently clears clean water, storm water, and slightly dirty run-off from permanent installations.
Stable industrial power allocation ensures immediate and forceful hydraulic action upon start-up. Wired into a 3 x 415 V grid, the highly efficient 0.6 kW motor sustains a strict 1.6 Amps rated current. The system creates a powerful 300 L/Min maximum flow output from the 40 mm female discharge port, easily overcoming vertical resistance to achieve a 13 metre maximum head.
Internal mechanical reliability is heavily dictated by the geometry of the fluid transit path. A precision-balanced semi-open stainless steel impeller expertly controls the central circulation, allowing solid 12 mm particles to successfully pass through the volute. This physical clearance restricts abrasive damage to the core components and safely draws the liquid down to a 100 mm minimum depth.
An IP68 structural classification guarantees that the motor remains entirely protected at installation depths up to 7 metres. An integrated liquid cooling jacket continuously dissipates operating heat, allowing the automated system to securely pump while only partially submerged. It safely manages 55°C environmental fluids and processes wastewater spanning a pH range from 4 to 10.
FEATURES
- Equipped with a tethered float switch to provide fully automated start and stop drainage operation.
- Supplied with a raw 10-metre power cable specifically tailored for hardwired three-phase commercial integration.
- Constructed from 304 stainless steel across all wetted parts to permanently resist industrial corrosion.
- Features an integrated motor cooling jacket for safe, extended operation during partial submersion.
- Utilizes a semi-open impeller design capable of continuously passing solid particles up to 12 mm in size.
- Rated with an IP68 enclosure class to safely permit underwater installations down to a 7-metre depth.
- Engineered to safely tolerate 55°C liquid temperatures, and up to 70°C for brief two-minute intervals.
SPECIFICATIONS
| Max Flow | 300 L/Min |
| Max Head | 13 m |
| Power | 0.6 kW / 415v |
| Rated Current | 1.6 Amps |
| Suitable For | Wastewater Handling |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 55°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water volume and dynamic lift does this pump generate?
For balanced pressure and flow, the Grundfos Unilift AP12.40.06.A3 provides up to 300 L/Min in delivery and up to 13 m in vertical lift.
What electrical voltage and motor kilowatt output drive this unit?
It operates on 415v power, with the Unilift AP12.40.06.A3 utilizing a durable 0.6 kW motor rated at 1.6 Amps.
What materials protect the wetted parts against aggressive chemical attack?
Wetted components on the Unilift-AP12-40-06-A3 are crafted from high-grade Stainless Steel to maintain physical integrity and resist abrasive wear.
What everyday water supply duties are best performed by this pump?
Everyday water management duties for the Unilift AP12 40 06 A3 focus on primarily for stainless steel wastewater drainage, stormwater catchment evacuation, and utility trench dewatering, providing reliable pumping performance.
How long is the official factory warranty for this pump?
Official factory backing for the Unilift/AP12/40/06/A3 includes an authentic 2 Years warranty for verified quality and peace of mind.
