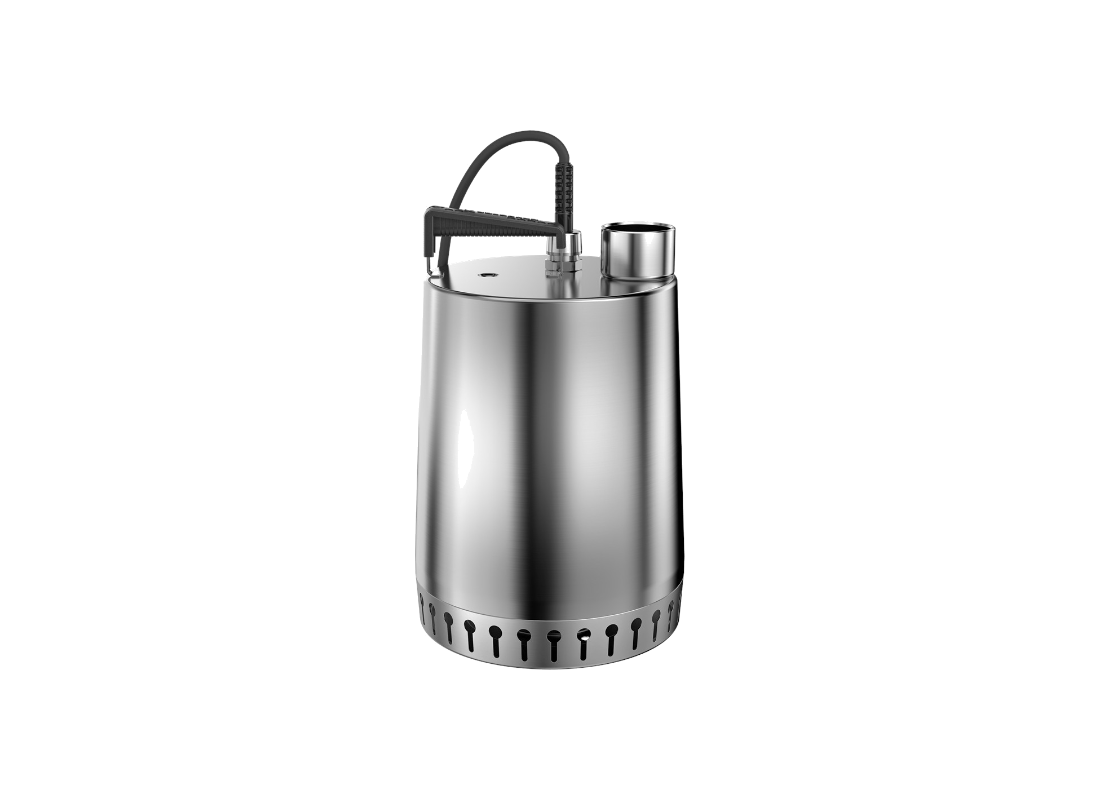

Grundfos Unilift AP12.40.08.1 Stainless Steel Cooling Jacket Wastewater Pump for Trenches with Semi-Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
High-volume extraction duties on light industrial sites require specifically engineered displacement hardware. Designated as a heavy duty, submersible stainless steel grey water pump, the Grundfos UNILIFT AP12.40.08.1 accurately serves this technical profile. Operating as a portable drainage asset or a permanent fixed transfer pump, it relocates vast volumes of clean water, storm water, and slightly dirty wastewater.
Taking advantage of an upgraded single-phase drive ensures maximum kinetic torque output without electrical lag. Wired to a 1 x 240 V supply, the robust 0.8 kW motor actively pulls 5.9 Amps to maintain strong internal pressure. This configuration delivers an intense 350 L/Min maximum flow directly out of the 40 mm female connection, securely establishing a 15 metre maximum head against vertical resistance.
Routing heavy volumes of slightly dirty run-off requires an expanded internal transit loop. A resilient semi-open stainless steel impeller aggressively commands the main flow, accommodating the continuous passage of solid environmental debris up to 12 mm. By effectively widening the hydraulic clearance, the manual pump avoids rotational jams and successfully pulls standing pools down to a 100 mm depth without stalling the shaft.
Designed to withstand rigorous submerged conditions, the IP68-rated motor operates securely at a 7-metre maximum installation depth. A surrounding motor cooling jacket intelligently utilizes passing fluid to reject excess thermal heat, permitting safe operation during extended partial submersion. Fabricated fully from 304 stainless steel, it easily commands 55°C liquids (up to 70°C for two minutes) and processes pH 4 to 10 chemical ranges.
FEATURES
- Features a heavy-duty brass cable union to strictly isolate the primary electrical feed from ambient moisture intrusion.
- Rated with an internal Class F insulation threshold to safely tolerate heavy electrical load fluctuations.
- Utilizes a Permanent Split Capacitor (PSC) motor architecture to ensure smooth rotational startup sequences.
- Equipped with internal thermal protection circuitry that acts as an immediate safety cutoff to prevent coil burnout.
- Pre-installed with a 10-metre power supply cable terminating in a standard single-phase plug for immediate deployment.
- Certified with C-Tick and CE compliance markings to guarantee strict adherence to recognized environmental standards.
- Structurally designed with a 13.2 kg net weight to anchor the unit safely during high-velocity extraction operations.
SPECIFICATIONS
| Max Flow | 350 L/Min |
| Max Head | 15 m |
| Power | 0.8 kW / 240v |
| Rated Current | 5.9 Amps |
| Suitable For | Storm Water Removal |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 55°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What fluid throughput and pressure head are developed by this pump?
Depending on operating conditions, the Grundfos Unilift AP12.40.08.1 delivers a maximum flow rate of 350 L/Min and a maximum head of 15 m.
How much power does the motor consume during standard operation?
Connecting across 240v lines, the Unilift AP12.40.08.1 draws approximately 5.9 Amps with an efficient 0.8 kW motor.
Is the pump body built to withstand harsh and corrosive liquids?
Durable Stainless Steel construction gives the Unilift-AP12-40-08-1 exceptional structural strength and long-term protection against corrosive fluids.
Which casing and impeller materials provide long service life in this pump?
Wetted components on the Unilift AP12 40 08 1 are crafted from high-grade high-grade alloy to maintain physical integrity and resist abrasive wear.
What manufacturer warranty coverage is included with this pump?
Purchase of the Unilift/AP12/40/08/1 includes an official 2 Years warranty from Grundfos, covering parts and manufacturing quality.
