SKU: 96001791

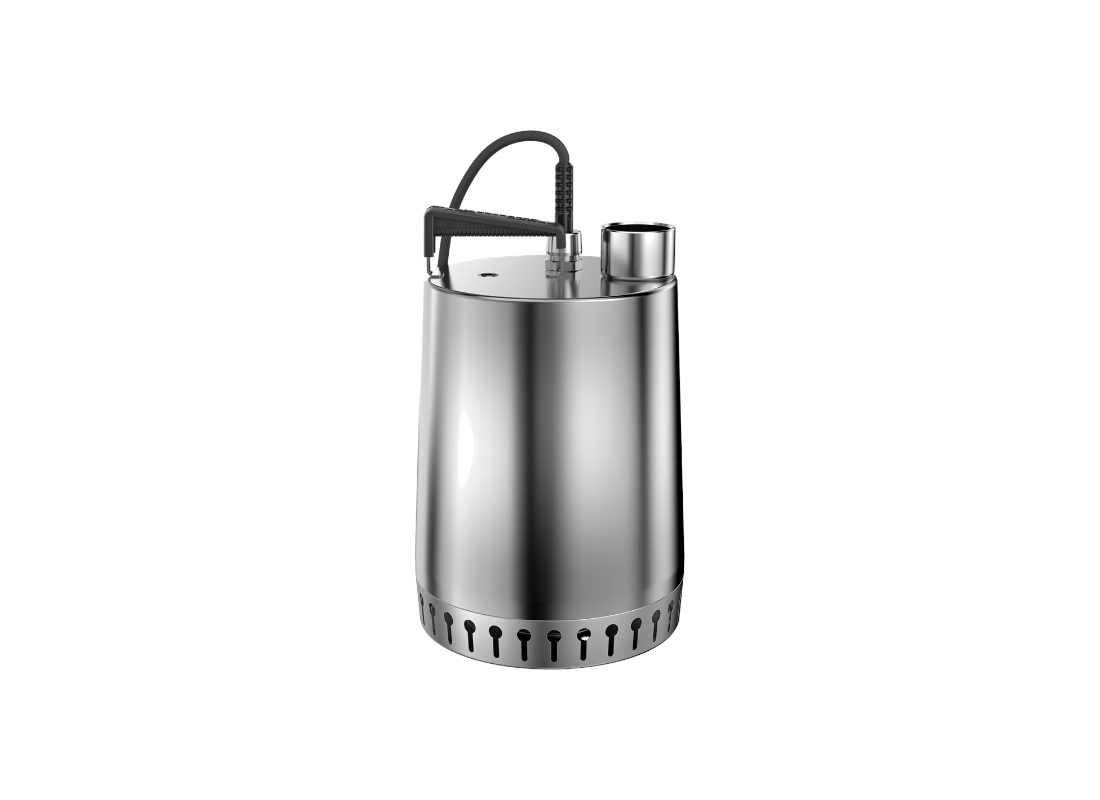

Grundfos Unilift AP12.40.08.3 Stainless Steel Three Phase Wastewater Pump for Sumps with Semi-Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
High-volume extraction duties on light industrial sites require specifically engineered displacement hardware. Designated as a heavy duty, submersible stainless steel grey water pump, the Grundfos UNILIFT AP12.40.08.3 accurately serves this technical profile. Operating as a portable drainage asset or a permanent fixed transfer pump, it easily relocates vast volumes of clean water and storm water.
Taking advantage of three-phase energy distribution ensures maximum kinetic torque output without dangerous electrical lag. Wired to a 3 x 415 V supply, the upgraded 0.8 kW motor actively pulls 2.1 Amps to maintain strong internal pressure. This configuration delivers an intense 350 L/Min maximum flow out of the 40 mm female connection, securely establishing a 15 metre maximum head.
Routing heavy volumes of slightly dirty run-off requires an expanded internal transit loop. A resilient semi-open stainless steel impeller aggressively commands the main flow, accommodating the continuous passage of solid environmental debris up to 12 mm. By effectively widening the hydraulic clearance, the manual pump avoids rotational jams and successfully pulls standing pools down to a 100 mm depth.
Designed specifically to withstand rigorous submerged conditions, the IP68-rated motor operates securely at a 7-metre maximum installation depth. A surrounding motor cooling jacket intelligently utilizes passing fluid to reject excess thermal heat, permitting safe operation during extended partial submersion. Fabricated fully from 304 stainless steel, it easily commands 55°C liquids between pH 4 and 10.
FEATURES
- Supplied with a raw 10-metre power cable specifically tailored for hardwired three-phase commercial integration.
- Constructed from premium 304 stainless steel across all wetted parts to permanently resist corrosion.
- Features an integrated motor cooling jacket for safe, extended operation during partial submersion.
- Utilizes a semi-open impeller design capable of continuously passing solid particles up to 12 mm in size.
- Rated with an IP68 enclosure class to safely permit underwater installations down to a 7-metre maximum depth.
- Certified to process a broad range of liquid chemistry, accommodating fluids with a pH value between 4 and 10.
- Engineered to safely tolerate 55°C liquid temperatures, and up to 70°C for brief two-minute intervals.
SPECIFICATIONS
| Max Flow | 350 L/Min |
| Max Head | 15 m |
| Power | 0.8 kW / 415v |
| Rated Current | 2.1 Amps |
| Suitable For | Industrial Drainage |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 55°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What fluid throughput and pressure head are developed by this pump?
You get up to 350 L/Min in flow and a maximum head of 15 m from the Grundfos Unilift AP12.40.08.3, depending on operating conditions.
What motor power rating and running current power this pump?
Powered by a dedicated 0.8 kW motor, the Unilift AP12.40.08.3 connects to 415v mains power with a rated current draw of 2.1 Amps.
Is the pump body built to withstand harsh and corrosive liquids?
Manufactured with quality materials, the Unilift-AP12-40-08-3 incorporates Stainless Steel for dependable longevity and resistance to fluid erosion.
Which casing and impeller materials provide long service life in this pump?
Structural defense on the Unilift AP12 40 08 3 is provided by a rugged high-grade alloy casing designed to withstand heavy mechanical stress.
What manufacturer warranty coverage is included with this pump?
Factory coverage on the Unilift/AP12/40/08/3 provides an authentic 2 Years warranty for dependable long-term reliability.
