Roll over image to zoom
SKU: 96023930

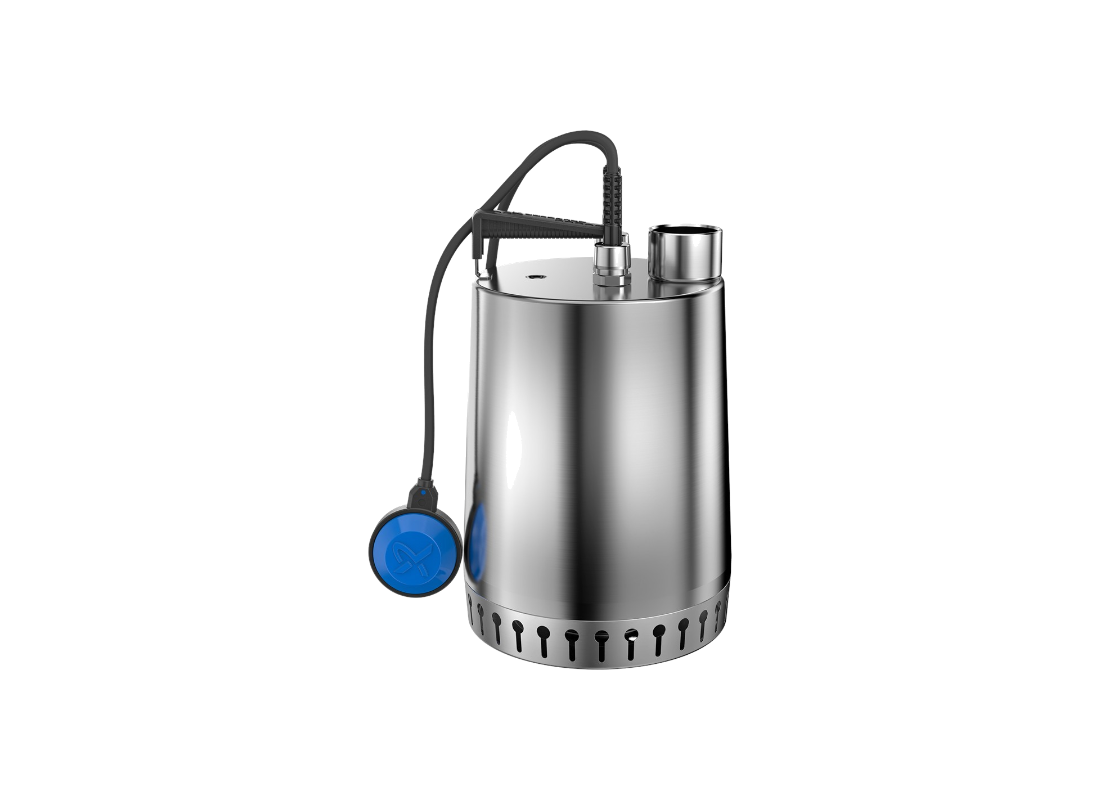

Grundfos Unilift AP12.40.08.A1 Stainless Steel Auto Wastewater Pump for Transfer with Semi-Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Establishing an autonomous fluid transfer system is critical for safeguarding property against unexpected accumulation. Recognized as a heavy duty, submersible stainless steel grey water pump, the Grundfos UNILIFT AP12.40.08.A1 provides consistent automatic clearance. It is tailored for permanent installations requiring rapid evacuation of clean water, storm water, and slightly dirty wastewater across domestic and light industrial sites.
Precision power allocation ensures large volumes are shifted instantly upon float switch activation. Powered by a 1 x 240 V input, the 0.8 kW drive reliably demands 5.9 Amps during full load operation. The internal hydraulic structure aggressively channels a maximum flow of 350 L/Min through a 40 mm female outlet. Countering immense vertical pipeline resistance, the automated system achieves a 15 metre maximum head.
Operating within unpredictable underground environments requires robust solids handling. A meticulously balanced semi-open stainless steel impeller forcefully drives the primary vortex, stripping away settled sediment. By maintaining wide internal clearances, the chamber safely permits the transit of 12 mm solid matter to severely limit internal jamming, while drawing the liquid down to a 100 mm minimum depth.
Engineered with an IP68 classification, the completely sealed motor withstands submerged environments down to a 7-metre depth. A built-in cooling jacket regulates internal thermals to facilitate extended pumping during partial liquid exposure. Constructed entirely from 304 stainless steel, it processes 55°C continuous liquids (peaking at 70°C for two minutes) and accommodates ambient fluid pH levels strictly between 4 and 10.
FEATURES
- Features a heavy-duty brass cable union to strictly isolate the primary electrical feed from ambient moisture intrusion.
- Rated with an internal Class F insulation threshold to safely tolerate heavy electrical load fluctuations.
- Utilizes a Permanent Split Capacitor (PSC) motor architecture to ensure smooth rotational startup sequences.
- Equipped with internal thermal protection circuitry that acts as an immediate safety cutoff to prevent coil burnout.
- Pre-installed with a 10-metre power supply cable terminating in a standard single-phase plug for immediate deployment.
- Certified with C-Tick and CE compliance markings to guarantee strict adherence to recognized environmental standards.
- Features a 13.4 kg net weight to prevent physical shifting during automated, unattended permanent sump extraction.
SPECIFICATIONS
| Max Flow | 350 L/Min |
| Max Head | 15 m |
| Power | 0.8 kW / 240v |
| Rated Current | 5.9 Amps |
| Suitable For | Wastewater Transfer |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 55°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum water flow rate and head pressure of this pump?
For balanced pressure and flow, the Grundfos Unilift AP12.40.08.A1 provides up to 350 L/Min in delivery and up to 15 m in vertical lift.
What electrical supply parameters are needed for this pump motor?
It operates on 240v power, with the Unilift AP12.40.08.A1 utilizing a durable 0.8 kW motor rated at 5.9 Amps.
What materials make this pump durable against corrosion and wear?
Wetted components on the Unilift-AP12-40-08-A1 are crafted from high-grade Stainless Steel to maintain physical integrity and resist abrasive wear.
What metallurgy is selected for the pump body to resist abrasive wear?
Manufactured with quality materials, the Unilift AP12 40 08 A1 incorporates high-grade alloy for dependable longevity and resistance to fluid erosion.
What warranty coverage applies to this pump for long-term peace of mind?
Official factory backing for the Unilift/AP12/40/08/A1 includes an authentic 2 Years warranty for verified quality and peace of mind.
