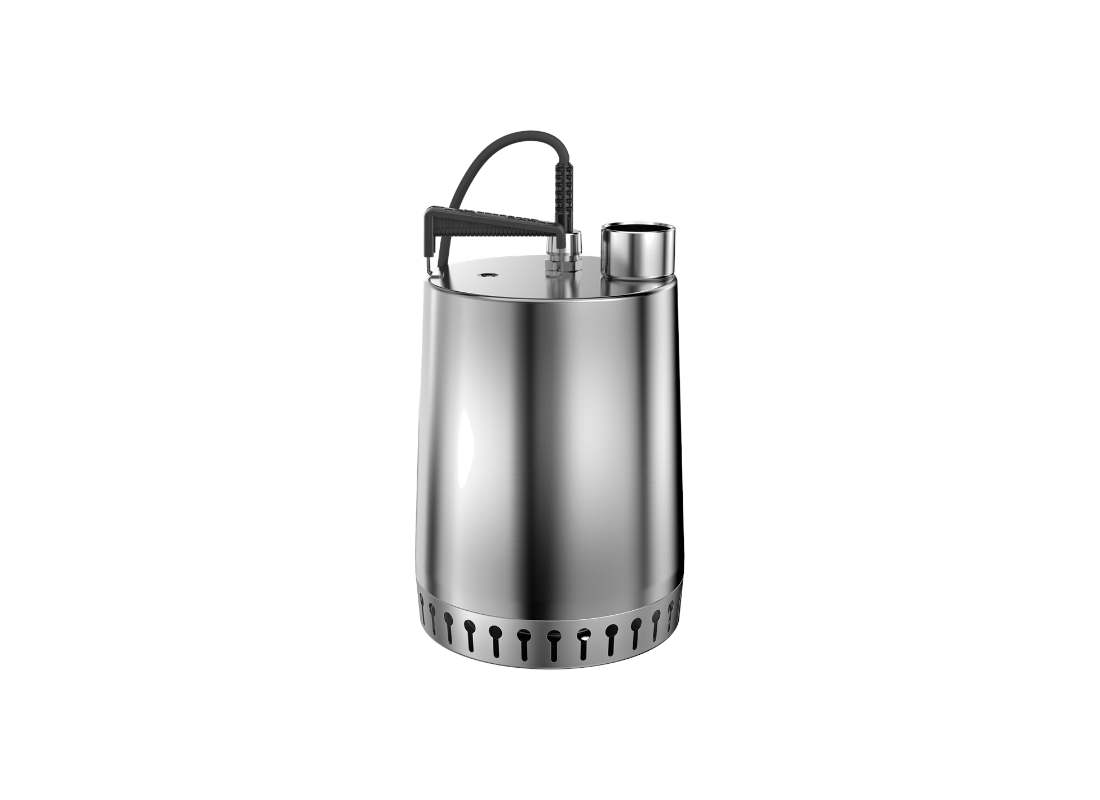

Grundfos Unilift AP12.50.11.1 Stainless Steel PSC Motor Wastewater Pump for Catchments with Semi-Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Operating explicitly as a heavy duty, submersible stainless steel grey water pump, the Grundfos UNILIFT AP12.50.11.1 is engineered for reliable fluid transfer. It is structurally designed to handle clean water, storm water, and slightly dirty wastewater across both domestic and light industrial applications. The unit offers flexible deployment capabilities, functioning efficiently within permanent plumbing installations or acting as a portable drainage asset for temporary fluid relocation.
Hydraulic performance is driven by a highly efficient 1.1 kW motor mechanism. Powered via a 1 x 240 V single-phase electrical supply, the robust core operates with a rated draw of 8.5 Amps. Fluid is discharged through a 50 mm female threaded connection, allowing the internal volute to securely output a maximum flow of 500 L/Min. During vertical extraction cycles, the unit effectively scales the fluid column to establish a 17 metre maximum head.
Continuous operation in dirty environments requires a fortified internal circulation pathway. The pump incorporates a precision semi-open stainless steel impeller that allows the safe transit of solid environmental particles up to 12 mm in diameter. This specific geometric clearance prevents suspended matter from causing rotational jams while permitting the system to safely draw standing water down to a 100 mm minimum pumping level.
Built entirely from premium 304 stainless steel, the IP68-rated motor permits submerged underwater installations down to a 7-metre maximum depth. An integrated motor cooling jacket consistently dissipates internal heat, allowing for extended continuous operation even when only partially submerged. The pump safely processes fluids with a pH between 4 and 10 and handles liquid temperatures up to 55°C, with a brief tolerance of 70°C for two-minute intervals.
FEATURES
- Constructed entirely from premium 304 stainless steel across all wetted components to resist corrosion.
- Features an integrated motor cooling jacket for safe, extended operation during partial submersion.
- Utilizes a semi-open impeller design capable of continuously passing solid particles up to 12 mm in size.
- Rated with an IP68 enclosure class to safely permit underwater installations down to a 7-metre maximum depth.
- Certified to process a broad range of liquid chemistry, accommodating fluids with a pH value between 4 and 10.
- Capable of continuous extraction down to a minimum pumping level of exactly 100 mm.
- Engineered to safely tolerate 55°C liquid temperatures, and up to 70°C for brief two-minute intervals.
SPECIFICATIONS
| Max Flow | 500 L/Min |
| Max Head | 17 m |
| Power | 1.1 kW / 240v |
| Rated Current | 8.5 Amps |
| Suitable For | Deep Pit Drainage |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 55°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water flow and vertical lift can I get from this pump?
You get up to 500 L/Min in flow and a maximum head of 17 m from the Grundfos Unilift AP12.50.11.1, depending on operating conditions.
What voltage supply and motor power does this pump need?
Powered by a dedicated 1.1 kW motor, the Unilift AP12.50.11.1 connects to 240v mains power with a rated current draw of 8.5 Amps.
What materials are used to construct the pump casing and impeller?
Manufactured with quality materials, the Unilift-AP12-50-11-1 incorporates Stainless Steel for dependable longevity and resistance to fluid erosion.
What property water management tasks match this pump?
Suited for diverse installations, the Unilift AP12 50 11 1 performs stainless steel wastewater drainage, stormwater catchment evacuation, and utility trench dewatering with dependable fluid propulsion.
How many years of warranty coverage come with this Grundfos pump?
Factory coverage on the Unilift/AP12/50/11/1 provides an authentic 2 Years warranty for dependable long-term reliability.
