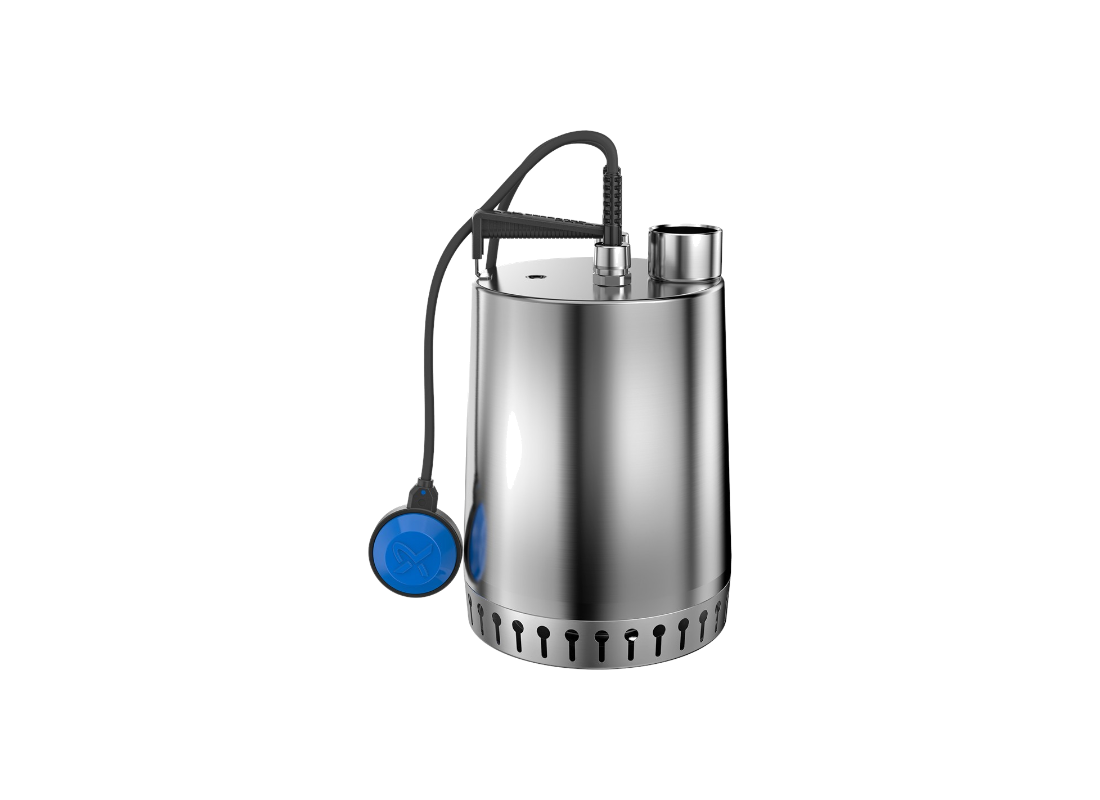

Grundfos Unilift AP12.50.11.A1 Stainless Steel Float Wastewater Pump for Basements with Semi-Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Functioning as an automated heavy duty, submersible stainless steel grey water pump, the Grundfos UNILIFT AP12.50.11.A1 provides autonomous fluid management. It is structurally tailored for handling clean water, storm water, and slightly dirty wastewater across domestic and light industrial sites. The unit features an integrated float switch for hands-free operation, making it ideal for permanent sump installations or portable temporary drainage tasks.
Consistent hydraulic displacement relies on a heavily optimized 1.1 kW motor core. Running directly on a 1 x 240 V single-phase grid, the system draws a rated 8.5 Amps under full load. The internal mechanics forcefully push liquids out of a 50 mm female connection, successfully maintaining an impressive maximum flow of 500 L/Min. When pumping against vertical gradients, the unit reliably achieves a 17 metre maximum head.
Managing cloudy environmental run-off necessitates a wide internal tolerance for debris. A heavily balanced semi-open stainless steel impeller controls the main fluid vortex, allowing solid matter up to 12 mm to transit safely through the volute. This strategic clearance limits abrasive wear against the central shaft while maintaining the ability to drain standing pools down to a 100 mm minimum clearance level.
Complete environmental sealing ensures an IP68 classification, safely protecting the motor down to a 7-metre underwater depth. An intelligent cooling jacket surrounds the drive, regulating core thermals to facilitate continuous, safe pumping during partial fluid exposure. Dictated by the automatic float trigger, the pump effortlessly manages 55°C liquids and withstands ambient fluids between pH 4 and 10.
FEATURES
- Equipped with a tethered float switch to provide fully automated start and stop drainage operation.
- Constructed from 304 stainless steel across all wetted parts to permanently resist industrial corrosion.
- Features an integrated motor cooling jacket for safe, extended operation during partial submersion.
- Utilizes a semi-open impeller design capable of continuously passing solid particles up to 12 mm in size.
- Rated with an IP68 enclosure class to safely permit underwater installations down to a 7-metre maximum depth.
- Certified to process a broad range of liquid chemistry, accommodating fluids with a pH value between 4 and 10.
- Engineered to safely tolerate 55°C liquid temperatures, and up to 70°C for brief two-minute intervals.
SPECIFICATIONS
| Max Flow | 500 L/Min |
| Max Head | 17 m |
| Power | 1.1 kW / 240v |
| Rated Current | 8.5 Amps |
| Suitable For | Light Industrial Drainage |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 55°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What kind of water volume and pressure head does this pump provide?
Rated for dependable performance, the Grundfos Unilift AP12.50.11.A1 provides up to 500 L/Min in flow and up to 17 m in head, depending on operating conditions.
What kind of power supply does this pump require to run?
Electrical power for the Unilift AP12.50.11.A1 requires a 240v connection, driving an efficient 1.1 kW motor that draws 8.5 Amps.
How is the pump casing constructed to resist mechanical and fluid wear?
Structural defense on the Unilift-AP12-50-11-A1 is provided by a rugged Stainless Steel casing designed to withstand heavy mechanical stress.
Where is this pump commonly installed and utilized?
Water management applications designate the Unilift AP12 50 11 A1 for Purchasers rely on to provide stainless steel wastewater drainage, stormwater catchment evacuation, and utility trench dewatering, supporting consistent property operation.
Does this pump include an official manufacturer warranty?
Backed by Grundfos engineering, the Unilift/AP12/50/11/A1 carries an official 2 Years warranty with genuine manufacturer support.
