SKU: 96023933

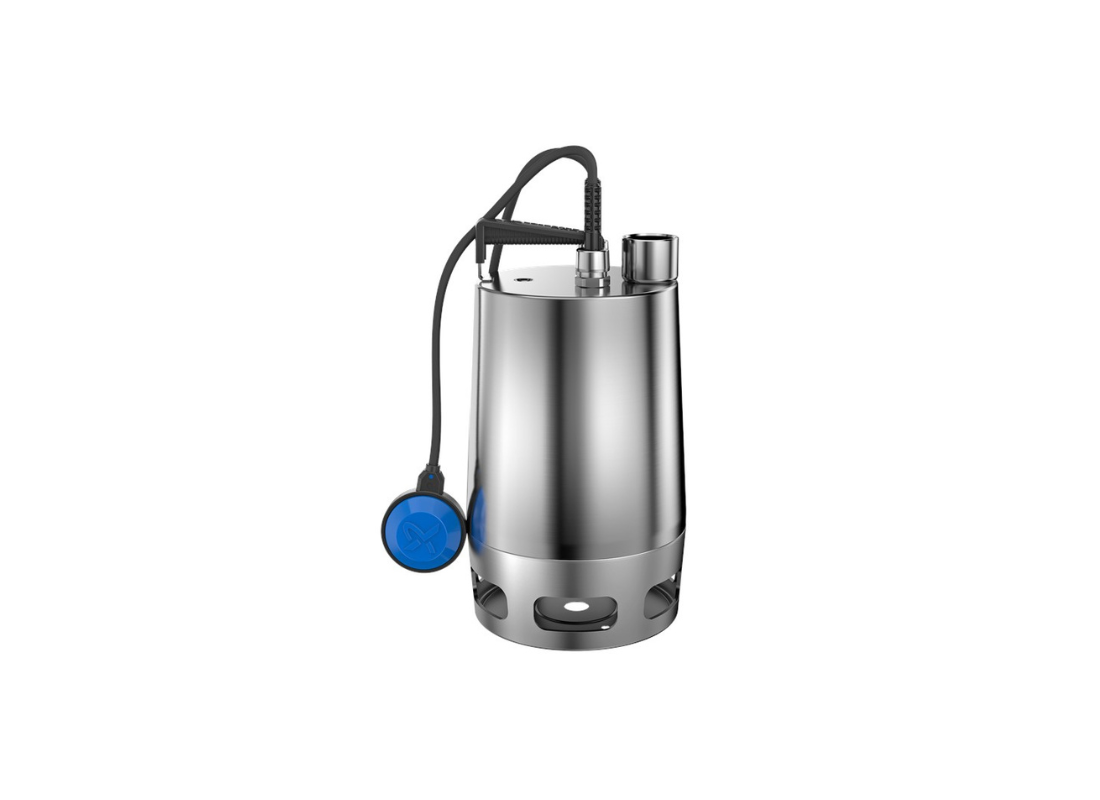

Grundfos UNILIFT AP35.40.08.A1V Stainless Steel Wastewater Pump for Light Industry with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Built with premium AISI 304 steel, the UNILIFT AP35.40.08.A1V stainless steel effluent pump delivers immense resilience in harsh environments. Deployed permanently or portably, the housing resists corrosion while clearing dense particles. It reliably displaces untreated wastewater and fibrous liquids without any mechanical fatigue.
Maximizing life during continuous immersion, this platform utilizes thermal overload protection to regulate internal temperatures. The enclosed motor features an intermediate oil chamber with non-toxic oil to lubricate the double shaft seal. A cooling jacket utilizes pumped liquid to continuously extend the ball bearings' longevity.
Fluid mechanics are driven by a VORTEX impeller, calibrated for a 35 mm free passage of solid particles. Minimizing hydraulic resistance, the system achieves a massive flow of 300 L/Min alongside an 11 m maximum head. The vertical single-stage housing incorporates a discharge port to maintain an optimal fluid velocity profile.
For rapid deployment, the unit features a 10 m mains cable equipped with a glass sealing compound to prevent humidity penetration. A specialized float switch ensures automated functionality by dynamically responding to rising liquid levels. Shielded by an IP68 enclosure, this pump delivers total reliability for effluent control.
Features- Engineered with a power input rating of exactly 1.2 kW for sustained performance.
- Features a precisely rated speed of 2795 rpm within the core motor drive.
- Incorporates a 16 µF/400 V run capacitor to stabilize electrical transmission.
- Operates efficiently with an exceptional 0.98 Cos phi power factor specification.
- Includes a highly durable Brass CW602N C35330 internal cable union fitting.
- Classified with an IP68 enclosure rating for absolute submersion protection.
SPECIFICATIONS
| Max Flow | 300 L/Min |
| Max Head | 11 m |
| Power | 0.7 kW / 240v |
| Rated Current | 5.5 Amps |
| Suitable For | Untreated Wastewater |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 55°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum water flow rate and head pressure of this pump?
Achieving strong system delivery, the Grundfos UNILIFT AP35.40.08.A1V develops a maximum flow rate of 300 L/Min and a maximum dynamic head of 11 m across its operating curve.
What kind of power supply does this pump require to run?
Running on 240v power supplies, the UNILIFT AP35.40.08.A1V is driven by a 0.7 kW motor rated at 5.5 Amps.
What materials make this pump durable against corrosion and wear?
High-grade Stainless Steel components in the UNILIFT-AP35-40-08-A1V protect internal passages against corrosive fluid contact.
What primary fluid transfer and circulation roles are designated for this pump?
Primary tasks for the UNILIFT AP35 40 08 A1V include Backed through versatile engineering, supports stormwater pit drainage, greywater trench evacuation, and suspended soft solids passage, delivering efficient water management across residential and rural systems.
What warranty coverage applies to this pump for long-term peace of mind?
You receive a certified 2 Years manufacturer warranty with the UNILIFT/AP35/40/08/A1V, giving you long-term protection and support.
