SKU: 96023935

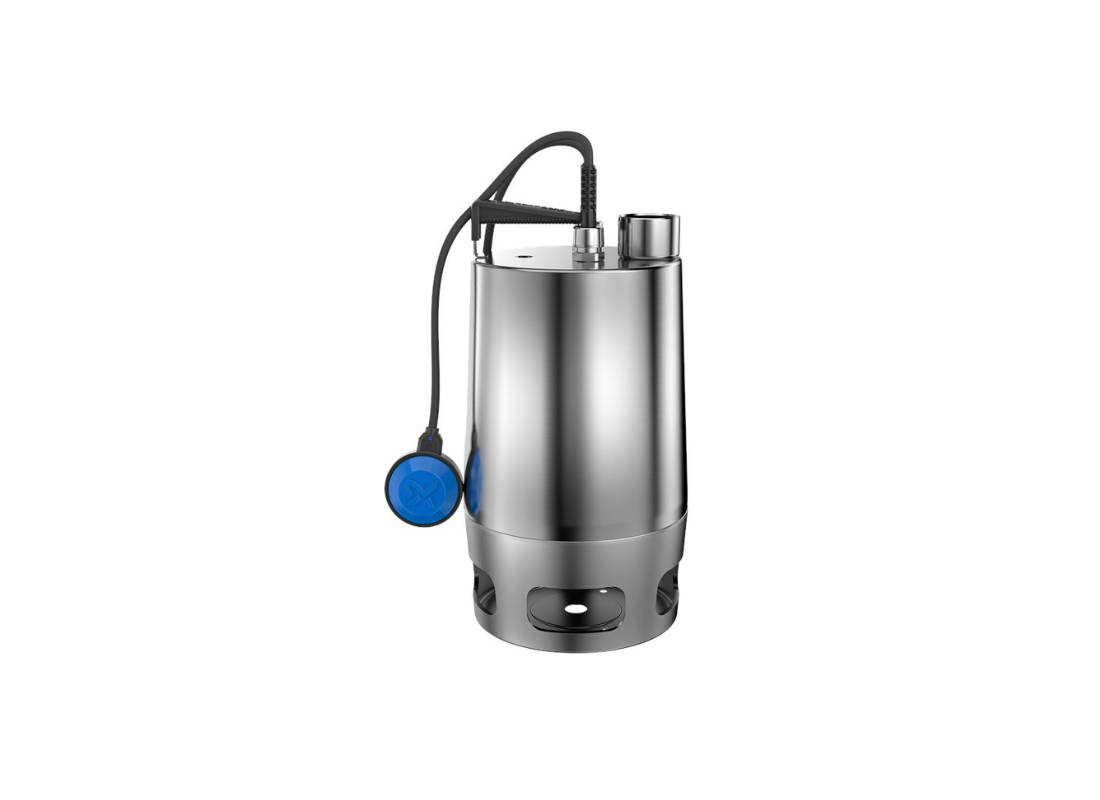

Grundfos UNILIFT AP50.50.11.A1V Stainless Steel Effluent Pump for Domestic Drainage with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Addressing cost scaling and safety containment, the UNILIFT AP50.50.11.A1V stainless steel effluent pump delivers sustainable fluid transfer. Used in permanent installations or portably, the housing mitigates wear while clearing dense particles. It rapidly displaces massive volumes of untreated wastewater without ever compromising overall structural integrity.
To enhance longevity during total submersion, this unit employs thermal overload protection to securely stabilize internal temperatures. The enclosed motor utilizes an intermediate oil chamber with non-toxic oil to lubricate the shaft seal. A specialized cooling jacket channels pumped liquid around the stator to safely preserve the ball bearings.
Hydraulic efficiency is maintained by a VORTEX impeller, engineered to permit a 50 mm free passage for solid debris. Minimizing internal resistance, the unit achieves an extreme flow of 499 L/Min and a 12 m maximum head. The single-stage housing incorporates a precision discharge port to safely optimize energy utilization.
Ensuring rapid readiness, the system includes a 10 m mains cable featuring a glass sealing compound to entirely reject humidity penetration. A specialized float switch provides automated functionality by quickly detecting rising fluid thresholds. Shielded by an IP68 enclosure rating, this pump guarantees absolute security for effluent applications.
Features- Engineered with a powerful 1.6 kW power input rating for high-load operations.
- Designed to successfully pass solid waste particles up to 50 mm in diameter.
- Incorporates a robust 20 µF/400 V run capacitor for electrical stability.
- Rated for continuous performance with a steady 2800 rpm motor speed.
- Equipped with a reliable Brass CW602N C35330 structural cable union.
- Features an internal 0.92 Cos phi power factor specification.
SPECIFICATIONS
| Max Flow | 499 L/Min |
| Max Head | 12 m |
| Power | 1.1 kW / 240v |
| Rated Current | 8 Amps |
| Suitable For | Surface Water |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 55°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What kind of water volume and pressure head does this pump provide?
For balanced pressure and flow, the Grundfos UNILIFT AP50.50.11.A1V provides up to 499 L/Min in delivery and up to 12 m in vertical lift.
Does this pump run on standard household power or three-phase power?
It operates on 240v power, with the UNILIFT AP50.50.11.A1V utilizing a durable 1.1 kW motor rated at 8 Amps.
How is the pump casing constructed to resist mechanical and fluid wear?
Wetted components on the UNILIFT-AP50-50-11-A1V are crafted from high-grade Stainless Steel to maintain physical integrity and resist abrasive wear.
Where is this pump commonly installed and utilized?
Everyday water management duties for the UNILIFT AP50 50 11 A1V focus on Connected across utility pipework, focuses on stormwater pit drainage, greywater trench evacuation, and suspended soft solids passage, providing reliable pumping performance.
Does this pump include an official manufacturer warranty?
Official factory backing for the UNILIFT/AP50/50/11/A1V includes an authentic 2 Years warranty for verified quality and peace of mind.
