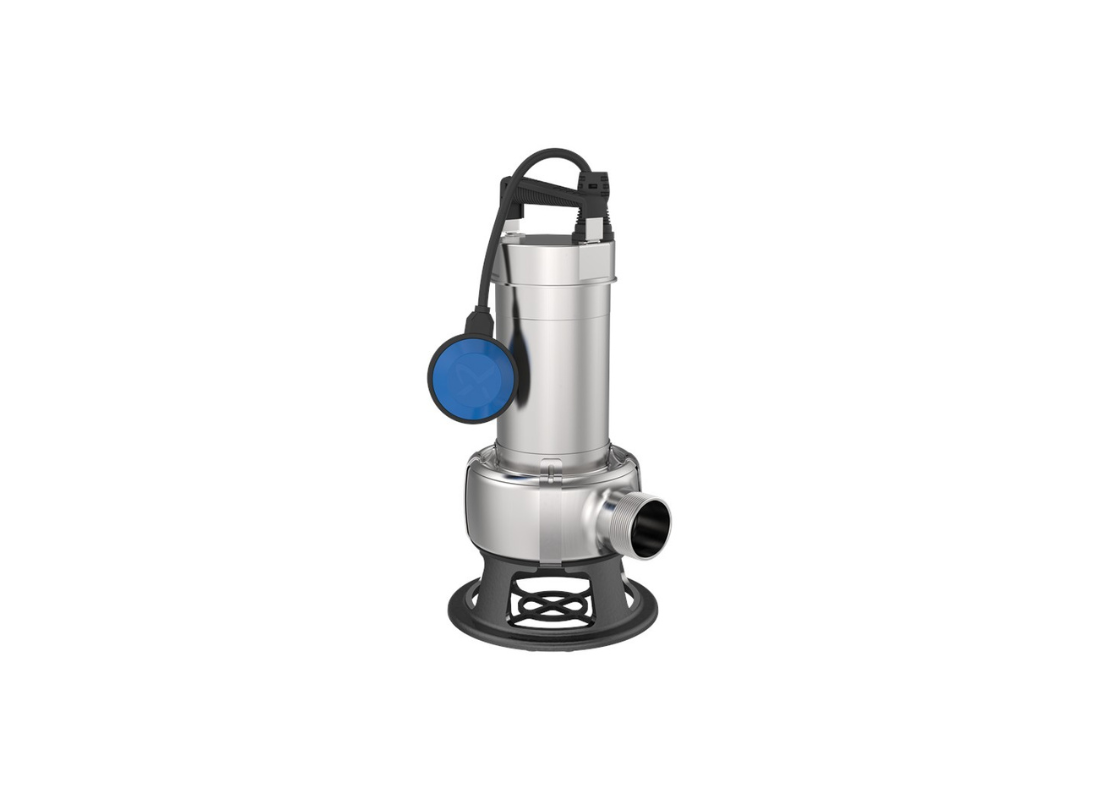

Grundfos UNILIFT AP50B.50.11.A1V Stainless Steel Submersible Drainage Pump for Groundwater with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Optimized for continuous runtime efficiency, the UNILIFT AP50B.50.11.A1V Unilift AP 35B and 50B pumps are single stage pumps with a vortex impeller that reduce maintenance overhead across demanding extraction environments. Deployed primarily for aggressive surface water and wastewater drainage, this submersible effluent pump transfers vast quantities of liquid while maintaining structural integrity under submerged pressure.
The defensive exterior relies upon EN 1.4301 AISI 304 stainless steel fabrication integrated flawlessly with a durable composite base plate, rendering the system resistant to corrosive agents. Internal electronics are shielded entirely by an advanced double shaft seal system and a specialized intermediate oil chamber that utilizes environmentally friendly, non-toxic special oil.
Analyzing the superior internal fluid dynamics, the uniquely cast vortex impeller accommodates substantial particulate matter with its expanded 50 mm free passage clearance. By maintaining continuous flow momentum, the pump smoothly achieves an approximate 14 m maximum head and a maximum flow of roughly 480 L/Min, transitioning fluid directly through a 50 mm discharge port.
Minimizing total cost of ownership, the robust motor utilizes an insulation class F thermal rating to halt standard operational degradation. Powered by a heavy-duty 1.21 kW Single Phase 240v electrical architecture, this precise setup guarantees extensive functional lifespans even during uninterrupted surface water management cycles.
Features
- Built-in thermal overload protection halts motor operation instantly during high-heat anomalies
- Strategic inclusion of long-life deep-groove greased-for-life ball bearings ensures frictionless rotation
- Automated functional control is governed by an integrated external level switch
- Provided standard with a highly insulated 10 m mains cable for power delivery
- Securely rated with an IP68 enclosure class for permanent sub-surface deployment
SPECIFICATIONS
| Max Flow | 480 L/Min |
| Max Head | 14 m |
| Power | 1.21 kW / 240v |
| Rated Current | 8 Amps |
| Suitable For | Wastewater Transfer |
| Body Material | Stainless steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum water flow rate and head pressure of this pump?
For balanced pressure and flow, the Grundfos UNILIFT AP50B.50.11.A1V provides up to 480 L/Min in delivery and up to 14 m in vertical lift.
What electrical voltage and motor kilowatt output drive this unit?
It operates on 240v power, with the UNILIFT AP50B.50.11.A1V utilizing a durable 1.21 kW motor rated at 8 Amps.
What materials make this pump durable against corrosion and wear?
Wetted components on the UNILIFT-AP50B-50-11-A1V are crafted from high-grade Stainless steel to maintain physical integrity and resist abrasive wear.
What primary fluid transfer and circulation roles are designated for this pump?
Everyday water management duties for the UNILIFT AP50B 50 11 A1V focus on Manufactured with domestic fluid movement focus, performs stormwater pit drainage, greywater trench evacuation, and suspended soft solids passage, providing reliable pumping performance.
What warranty coverage applies to this pump for long-term peace of mind?
Official factory backing for the UNILIFT/AP50B/50/11/A1V includes an authentic 2 Years warranty for verified quality and peace of mind.
