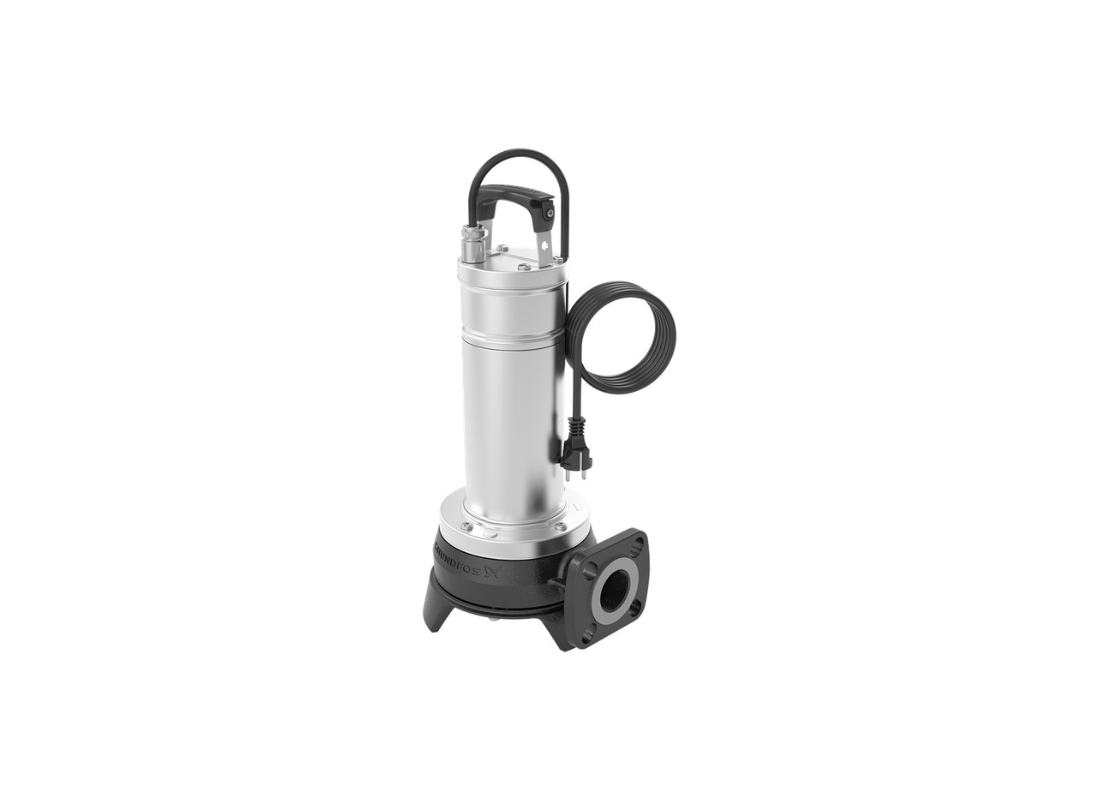

Grundfos UNILIFT APG.40.10.1 Cast Iron Grinder Pump for lifting stations with Vortex Semi-Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Confronting extreme operational load challenges in pressurised sewage systems requires uncompromising mechanical resilience. The Grundfos UNILIFT APG.40.10.1 single-stage submersible pumps, designed for pumping domestic wastewater in pressurised systems, provide robust processing capabilities. Facilities processing toilet blackwater benefit from the professional grinder system that cuts solids into smaller pieces. This cutting action significantly reduces pipe blockages while facilitating efficient fluid transport.
The structural architecture focuses on absolute durability. Constructed with an airtight odour-proof collecting tank compatibility framework, the unit mitigates gaseous leaks within basement installations. The heavy-duty cast-iron pump housing resists abrasive wear while the stainless steel upper casing protects electrical components.
Internal performance metrics dictate a stable fluid transfer regime. Generating a maximum head of approximately 26 meters, the pump drives a peak flow rate of 210 L/Min through its 40 mm discharge outlet. The single phase 240v power configuration operates at 5.7 Amps, ensuring strong torque delivery. Advanced mechanical shaft seals and a lightweight motor concept prevent thermal overloads.
Operating in liquid temperatures up to 40°C, the unit fits onto several auto couplings for rapid deployment. The semi open vortex impeller prevents fibrous material accumulation. By allowing smaller discharge pipes, the system cuts installation time across domestic infrastructures.
Features
- Manufactured with a heavy-duty cast-iron housing base for enhanced abrasion resistance against solid particles
- Utilizes a semi open vortex impeller to maintain internal flow stability during extreme pressurised transfer cycles
- Equipped with an advanced mechanical shaft seal assembly to protect the lightweight motor from ingress
- Supports direct integration with airtight odour-proof collecting tanks to prevent gaseous leaks in basements
- Compatible with multiple auto coupling formats including DN32 and DN40 flanged pipe connections
- Weighs exactly 25 kg to allow straightforward handling and positioning without requiring extra lifting devices
SPECIFICATIONS
| Max Flow | 210 L/Min |
| Max Head | 26 m |
| Power | 1 kW / 240v |
| Rated Current | 5.7 Amps |
| Suitable For | Domestic Wastewater Pumping |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What kind of water volume and pressure head does this pump provide?
For balanced pressure and flow, the Grundfos UNILIFT APG.40.10.1 provides up to 210 L/Min in delivery and up to 26 m in vertical lift.
What electrical supply parameters are needed for this pump motor?
It operates on 240v power, with the UNILIFT APG.40.10.1 utilizing a durable 1 kW motor rated at 5.7 Amps.
How is the pump casing constructed to resist mechanical and fluid wear?
Wetted components on the UNILIFT-APG-40-10-1 are crafted from high-grade Cast Iron to maintain physical integrity and resist abrasive wear.
Where is this pump commonly installed and utilized?
Everyday water management duties for the UNILIFT APG 40 10 1 focus on grinding fibrous solids and wastewater dewatering from basement pits and granny flat collection sumps, providing reliable pumping performance.
Does this pump include an official manufacturer warranty?
Official factory backing for the UNILIFT/APG/40/10/1 includes an authentic 2 Years warranty for verified quality and peace of mind.
