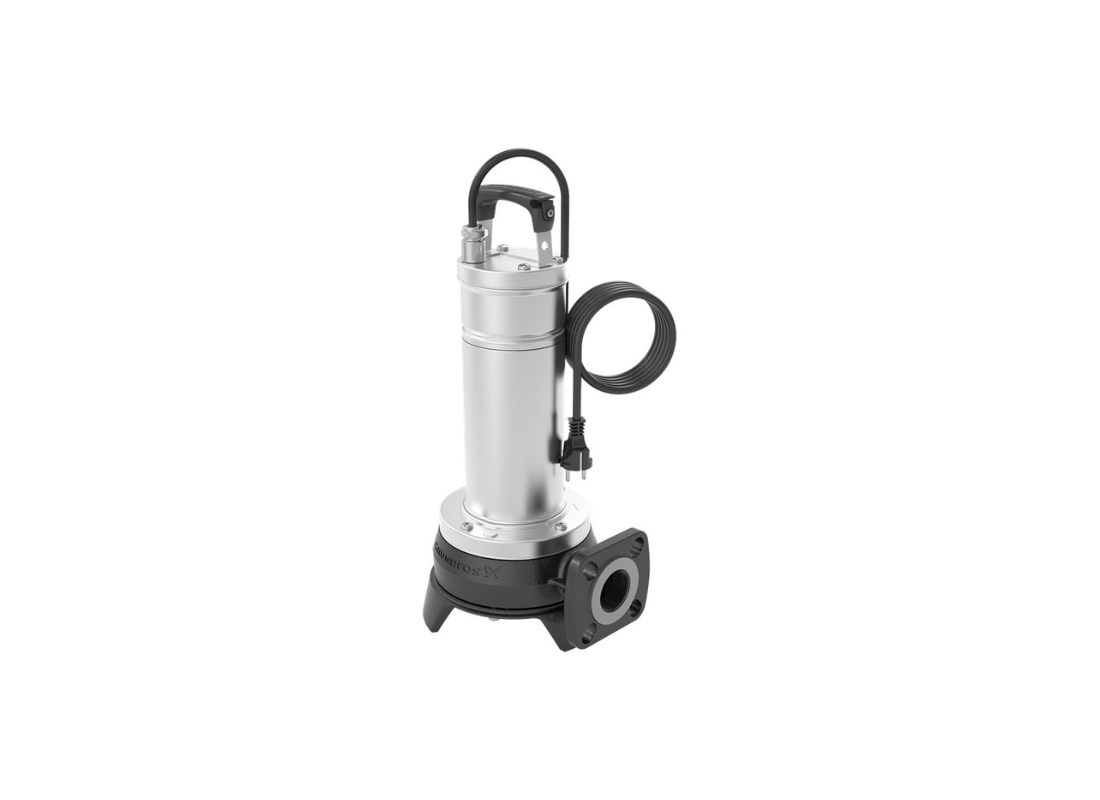

Grundfos UNILIFT APG.40.10.3 Cast Iron Grinder Pump for domestic wastewater with Vortex Semi-Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Governing internal fluid velocity paths in challenging blackwater scenarios is critical. The Grundfos UNILIFT APG.40.10.3 single-stage submersible pumps, designed for pumping domestic wastewater in pressurised systems, master these dynamics. Facilities utilizing pumping stations demand the solid-reduction capabilities of the professional grinder system. By cutting suspended solids into smaller fragments, the pump ensures velocities remain efficient.
Thermodynamic behavior is regulated by a three phase 415v electrical architecture. Operating with a current draw of 2.8 Amps, the drive translates 1 kW of power into mechanical force. The lightweight motor features in-built protection mechanisms that actively dissipate thermal load. Secure mechanical shaft seals isolate internal electronics from the medium.
Displacement metrics highlight exceptional engineering tolerances. Generating a maximum head of approximately 26 meters, the unit pushes wastewater against steep gravity gradients. The system guarantees a peak flow rate of 210 L/Min, clearing basins through a 40 mm outlet port. This high-velocity output allows the usage of reduced diameter piping, preventing organic settling.
Delivering reliability, the pump integrates a heavy cast-iron base to resist continuous abrasion. Safe for operation in liquid temperatures up to 40°C, the system interfaces with an airtight odour-proof collecting tank to block gaseous emissions. The semi open vortex impeller prevents fibrous binding, ensuring sewage is transferred predictably and cutting installation time.
Features
- Powered by an efficient three phase configuration designed to maintain consistent torque without voltage drops
- Manufactured without an integrated float switch to allow seamless integration into automated multi-pump controller systems
- Equipped with a highly durable cast-iron pumping base to withstand impacts from heavy suspended solids
- Utilizes precision-machined mechanical shaft seals to permanently secure the motor housing from fluid ingress
- Reduces overall system installation costs by enabling the use of minimum DN32 discharge pipe networks
- Features a robust 25 kg construction that remains incredibly easy to handle during routine pit maintenance
SPECIFICATIONS
| Max Flow | 210 L/Min |
| Max Head | 26 m |
| Power | 1 kW / 415v |
| Rated Current | 2.8 Amps |
| Suitable For | Basement Lifting Stations |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water flow and dynamic pressure can this pump generate?
Rated for dependable performance, the Grundfos UNILIFT APG.40.10.3 provides up to 210 L/Min in flow and up to 26 m in head, depending on operating conditions.
What kind of power supply does this pump require to run?
Electrical power for the UNILIFT APG.40.10.3 requires a 415v connection, driving an efficient 1 kW motor that draws 2.8 Amps.
Which casing and impeller materials provide long service life in this pump?
Structural defense on the UNILIFT-APG-40-10-3 is provided by a rugged Cast Iron casing designed to withstand heavy mechanical stress.
What primary water management tasks is this pump best suited for?
Water management applications designate the UNILIFT APG 40 10 3 for Field performance confirms excels at grinding fibrous solids and wastewater dewatering from basement pits and granny flat collection sumps, supporting consistent property operation.
What official warranty duration comes with this pump from purchase?
Backed by Grundfos engineering, the UNILIFT/APG/40/10/3 carries an official 2 Years warranty with genuine manufacturer support.
