SKU: 96280972

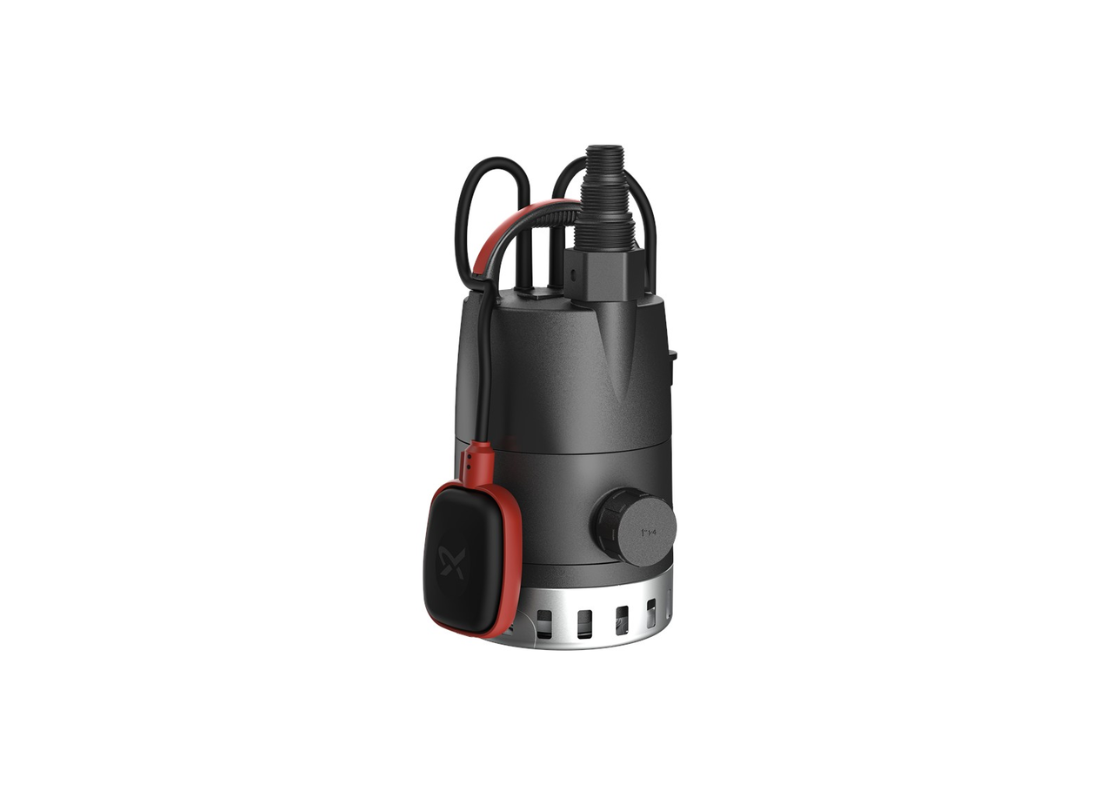

Grundfos Unilift CC5-A1 Polypropylene Low Level Drainage Pump for Tanks with Semi-Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Residential properties often face unexpected surface water accumulation requiring swift action. The Unilift CC5 - A1 is a submersible drainage pump designed for clean water drainage as well as storm water and grey water handling around the home. It is suitable for draining flooded areas, ponds and tanks, and other domestic drainage applications.
Powered by a 240V supply, the drive utilizes a 0.11 kW motor output (P2) drawing a rated current of 0.98 Amps. Designed for consistent drainage performance, it generates a maximum flow of 100 L/Min. The system evacuates standing water through its discharge connection options and achieves a maximum head of 5 metres.
Fluid handling is supported by a semi-open impeller designed for drainage duties. The hydraulic system permits the passage of particles up to 10 mm in size. By removing the strainer, the unit can pump water down to a residual level of just 3 mm, making it suitable for maintenance and clean-up applications.
Moulded from corrosion-resistant composite materials and incorporating stainless steel components, the pump is designed for long service life. Certified to IP68 standards, the unit is suitable for submerged installation, handles liquid temperatures up to 40°C and can be installed to depths of up to 2 metres. A built-in float switch provides automatic start and stop operation.
FEATURES
- Integrated motor cooling jacket permits extended operation whilst only partially submerged.
- Lightweight 4.51 kg construction allows portable or permanent installation.
- Corrosion-resistant composite body with stainless steel internal components.
- Top and side discharge connection options provide installation flexibility.
- Integrated non-return valve helps prevent backflow.
- Automatic restart function supports continued operation after interruption.
SPECIFICATIONS
| Max Flow | 100 L/Min |
| Max Head | 5 m |
| Power | 0.11 kW / 240v |
| Rated Current | 0.98 Amps |
| Suitable For | Grey Water Handling |
| Body Material | Polypropylene |
| Liquid Temperature | 0°C to +40°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water flow and pressure can this pump deliver?
Output across system pipework enables the Grundfos Unilift CC5-A1 to deliver up to 100 L/Min in flow and a maximum head of 5 m, depending on your pipe layout.
How much power does the motor consume during standard operation?
Under full load conditions, the motor in the Unilift CC5-A1 delivers 0.11 kW on a 240v line drawing 0.98 Amps.
What corrosion-resistant materials are used in the wetted components?
Built with a resilient Polypropylene body, the Unilift-CC5-A1 maintains material durability against fluid abrasion and wear.
What domestic plumbing and water boosting roles does this pump perform?
Routine operational tasks matching the Unilift CC5 A1 encompass low-level puddle drainage, basement floor dewatering, and emptying residential pools across connected networks.
What factory warranty backing is provided with this pumping equipment?
Grundfos backs the Unilift/CC5/A1 with an official 2 Years warranty, offering reliable coverage and factory technical support.
