SKU: 96280974

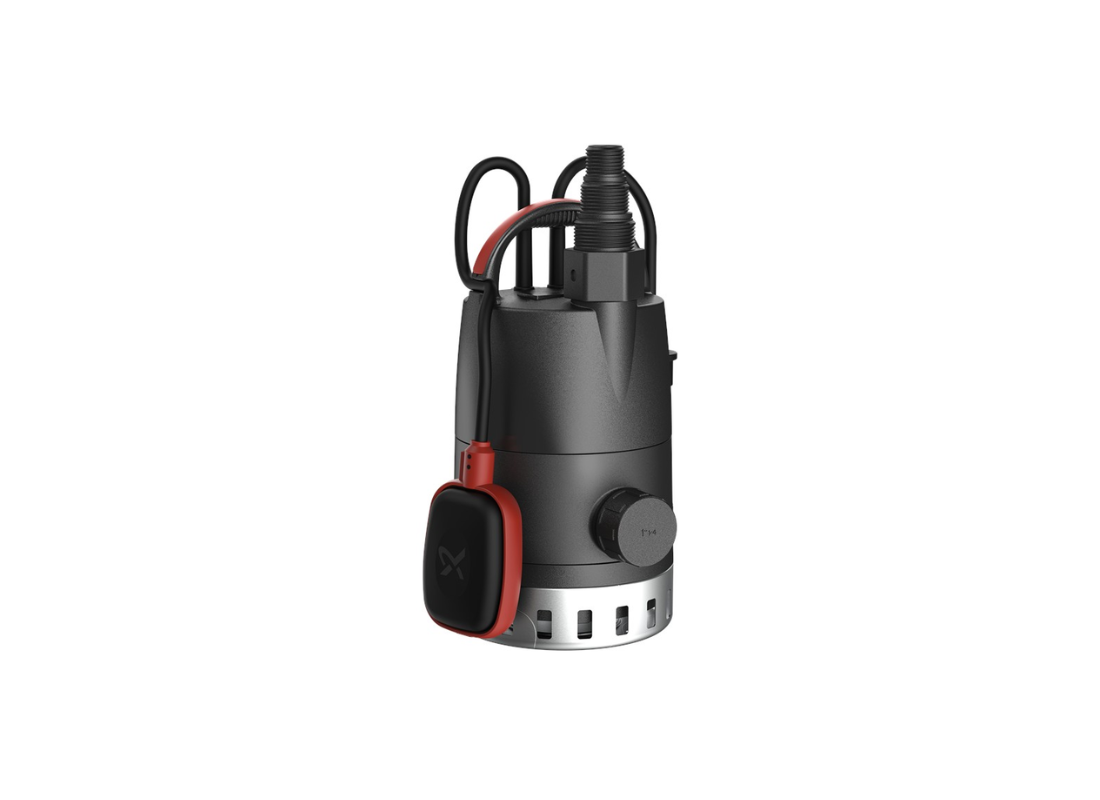

Grundfos Unilift CC7-A1 Polypropylene Auto Restart Drainage Pump for Stormwater with Semi-Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Effective stormwater management requires responsive equipment for domestic drainage duties. Constructed for versatile use, the Unilift CC7 - A1 is a submersible drainage pump suitable for clean water drainage as well as storm water and grey water handling. It can be used for draining flooded areas, ponds, tanks and similar applications around the home.
The hydraulic performance is driven by a 0.17 kW motor output (P2) on a 240V supply, drawing 1.8 Amps under load. Designed for efficient water transfer, the system delivers a maximum flow of 167 L/Min through its discharge connection options. Pressure capabilities allow the pump to achieve a maximum head of 7 metres.
Fluid handling is achieved through a semi-open impeller designed for drainage applications. The pump is capable of passing particles up to 10 mm in size. When a low residual water level is required, removal of the strainer allows the unit to pump down to approximately 3 mm.
Built with an IP68-rated enclosure, the composite pump body is suitable for submerged installation. The unit can be installed to depths of up to 7 metres and is suitable for liquid temperatures up to 40°C. Automatic operation is provided by the integrated float switch, which controls pump start and stop functions.
FEATURES
- Motor cooling jacket supports operation during periods of partial submersion.
- Lightweight 5.26 kg construction allows easy handling and installation.
- Corrosion-resistant composite body with stainless steel internal components.
- Top and side discharge connection options provide installation flexibility.
- Integrated non-return valve helps reduce backflow.
- Pre-fitted 10-metre power cable simplifies installation.
- Automatic restart function supports continued operation after interruption.
SPECIFICATIONS
| Max Flow | 167 L/Min |
| Max Head | 7 m |
| Power | 0.17 kW / 240v |
| Rated Current | 1.8 Amps |
| Suitable For | Storm Water Removal |
| Body Material | Polypropylene |
| Liquid Temperature | 0°C to +40°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water flow and dynamic pressure can this pump generate?
Achieving strong system delivery, the Grundfos Unilift CC7-A1 develops a maximum flow rate of 167 L/Min and a maximum dynamic head of 7 m across its operating curve.
What electrical supply parameters are needed for this pump motor?
Running on 240v power supplies, the Unilift CC7-A1 is driven by a 0.17 kW motor rated at 1.8 Amps.
Which casing and impeller materials provide long service life in this pump?
High-grade Polypropylene components in the Unilift-CC7-A1 protect internal passages against corrosive fluid contact.
What primary water management tasks is this pump best suited for?
Primary tasks for the Unilift CC7 A1 include Running within utility installations, Unilift CC 7 A1 focuses on low-level puddle drainage, basement floor dewatering, and emptying residential pools, delivering efficient water management across residential and rural systems.
What official warranty duration comes with this pump from purchase?
You receive a certified 2 Years manufacturer warranty with the Unilift/CC7/A1, giving you long-term protection and support.
