SKU: 96280976

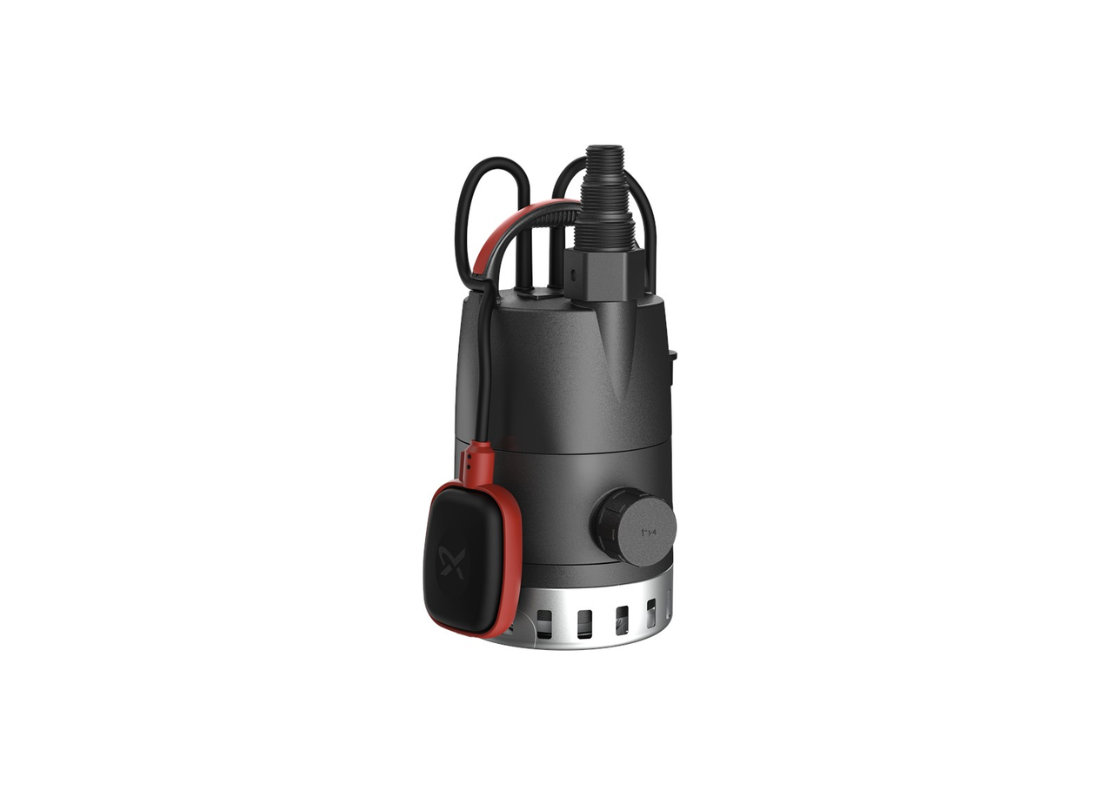

Grundfos Unilift CC9-A1 Polypropylene Float Switch Drainage Pump for Grey Water with Semi-Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Managing larger volumes of accumulated water requires dependable drainage performance and automatic operation. The Unilift CC9 - A1 is a submersible drainage pump designed for clean water drainage as well as storm water and grey water handling. It is suitable for draining flooded areas, ponds, tanks and other domestic drainage applications.
Generating high-capacity drainage performance, the 240V electrical system utilizes a 0.46 kW motor output (P2) drawing a rated current of 3.5 Amps. This configuration delivers a maximum flow of 233 L/Min and a maximum head of 9 metres, making it suitable for demanding drainage duties.
Drainage performance is provided by a semi-open impeller designed for water transfer applications. The hydraulic design permits the passage of particles up to 10 mm in size. By removing the strainer, the pump can reduce residual water levels to approximately 3 mm.
Constructed from corrosion-resistant composite materials with stainless steel internal components, the unit is designed for submerged operation. The IP68-rated enclosure allows installation to depths of up to 7 metres and supports liquid temperatures up to 40°C. An integrated float switch provides automatic start and stop functionality.
FEATURES
- Motor cooling jacket allows operation whilst partially submerged.
- Lightweight 6.79 kg construction balances portability and performance.
- Corrosion-resistant composite body with stainless steel internal components.
- Top and side discharge connection options provide installation flexibility.
- Automatic restart function supports continued operation after interruption.
- Integrated non-return valve helps reduce backflow.
- 10-metre power cable assists installation in deeper pits and drainage areas.
SPECIFICATIONS
| Max Flow | 233 L/Min |
| Max Head | 9 m |
| Power | 0.46 kW / 240v |
| Rated Current | 3.5 Amps |
| Suitable For | Flooded Catchment Extraction |
| Body Material | Polypropylene |
| Liquid Temperature | 0°C to +40°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What peak flow capacity and vertical elevation does this pump produce?
Depending on operating conditions, the Grundfos Unilift CC9-A1 delivers a maximum flow rate of 233 L/Min and a maximum head of 9 m.
What voltage supply and motor power does this pump need?
Connecting across 240v lines, the Unilift CC9-A1 draws approximately 3.5 Amps with an efficient 0.46 kW motor.
What metallurgy is selected for the pump body to resist abrasive wear?
Durable Polypropylene construction gives the Unilift-CC9-A1 exceptional structural strength and long-term protection against corrosive fluids.
Where is this pump typically deployed across residential and rural systems?
System installations deploy the Unilift CC9 A1 for Physical layout allows Unilift CC 9 A1 to serve low-level puddle drainage, basement floor dewatering, and emptying residential pools, maintaining steady circulation and reliable line pressure.
What warranty protection and factory support cover this pump?
Purchase of the Unilift/CC9/A1 includes an official 2 Years warranty from Grundfos, covering parts and manufacturing quality.
