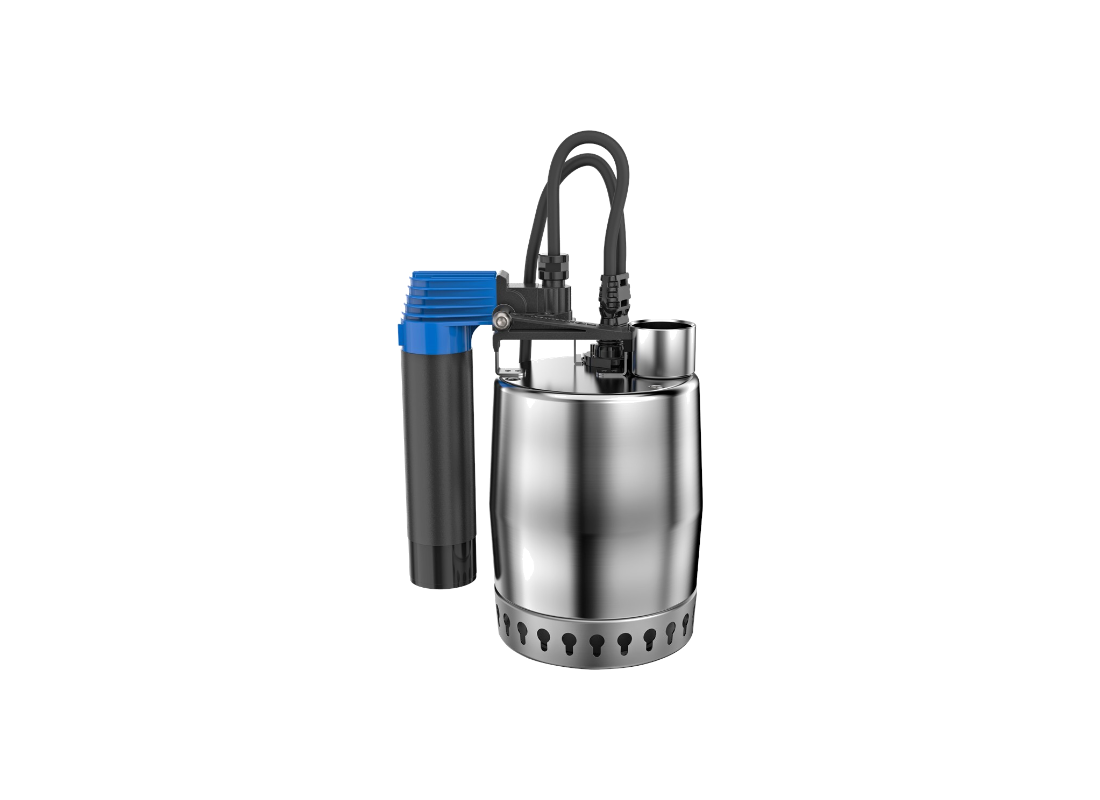

Grundfos Unilift KP.150.AV.1 Stainless Steel Vertical Float Drainage Pump for Sumps with Semi-Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos Unilift KP.150.AV.1 is a submersible drainage pump designed for clean water drainage, storm water handling and grey water applications. Featuring a compact vertical float arrangement, this stainless steel pump is particularly suited to installations where space is limited and conventional float switches may not operate freely. Its corrosion-resistant construction and automatic operation make it suitable for a wide range of domestic drainage and light industrial water transfer duties.
Operating from a standard 240V single-phase electrical supply, the pump utilizes a 0.15 kW (P2) motor drawing a rated current of 1.3 Amps. Designed to provide dependable hydraulic performance, the system generates a maximum flow rate of 142 L/Min through its 1¼ inch discharge connection. The hydraulic design also delivers a maximum head of 5.5 metres, enabling efficient water transfer across a broad range of drainage applications.
Water movement is provided by a semi-open impeller specifically developed for drainage duties. The hydraulic passage permits the movement of particles up to 10 mm in size, making the pump suitable for handling water containing small suspended solids commonly encountered in storm water and grey water applications. Working together with the stainless steel strainer, the pump can reduce water levels down to approximately 100 mm, helping remove accumulated water from pits, tanks and drainage chambers.
Manufactured using stainless steel components in contact with the pumped liquid, the unit provides excellent corrosion resistance and durability. The IP68-rated construction supports liquid temperatures up to 50°C and installation depths of up to 2 metres. Automatic operation is provided by a vertical float switch designed for confined installations, while a non-return valve helps reduce backflow within the discharge line.
FEATURES
- Vertical float switch designed for confined pit and narrow chamber installations.
- Integrated non-return valve helps reduce discharge backflow.
- Motor cooling jacket supports operation during periods of partial submersion.
- 304 stainless steel wetted components provide corrosion resistance and durability.
- Semi-open impeller permits the passage of particles up to 10 mm in size.
- Lightweight 6.6 kg construction assists handling and installation.
- Internal thermal protection helps protect the motor during operation.
- Supplied with a 5-metre power cable.
SPECIFICATIONS
| Max Flow | 142 L/Min |
| Max Head | 5.5 m |
| Power | 0.15 kW / 240v |
| Rated Current | 1.3 Amps |
| Suitable For | Narrow Pit Clearance |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | 0°C to +50°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What fluid throughput and pressure head are developed by this pump?
You get up to 142 L/Min in flow and a maximum head of 5.5 m from the Grundfos Unilift KP.150.AV.1, depending on operating conditions.
What are the power requirements and running amperage for this pump?
Powered by a dedicated 0.15 kW motor, the Unilift KP.150.AV.1 connects to 240v mains power with a rated current draw of 1.3 Amps.
Is the pump body built to withstand harsh and corrosive liquids?
Manufactured with quality materials, the Unilift-KP-150-AV-1 incorporates Stainless Steel for dependable longevity and resistance to fluid erosion.
Which pumping tasks and system installations are ideal for this unit?
Suited for diverse installations, the Unilift KP 150 AV 1 performs designated for Unilift KP 150 AV include basement sump dewatering, stormwater pit drainage, and greywater excavation disposal with dependable fluid propulsion.
What manufacturer warranty coverage is included with this pump?
Factory coverage on the Unilift/KP/150/AV/1 provides an authentic 2 Years warranty for dependable long-term reliability.
