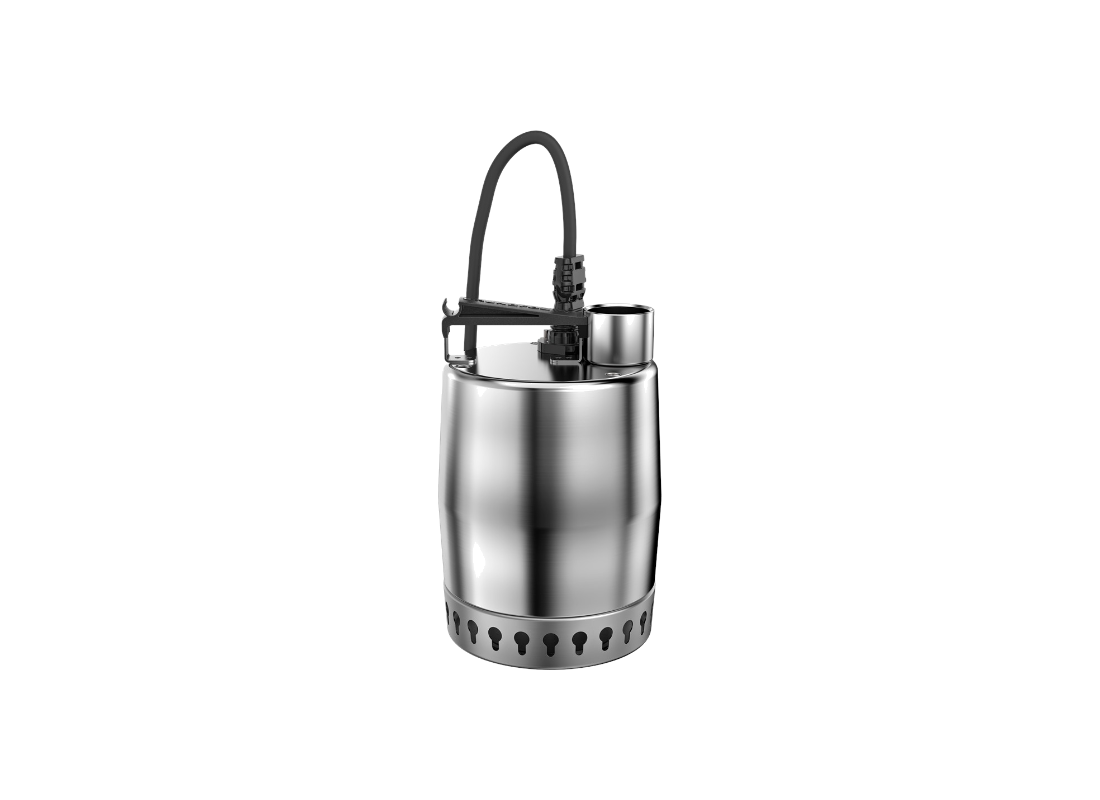

Grundfos Unilift KP.150.M.1 Stainless Steel Manual Drainage Pump for Grey Water with Semi-Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos Unilift KP.150.M.1 is a durable submersible drainage pump designed for clean water drainage, storm water handling and grey water applications. Constructed from high-quality stainless steel materials, this versatile pump is suitable for a broad range of domestic drainage duties and light industrial applications where reliable water transfer and dependable operation are required. Its compact design and corrosion-resistant construction allow it to be used in drainage pits, collection tanks and general water transfer installations where efficient fluid removal is essential.
Electrical performance is provided by a 0.15 kW (P2) motor operating from a standard 240V single-phase power supply while drawing a rated current of 1.3 Amps. Designed for dependable hydraulic performance, the system delivers a maximum flow rate of 142 L/Min through its 1¼ inch discharge connection. The hydraulic design simultaneously achieves a maximum head of 5.5 metres, providing efficient water transfer performance across a wide variety of drainage and water removal applications.
The hydraulic assembly incorporates a semi-open impeller specifically designed for drainage duties. This proven design permits the passage of solid particles up to 10 mm in size, allowing the pump to handle water containing small suspended solids commonly encountered in storm water and grey water applications. Working in conjunction with the stainless steel strainer, the hydraulic system is capable of reducing water levels down to approximately 100 mm, helping maximise the amount of water removed during operation.
Constructed using stainless steel components in contact with the pumped liquid, the pump provides excellent corrosion resistance and long service life. Certified to IP68 enclosure standards, the unit supports liquid temperatures up to 50°C and is suitable for submerged installation depths of up to 2 metres. This manual version is supplied without a float switch, allowing operation via external controls or manual switching where automatic level control is not required.
FEATURES
- Manual version supplied without a float switch for external control applications.
- Integrated motor cooling jacket supports reliable operation during periods of partial submersion.
- 304 stainless steel wetted components provide excellent corrosion resistance.
- Semi-open impeller design permits the passage of particles up to 10 mm in size.
- Lightweight 6.5 kg construction assists handling and installation.
- Supplied with a 5-metre power cable for installation flexibility.
- Internal thermal protection helps protect the motor during operation.
SPECIFICATIONS
| Max Flow | 142 L/Min |
| Max Head | 5.5 m |
| Power | 0.15 kW / 240v |
| Rated Current | 1.3 Amps |
| Suitable For | Clean Water Transfer |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | 0°C to +50°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water volume and dynamic lift does this pump generate?
For balanced pressure and flow, the Grundfos Unilift KP.150.M.1 provides up to 142 L/Min in delivery and up to 5.5 m in vertical lift.
What kind of power supply does this pump require to run?
It operates on 240v power, with the Unilift KP.150.M.1 utilizing a durable 0.15 kW motor rated at 1.3 Amps.
What materials protect the wetted parts against aggressive chemical attack?
Wetted components on the Unilift-KP-150-M-1 are crafted from high-grade Stainless Steel to maintain physical integrity and resist abrasive wear.
What maximum vertical water column can this pump maintain?
Pumping performance for the Unilift KP 150 M 1 provides up to 150 M of vertical dynamic lift, depending on system friction and line sizing.
How long is the official factory warranty for this pump?
Official factory backing for the Unilift/KP/150/M/1 includes an authentic 2 Years warranty for verified quality and peace of mind.
