SKU: 92533644

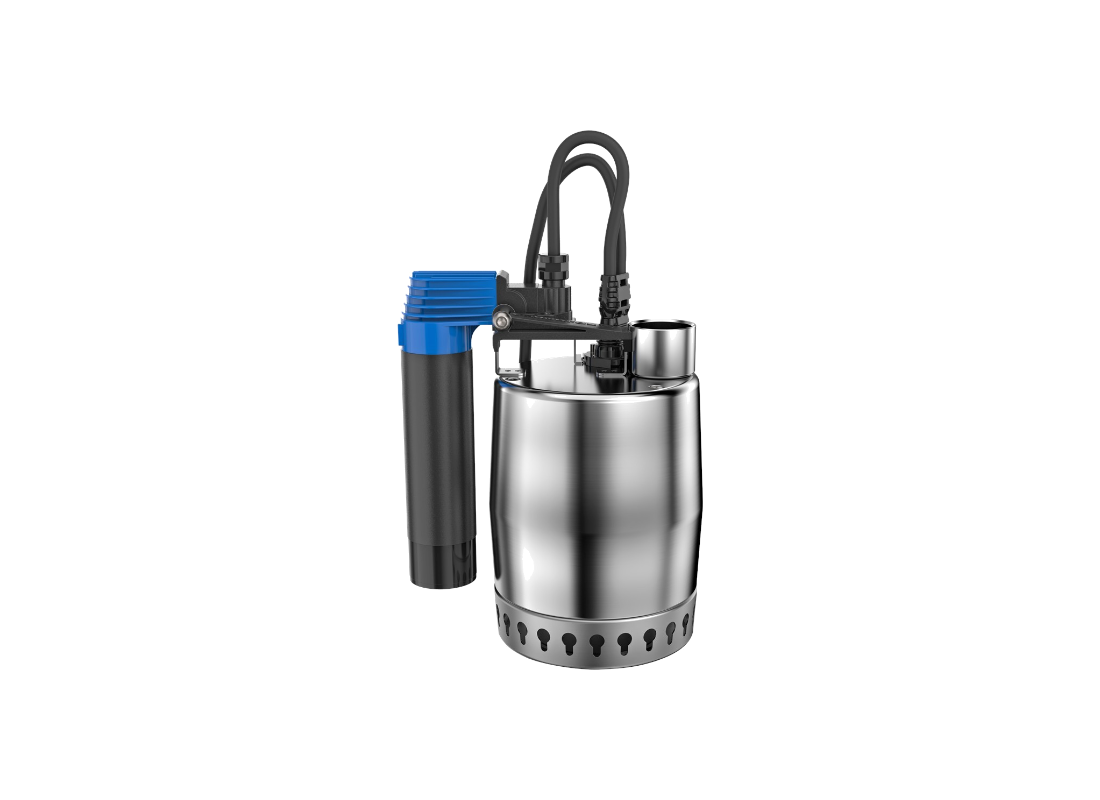

Grundfos Unilift KP.250.AV.1 Stainless Steel Vertical Float Drainage Pump for Chambers with Semi-Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Cramped underground utility pits and narrow drainage chambers often require a pumping solution specifically suited to restricted installation spaces. Built for these conditions, the Unilift KP.250.AV.1 operates as a submersible drainage pump designed for clean water drainage, storm water handling and grey water applications. Its compact vertical float arrangement allows automatic operation where conventional float switches may have limited movement, making it suitable for domestic drainage and light industrial water transfer duties.
Powered by a 0.25 kW (P2) motor operating on a standard 240V power supply, the unit functions with a rated current draw of 2.2 Amps. Designed to handle increased drainage capacity, the system delivers a maximum flow rate of 187 L/Min through its 1¼ inch discharge connection. The hydraulic design also generates a maximum head of 7.5 metres, providing reliable vertical lift performance across a broad range of drainage applications.
Water transfer is provided through a semi-open impeller designed specifically for drainage duties. The hydraulic passage allows particles up to 10 mm in size to pass through the pump, making it suitable for handling water containing small suspended solids. Working together with the stainless steel strainer, the pump can reduce water levels down to approximately 100 mm, helping remove accumulated water from pits, tanks and confined drainage areas.
Constructed with stainless steel components in contact with the pumped liquid, the unit provides excellent corrosion resistance and durability. Rated to IP68 standards, the pump supports liquid temperatures up to 50°C and submerged installation depths of up to 2 metres. A vertical float switch provides automatic operation in restricted spaces, while the integrated non-return valve helps reduce backflow within the discharge line.
FEATURES
- Vertical float switch designed for confined pit and narrow chamber installations.
- Integrated non-return valve helps reduce discharge backflow.
- Motor cooling jacket supports operation during periods of partial submersion.
- 304 stainless steel wetted components provide corrosion resistance and durability.
- Semi-open impeller permits the passage of particles up to 10 mm in size.
- 7 kg construction balances portability and installation flexibility.
- Internal thermal protection helps protect the motor during operation.
- Supplied with a 5-metre power cable.
SPECIFICATIONS
| Max Flow | 187 L/Min |
| Max Head | 7.5 m |
| Power | 0.25 kW / 240v |
| Rated Current | 2.2 Amps |
| Suitable For | Confined Space Circulation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | 0°C to +50°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What kind of water volume and pressure head does this pump provide?
Achieving strong system delivery, the Grundfos Unilift KP.250.AV.1 develops a maximum flow rate of 187 L/Min and a maximum dynamic head of 7.5 m across its operating curve.
What electrical voltage and motor kilowatt output drive this unit?
Running on 240v power supplies, the Unilift KP.250.AV.1 is driven by a 0.25 kW motor rated at 2.2 Amps.
How is the pump casing constructed to resist mechanical and fluid wear?
High-grade Stainless Steel components in the Unilift-KP-250-AV-1 protect internal passages against corrosive fluid contact.
Where is this pump commonly installed and utilized?
Primary tasks for the Unilift KP 250 AV 1 include Formed with versatile connections, Unilift KP 250 AV supports basement sump dewatering, stormwater pit drainage, and greywater excavation disposal, delivering efficient water management across residential and rural systems.
Does this pump include an official manufacturer warranty?
You receive a certified 2 Years manufacturer warranty with the Unilift/KP/250/AV/1, giving you long-term protection and support.
