Roll over image to zoom
SKU: 92533666

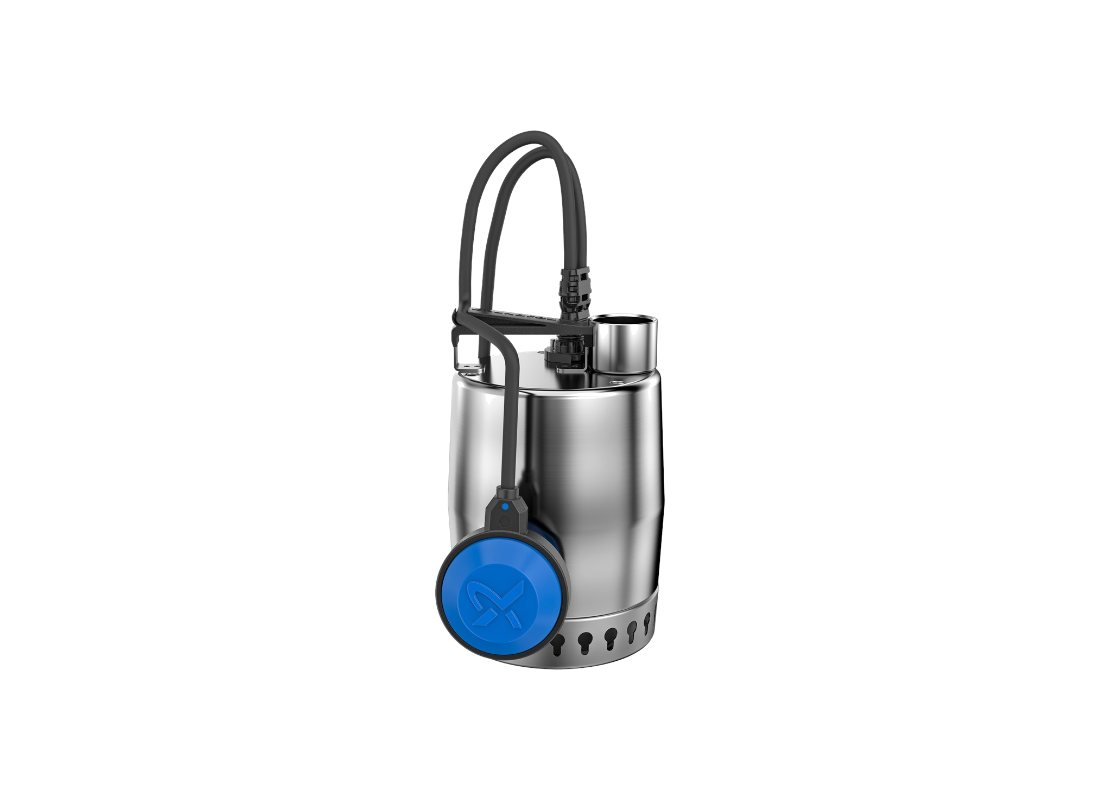

Grundfos Unilift KP.350.A.1 Stainless Steel Float Switch Drainage Pump for Stormwater with Semi-Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Reliable automatic drainage equipment is essential wherever larger volumes of accumulated water require ongoing monitoring and removal. Functioning as a powerful submersible drainage pump, the Unilift KP.350.A.1 is designed for clean water drainage, storm water handling and grey water applications. Its stainless steel construction and automatic level control make it suitable for domestic drainage duties and light industrial installations where dependable water removal performance is required.
The high-output drive system utilizes a 0.35 kW (P2) motor operating from a standard 240V single-phase power supply while drawing a rated current of 3.2 Amps. Designed to provide high-capacity water transfer performance, the hydraulic system delivers a maximum flow rate of 233 L/Min through its 1¼ inch discharge connection. Hydraulic performance is further supported by a maximum head of 9 metres, providing reliable operation across a broad range of drainage applications.
Water movement is provided through a semi-open impeller specifically designed for drainage duties. The hydraulic design permits the passage of particles up to 10 mm in size, making the pump suitable for handling water containing small suspended solids. Working together with the stainless steel strainer, the pump can reduce water levels down to approximately 100 mm, helping maximise water removal from pits, tanks and drainage areas.
Constructed using stainless steel components in contact with the pumped liquid, the pump provides excellent corrosion resistance and long service life. Carrying an IP68 enclosure rating, the unit supports liquid temperatures up to 40°C and installation depths of up to 2 metres. A float switch provides automatic start and stop operation according to changing water levels, delivering dependable day-to-day drainage performance.
FEATURES
- Automatic operation via float switch.
- Motor cooling jacket supports reliable operation whilst partially submerged.
- 304 stainless steel wetted components provide corrosion resistance and durability.
- Semi-open impeller permits the passage of particles up to 10 mm in size.
- Lightweight 7.29 kg construction assists handling and installation.
- Internal thermal protection helps protect the motor during operation.
- Supplied with a 5-metre power cable.
SPECIFICATIONS
| Max Flow | 233 L/Min |
| Max Head | 9 m |
| Power | 0.35 kW / 240v |
| Rated Current | 3.2 Amps |
| Suitable For | Commercial Flood Protection |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | 0°C to +50°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water volume and dynamic lift does this pump generate?
Rated for dependable performance, the Grundfos Unilift KP.350.A.1 provides up to 233 L/Min in flow and up to 9 m in head, depending on operating conditions.
What electrical supply parameters are needed for this pump motor?
Electrical power for the Unilift KP.350.A.1 requires a 240v connection, driving an efficient 0.35 kW motor that draws 3.2 Amps.
What materials protect the wetted parts against aggressive chemical attack?
Structural defense on the Unilift-KP-350-A-1 is provided by a rugged Stainless Steel casing designed to withstand heavy mechanical stress.
What everyday water supply duties are best performed by this pump?
Water management applications designate the Unilift KP 350 A 1 for Constructed with domestic plumbing compatibility, Unilift KP 350 A focuses on basement sump dewatering, stormwater pit drainage, and greywater excavation disposal, supporting consistent property operation.
How long is the official factory warranty for this pump?
Backed by Grundfos engineering, the Unilift/KP/350/A/1 carries an official 2 Years warranty with genuine manufacturer support.
