SKU: 92533648

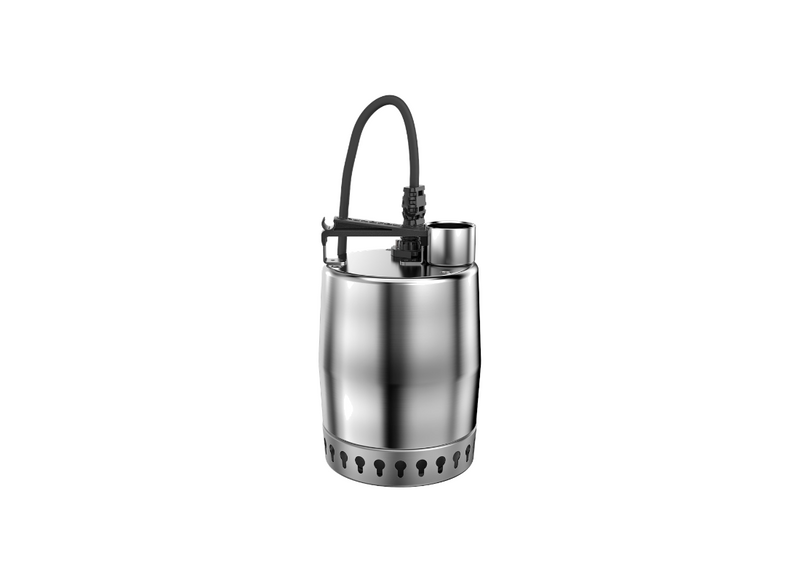

Grundfos Unilift KP.350.M.1 Stainless Steel High Flow Drainage Pump for Dewatering with Semi-Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
High-capacity drainage duties and demanding water transfer applications require equipment capable of delivering strong hydraulic performance together with dependable long-term durability. Operating as a powerful submersible drainage pump, the Unilift KP.350.M.1 is designed for clean water drainage, storm water handling and grey water applications. Its stainless steel construction makes it suitable for domestic drainage duties and light industrial installations where reliable water removal and corrosion resistance are essential requirements.
Continuous hydraulic performance is supplied by a 0.35 kW (P2) motor connected to a standard 240V single-phase power supply while drawing a rated current of 3.2 Amps. Designed to maximise water transfer performance, the system delivers a maximum flow rate of 233 L/Min through its 1¼ inch discharge connection. The hydraulic design simultaneously achieves a maximum head of 9 metres, providing efficient water transfer performance across a broad range of drainage and water removal applications.
Water movement is provided through a semi-open impeller specifically designed for drainage duties. The hydraulic passage permits particles up to 10 mm in size to pass through the pump, making it suitable for handling water containing small suspended solids commonly encountered in storm water and grey water applications. Working together with the stainless steel strainer, the hydraulic system can reduce water levels down to approximately 100 mm, helping maximise the amount of water removed during operation.
Constructed using stainless steel components in contact with the pumped liquid, the pump provides excellent corrosion resistance and long service life. Carrying an IP68 enclosure rating, the unit supports liquid temperatures up to 40°C and is suitable for submerged installation depths of up to 2 metres. This manual version is supplied without a float switch, allowing operation through external controls or manual switching where automatic level control is not required.
FEATURES
- Manual version supplied without a float switch for external control applications.
- Motor cooling jacket supports reliable operation whilst partially submerged.
- 304 stainless steel wetted components provide corrosion resistance and durability.
- Semi-open impeller permits the passage of particles up to 10 mm in size.
- Lightweight 7.18 kg construction assists handling and installation.
- Internal thermal protection helps protect the motor during operation.
- Supplied with a 5-metre power cable.
SPECIFICATIONS
| Max Flow | 233 L/Min |
| Max Head | 9 m |
| Power | 0.35 kW / 240v |
| Rated Current | 3.2 Amps |
| Suitable For | High Volume Extraction |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | 0°C to +50°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water flow and dynamic pressure can this pump generate?
For balanced pressure and flow, the Grundfos Unilift KP.350.M.1 provides up to 233 L/Min in delivery and up to 9 m in vertical lift.
How much electricity and current does this pump draw under load?
It operates on 240v power, with the Unilift KP.350.M.1 utilizing a durable 0.35 kW motor rated at 3.2 Amps.
Which casing and impeller materials provide long service life in this pump?
Wetted components on the Unilift-KP-350-M-1 are crafted from high-grade Stainless Steel to maintain physical integrity and resist abrasive wear.
What total dynamic head can this pump overcome in vertical pipework?
Pumping performance for the Unilift KP 350 M 1 provides up to 350 M of vertical dynamic lift, depending on system friction and line sizing.
What official warranty duration comes with this pump from purchase?
Official factory backing for the Unilift/KP/350/M/1 includes an authentic 2 Years warranty for verified quality and peace of mind.
