SKU: 96913096

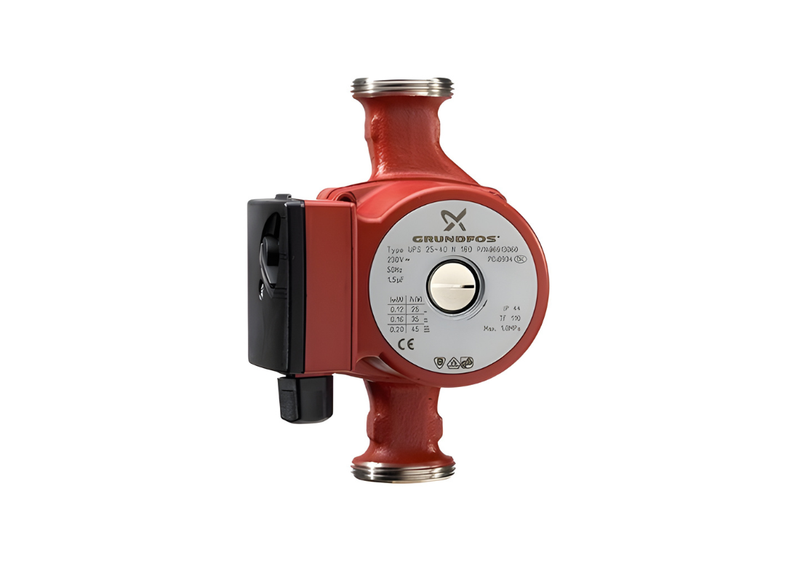

Grundfos UPS 20-60N Stainless Steel Hot Water Circulator Pump with Three Speed Settings
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos UPS 20-60N 150 is a stainless steel three-speed circulator pump designed for domestic hot water recirculation and underfloor heating systems.
Featuring a corrosion-resistant stainless steel pump housing and composite impeller, the UPS N range is ideal for potable hot water applications. The canned rotor design eliminates the need for a mechanical shaft seal, with bearings lubricated by the pumped liquid for quiet and reliable operation.
With three selectable speed settings, the UPS 20-60N allows installers to optimise performance and energy use based on system requirements. The pump can also be connected to an external time switch to limit operation to peak usage periods.
FEATURES
- Stainless steel hot water circulator pump
- Three-speed manual selector
- Rated flow: 2.03 m³/h (34 L/Min)
- Rated head: 3.47 m
- Maximum head: 6 m
- Max power input: 90 W
- Canned rotor design (no shaft seal)
- Ceramic shaft and bearings
- Stainless steel rotor can and bearing plate
- Composite corrosion-resistant impeller
- Impedance protected motor
- IP44 enclosure rating
- Port-to-port length: 150 mm
- Suitable for domestic hot water and underfloor heating
SPECIFICATIONS
| Max Flow | 34 L/Min |
| Max Head | 6 m |
| Power | 0.9 kW / 240v |
| Rated Current | 0.37 Amps |
| Suitable For | Domestic Hot Water Recirculation / Underfloor Heating |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 110°C |
| Inlet Size | 32 mm |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum water flow rate and head pressure of this pump?
Achieving strong system delivery, the Grundfos UPS 20-60N develops a maximum flow rate of 34 L/Min and a maximum dynamic head of 6 m across its operating curve.
What electrical supply parameters are needed for this pump motor?
Running on 240v power supplies, the UPS 20-60N is driven by a 0.9 kW motor rated at 0.37 Amps.
What materials make this pump durable against corrosion and wear?
High-grade Stainless Steel components in the UPS-20-60N protect internal passages against corrosive fluid contact.
What primary fluid transfer and circulation roles are designated for this pump?
Primary tasks for the UPS 20 60N include Delivering dedicated service, focuses on domestic hot water circulation loops and hydronic underfloor heating distribution, delivering efficient water management across residential and rural systems.
What warranty coverage applies to this pump for long-term peace of mind?
You receive a certified 2 Years manufacturer warranty with the UPS/20/60N, giving you long-term protection and support.
