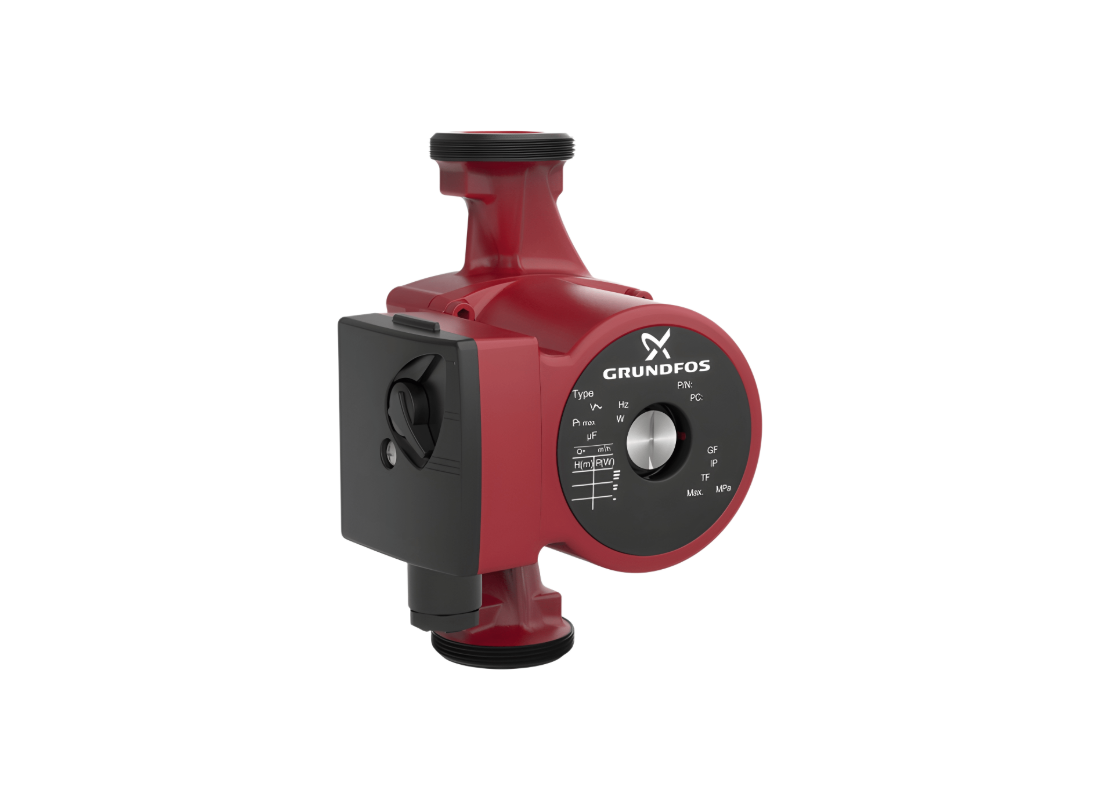

Closed-loop radiator heating systems do not carry potable water, so cast iron becomes a suitable housing material. The Grundfos UPS 25-60 is built with a cast iron pump body for those systems, positioned for standard domestic heating circuits where the circulating fluid stays within the sealed system.
At its highest speed setting, the pump delivers 31.7 L/Min against a maximum head of 6 m, powered by a 70 W motor drawing 0.3 A on a 1 x 240 V supply. Three selectable speeds step power from 50 W upward, giving installers the flexibility to balance the circuit against the actual radiator count and pipe run without oversizing the pump.
The canned rotor motor construction removes the need for a mechanical shaft seal, with the rotor and bearings lubricated directly by the circulating heating water. Liquid temperature tolerance extends from 2°C to 110°C, covering both standard radiator circuits and higher-temperature boiler setups.
An IP44 enclosure suits undercover fitting in a plant room or airing cupboard, and the compact 130 mm port-to-port body matches tighter pipe centres than the 180 mm variant. Maximum system pressure is rated to 10 bar, consistent with typical domestic heating installations.
FEATURES
- Cast iron pump housing specified for closed-loop heating systems where potable water approval is not required
- Three-speed selector permits field adjustment of pump output from 50 W to 70 W
- Canned rotor design integrates the pump and motor without a mechanical shaft seal
- Ceramic shaft and bearings are lubricated directly by the circulating heating water
- Composite impeller construction delivers consistent hydraulic performance in closed-loop water and glycol mixtures
- Liquid temperature tolerance from 2°C to 110°C covers standard radiator circuits and higher-temperature boiler installations
- Compact 130 mm port-to-port body dimension accommodates tighter pipe centres
