SKU: 96281483

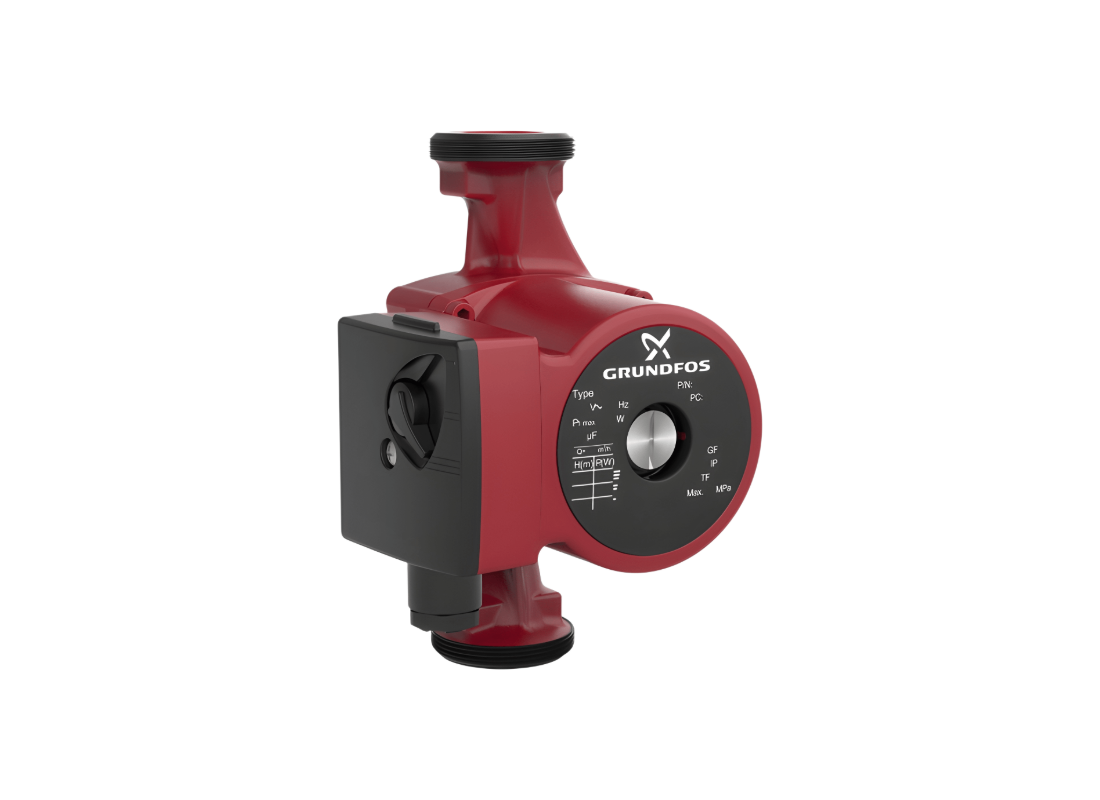

Grundfos UPS 25-60 Cast Iron Three Speed Circulator Pump for Underfloor Heating with Composite Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Underfloor heating loops and longer radiator circuits often require slightly more flow than a compact pump provides, and the 180 mm-bodied Grundfos UPS 25-60 covers that gap while retaining the cast iron construction suited to closed-loop systems. It is built for domestic heating installations where the pump sits within a sealed circuit rather than a potable water line.
At full speed the pump reaches approx. 71.8 L/Min with a maximum head up to 6 m, drawing 60 W and 0.28 A from a 1 x 240 V supply across its top setting. The three-speed switch allows output to be reduced on smaller zones, with power stepping down to 50 W at the lowest setting to match actual heat demand.
As with other models in the UPS range, a canned rotor eliminates the mechanical shaft seal, with bearings lubricated by the system water itself. The cast iron housing and composite impeller are maximum flow of liquid temperatures from 2°C to 110°C, covering both standard radiator loops and underfloor manifolds running at lower flow temperatures.
Maximum operating pressure is 10 bar, and the pump carries an IP44 enclosure rating for undercover installation. At 180 mm port-to-port with 1 1/2 inch connections, it shares its footprint with the 130 mm model's wider sibling in the cast iron heating range.
FEATURES
- Cast iron housing specified for closed-loop heating systems
- Three-speed selector permits field adjustment from 50 W to 60 W
- Canned rotor design eliminates the mechanical shaft seal
- Self-lubricating ceramic bearings are lubricated directly by the circulating system water
- Composite impeller construction delivers consistent hydraulic performance in radiator and underfloor heating applications
- Liquid temperature tolerance from 2°C to 110°C covers standard radiator circuits and low-temperature underfloor manifolds
- Extended 180 mm port-to-port body dimension accommodates longer heating circuits and standard domestic pipe spacing
SPECIFICATIONS
| Max Flow | 71.8 L/Min |
| Max Head | 6 m |
| Power | 60 W / 240v |
| Rated Current | 0.28 Amps |
| Suitable For | Underfloor Heating |
| Body Material | Cast Iron |
| Liquid Temperature | 2°C to 110°C |
| Inlet Size | 40 mm |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much fluid can this pump evacuate during peak demand?
At full operating capacity, the Grundfos UPS 25-60 moves approx. 71.8 L/Min to keep liquid levels controlled during peak inflow.
Which casing and impeller materials provide long service life in this pump?
Structural defense on the UPS 25-60 is provided by a rugged Cast Iron casing designed to withstand heavy mechanical stress.
How much electricity and current does this pump draw under load?
Running on 240 V power supplies, the UPS-25-60 is driven by a 0.06 kW motor rated at 0.28 Amps.
Can this pump operate in warm or hot water without overheating?
Routine operational thermal ceilings enable the UPS 25 60 to process liquids up to 2°C to 110°C.
What total dynamic head can this pump overcome in vertical pipework?
Vertical elevation capability on the UPS/25/60 reaches a maximum dynamic head of approximately up to 6 m under rated conditions.
