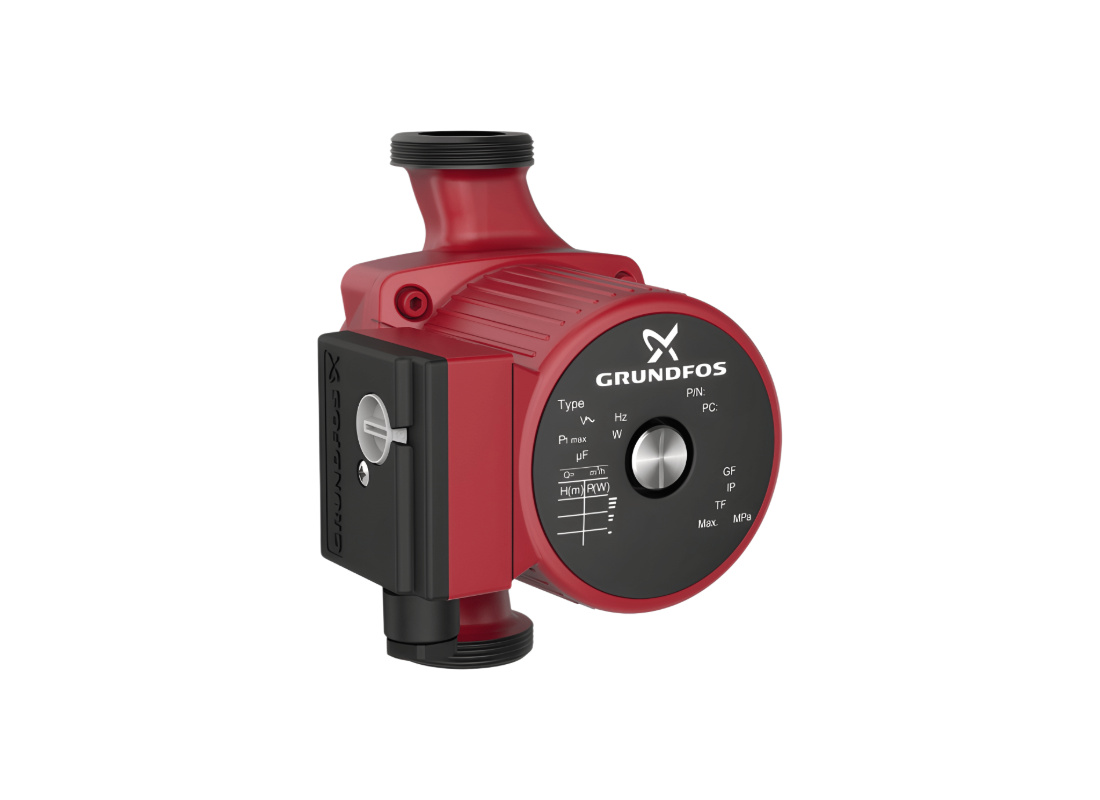

Grundfos UPS 25-80 Cast Iron Three Speed Circulator Pump for Hydronic Heating with Composite Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Larger homes with extended radiator networks or multiple heating zones place more resistance on the circulating pump than a single small loop, requiring additional head to maintain consistent flow. The Grundfos UPS 25-80 is sized to meet that requirement, with cast iron construction suited to closed-loop heating systems.
The pump delivers approx. 132 L/Min at its highest speed setting with a maximum head up to 8 m of maximum head, with power stepping from 114 W to 160 W across its three selectable speeds and current reaching 0.7 A on a 1 x 240 V supply. That head rating gives it enough reserve to overcome the pressure drop across a larger radiator count or a longer branch circuit.
A canned rotor motor removes the mechanical shaft seal, with the rotor and bearings lubricated by the heating water itself. Liquid temperature tolerance extends from -25°C to 110°C, which allows for plant rooms exposed to cold conditions before the heating season begins.
The enclosure steps up to IPX2D for improved contact protection compared with the smaller UPS 25-60 models, and internal thermal protection is built into the motor winding itself. At 180 mm port-to-port with 1 1/2 inch connections, it fits standard domestic heating pipe centres.
FEATURES
- Higher head rating of up to 8 m provides additional pressure capability for extended radiator networks and multiple heating zones
- Three-speed selector permits field adjustment from 114 W to 160 W
- Canned rotor design removes the mechanical shaft seal as a potential leak path in heating applications
- Internal thermal motor protection safeguards the winding against overload in continuous seasonal operation
- Cast iron housing specified for closed-loop heating applications where potable water approval is not required
- Liquid temperature tolerance from -25°C to 110°C accommodates plant rooms exposed to cold conditions
- IPX2D enclosure rating provides protection against dripping water and contact in service environments
- 180 mm port-to-port body dimension aligns with standard domestic heating pipe centres
SPECIFICATIONS
| Max Flow | 132 L/Min |
| Max Head | 8 m |
| Power | 0.16 kW / 240v |
| Rated Current | 0.7 Amps |
| Suitable For | Multi-Zone Heating |
| Body Material | Cast Iron |
| Liquid Temperature | -25°C to 110°C |
| Inlet Size | 40 mm |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What materials make this pump durable against corrosion and wear?
Structural defense on the Grundfos UPS 25-80 is provided by a rugged Cast Iron casing designed to withstand heavy mechanical stress.
What electrical supply parameters are needed for this pump motor?
Running on 240 V power supplies, the UPS 25-80 is driven by a 0.16 kW motor rated at 0.7 Amps.
What are the maximum installation depth and liquid temperature boundaries?
Routine operational thermal ceilings enable the UPS-25-80 to process liquids -25°C to 110°C.
How much pumping height does this pump provide?
Vertical elevation capability on the UPS 25 80 reaches a maximum dynamic head of approximately up to 8 m under rated conditions.
What peak fluid displacement volume can this pump deliver?
Fluid evacuation capacity for the UPS/25/80 peaks at approximately 132 L/Min, providing dependable high-volume drainage.
