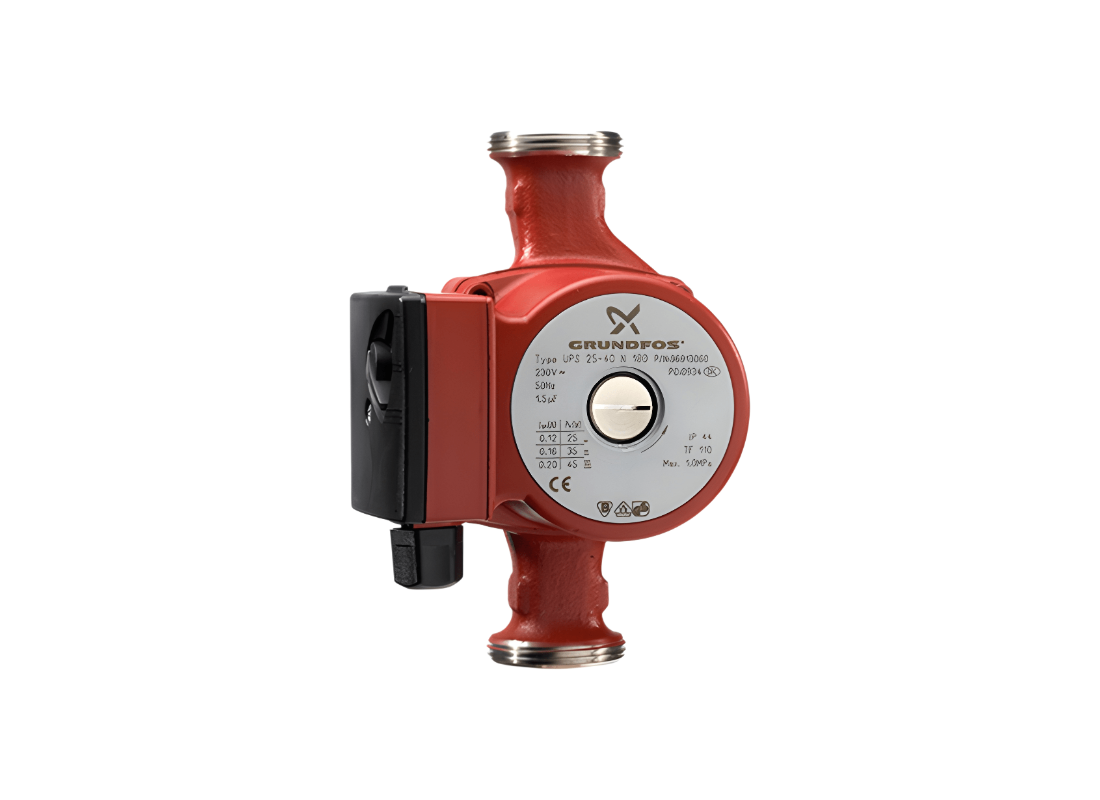

Grundfos UPS 25-80N Stainless Steel Three Speed Circulator Pump for Tankless Water Heaters with Composite Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Underfloor heating circuits and multi-zone hot water systems place more resistance on a pump than a simple recirculation loop, requiring additional head to maintain flow across extended pipe runs and manifold assemblies. The Grundfos UPS 25-80N is designed to meet that requirement, with an up to 8 m maximum head rating that keeps flow consistent across larger circuits.
On its highest speed setting the pump moves approx. 132 L/Min with a maximum head up to 8 m, with power scaling from 114 W up to 160 W across its three settings and current reaching 0.7 A at 1 x 240 V. That range allows the same unit to serve a smaller zone at reduced speed or a full underfloor loop at full output.
Construction follows the canned rotor principle used across the UPS N range, with the rotor and bearings lubricated directly by the system water rather than a separate mechanical seal. The stainless steel housing and composite impeller extend the pump's liquid temperature tolerance down to -25°C, useful in plant rooms exposed to cold conditions before start-up.
Internal thermal protection is built into the motor itself, and the enclosure carries an IPX2D rating for contact protection. At 180 mm port-to-port with 1 1/2 inch connections, it shares mounting dimensions with the smaller UPS 25-60N, simplifying upgrades where more head is later needed.
FEATURES
- Three-speed selector provides field adjustment to match pump output to the hydraulic resistance of underfloor manifolds and multi-zone configurations
- Canned rotor design integrates the pump and motor without a mechanical shaft seal
- Internal thermal motor protection safeguards the winding against overload in continuous heating service
- Stainless steel housing with potable water approval and wide temperature tolerance from -25°C to 110°C
- Composite impeller construction offers consistent hydraulic performance in heating and hot water applications
- IPX2D enclosure rating provides protection against dripping water and contact in service environments
- Canned rotor design with self-lubricating bearings supports continuous operation without routine intervention
- 180 mm port-to-port body dimension matches the mounting footprint of the smaller UPS 25-60N
SPECIFICATIONS
| Max Flow | 132 L/Min |
| Max Head | 8 m |
| Power | 0.16 kW / 240v |
| Rated Current | 0.7 Amps |
| Suitable For | Underfloor Heating |
| Body Material | Stainless Steel |
| Liquid Temperature | -25°C to 110°C |
| Inlet Size | 40 mm |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How high can this pump push fluid through discharge risers?
Pumping performance for the Grundfos UPS 25-80N provides up to 8 m of vertical dynamic lift, depending on system friction and line sizing.
What is the maximum flow capacity of this pump per minute?
Moving liquid through the system, the UPS 25-80N achieves a maximum flow of up to approx. 132 L/Min at maximum flow.
What corrosion-resistant materials are used in the wetted components?
Built with a resilient Stainless Steel body, the UPS-25-80N maintains material durability against fluid abrasion and wear.
What voltage supply and motor power does this pump need?
Connecting across 240 V lines, the UPS 25 80N draws approximately 0.7 Amps with an efficient 0.16 kW motor.
What submersion depth limits and fluid temperatures apply to this pump?
Fluid media ranging -25°C to 110°C can be circulated through the UPS/25/80N without thermal breakdown.
