SKU: 95906442

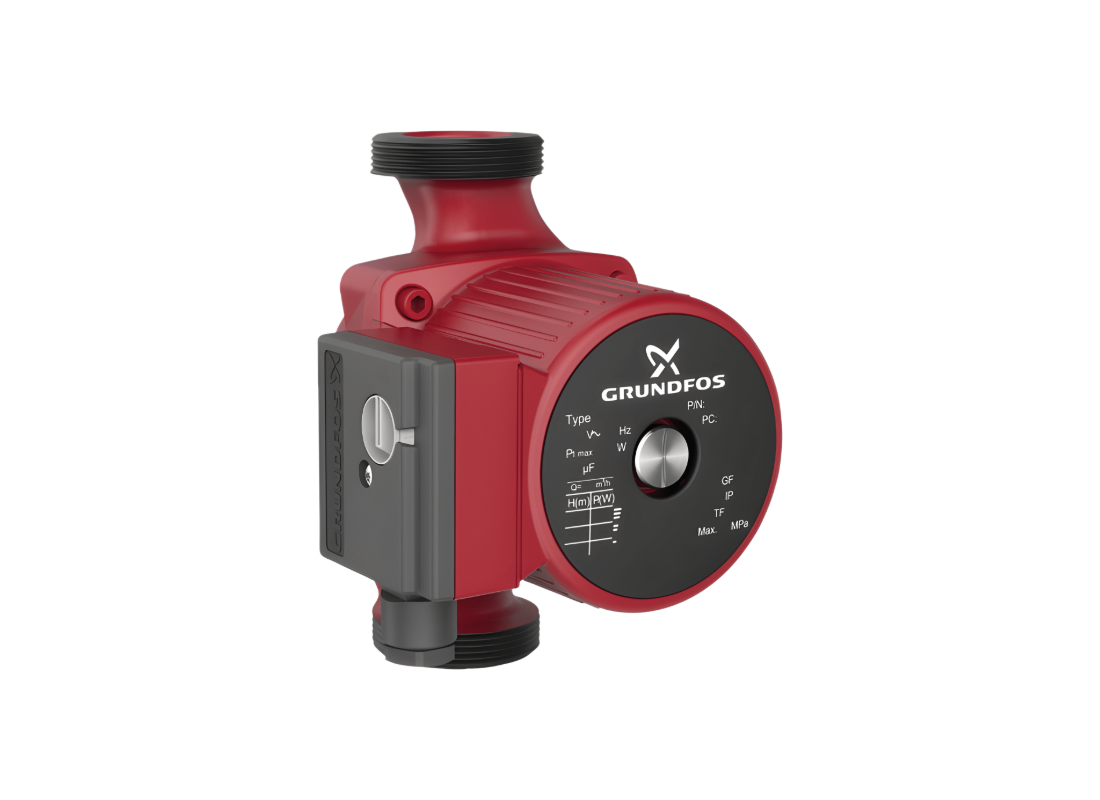

Grundfos UPS 32-80 Cast Iron Three Speed Circulator Pump for Commercial Heating with Composite Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Commercial heating installations and larger residential systems are often built on wider bore pipework from the outset to handle greater heat load. The Grundfos UPS 32-80 matches that with a 2 inch connection, sized for higher-volume closed-loop circuits where narrower connections would restrict flow.
At full speed the pump moves approx. 182 L/Min with a maximum head up to 8 m, with three selectable settings stepping power from 140 W to 230 W and current reaching 1.01 A on a 1 x 240 V supply. The wider connection reduces flow resistance at equivalent volumes compared with the 1 1/2 inch models, useful as system size and zone count increase.
Construction follows the canned rotor principle used throughout the UPS range, eliminating the mechanical shaft seal in favour of bearings lubricated directly by the circulating water. The cast iron housing suits closed-loop heating applications, with a liquid temperature range from -25°C to 110°C covering both standard and higher-temperature boiler circuits.
Internal thermal protection is built into the motor, and the IPX2D enclosure provides contact protection suited to plant room environments. At 180 mm port-to-port, the pump matches the physical footprint of the narrower-bore UPS 25 range, so upgrading from a 25 mm to a 32 mm system does not require re-spacing the connecting pipework.
FEATURES
- Larger 2 inch connections reduce flow restriction and velocity at equivalent volumes
- Three-speed selector provides performance adjustment from 140 W to 230 W
- Canned rotor design integrates the pump and motor without a mechanical shaft seal
- Internal thermal motor protection safeguards the winding against overload in continuous service
- Cast iron housing specified for closed-loop heating applications where potable water approval is not required
- Liquid temperature tolerance from -25°C to 110°C covers standard and higher-temperature boiler circuits
- IPX2D enclosure rating provides protection against dripping water and contact in service environments
- 180 mm port-to-port body dimension matches the footprint of the narrower-bore UPS 25 range
SPECIFICATIONS
| Max Flow | 182 L/Min |
| Max Head | 8 m |
| Power | 0.23 kW / 240v |
| Rated Current | 1.01 Amps |
| Suitable For | Commercial Heating |
| Body Material | Cast Iron |
| Liquid Temperature | -25°C to 110°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What kind of power supply does this pump require to run?
Running on 240 V power supplies, the Grundfos UPS 32-80 is driven by a 0.23 kW motor rated at 1.01 Amps.
Can this pump operate in warm or hot water without overheating?
Routine operational thermal ceilings enable the UPS 32-80 to process liquids -25°C to 110°C.
What maximum vertical water column can this pump maintain?
Vertical elevation capability on the UPS-32-80 reaches a maximum dynamic head of approximately up to 8 m under rated conditions.
What discharge flow rate does this pump maintain during peak operation?
Fluid evacuation capacity for the UPS 32 80 peaks at approximately 182 L/Min, providing dependable high-volume drainage.
What metallurgy is selected for the pump body to resist abrasive wear?
Manufactured with quality materials, the UPS/32/80 incorporates Cast Iron for dependable longevity and resistance to fluid erosion.
