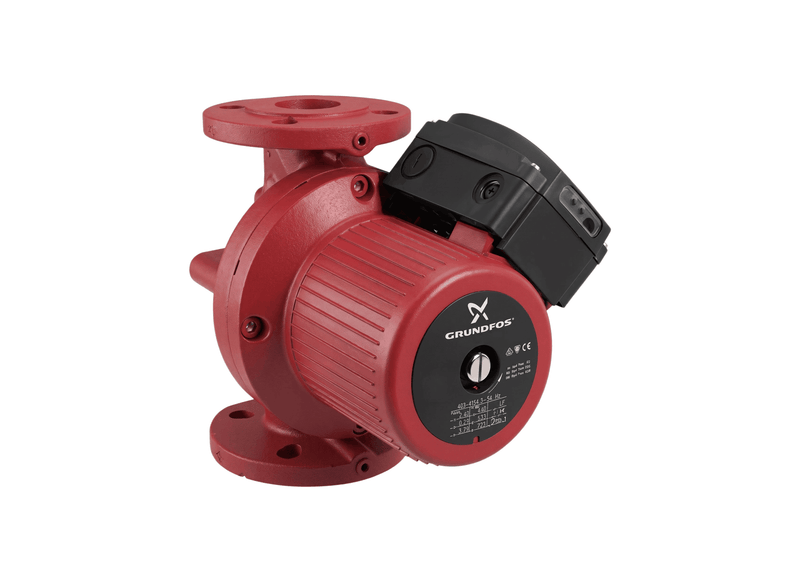

Grundfos UPS 40-120 F Cast Iron Three Speed Circulator Pump with Stainless Steel Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Designed for higher system resistance, the Grundfos UPS 40-120 F generates double the head capacity of standard 40 mm circulators in commercial building installations. It operates within multi-storey hydronic heating risers, fan coil distribution loops, and secondary heat exchanger circuits.
The 250 mm port-to-port casing is manufactured from EN-GJL-250 cast iron, housing an AISI 304 stainless steel impeller, stainless steel rotor can, and bearing plate. Built for working pressures up to 10 bar, the unit accommodates circulating fluid temperatures from -10°C to 120°C with an overall weight of 18.3 kg.
The motor has a maximum power input (P1) of 470 W at 2.2 A on a 1 x 230-240 V 50 Hz power supply across three manual speed steps. The hydraulic assembly produces a maximum head of 12 m and a rated flow rate of 10.6 m³/h (177 L/Min) connected via standard DN 40 DIN flanges.
Fluid-lubricated ceramic radial bearings and a carbon axial bearing remove mechanical seal wear inside the canned rotor chamber. Motor windings incorporate Class H insulation inside an IPX4D casing, backed by integrated thermal switches for motor winding protection.
FEATURES
- Three manual speed selections provide adjustment for high-resistance piping runs
- Maximum head capability of 12 m accommodates multi-level heating distribution
- Cast iron pump housing EN-GJL-250 engineered for closed-loop commercial heating
- Fabricated AISI 304 stainless steel impeller resists erosive wear under elevated head
- DN 40 dual-rated PN 6/PN 10 flanged ports enable universal installation alignment
- Thermal winding switches built into the stator connect directly to external trip circuits
- Canned rotor motor design operates without variable mechanical shaft seals
SPECIFICATIONS
| Max Flow | 177 L/Min |
| Max Head | 12 m |
| Power | 0.47 kW / 240v |
| Rated Current | 2.2 Amps |
| Suitable For | Commercial Hydronic Circulation |
| Body Material | Cast Iron |
| Liquid Temperature | '-10°C to 120°C |
| Inlet Size | 40 mm |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How many meters of dynamic lift does this pump provide?
Fluid elevation through vertical risers reaches up to 12 m with the Grundfos UPS 40-120 F under standard duty points.
How much fluid throughput does this pump move under full load?
Discharge throughput on the UPS 40-120 F reaches a maximum flow rate of approximately 177 L/Min through a DN 40 connection under standard operating conditions.
What materials make this pump durable against corrosion and wear?
Wetted components on the UPS-40-120-F are crafted from high-grade Cast Iron to maintain physical integrity and resist abrasive wear.
What electrical voltage and motor kilowatt output drive this unit?
Electrical power for the UPS 40 120 F requires a 240 V connection, driving an efficient 0.47 kW motor that draws 2.2 Amps.
What are the maximum installation depth and liquid temperature boundaries?
Liquid operating limits establish that the UPS/40/120/F accommodates temperatures -10°C to 120°C during standard duties.
