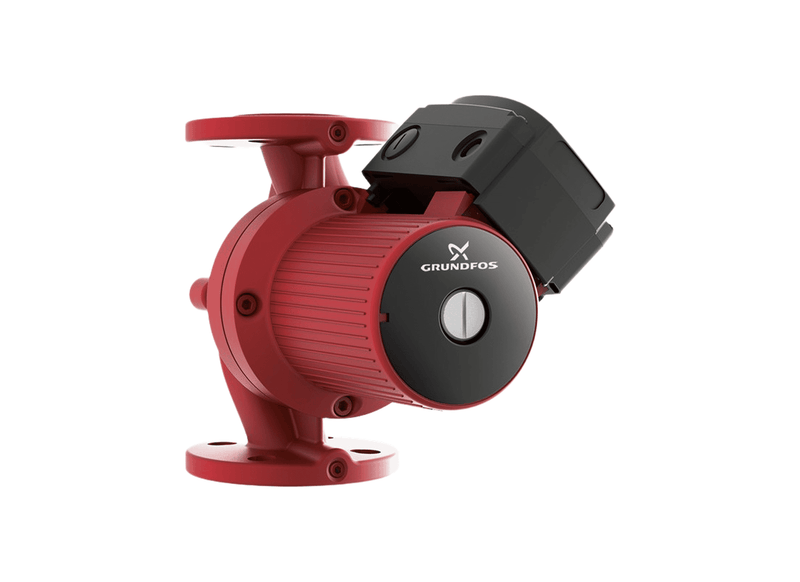

Grundfos UPS 40-60/2 F Cast Iron 415V Three Speed Circulator Pump with Stainless Steel Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Engineered for plant rooms with three-phase power infrastructure, the Grundfos UPS 40-60/2 F 415V circulator pump serves commercial radiator banks and secondary chilled water circuits. It integrates into central boiler circuits and air handling unit coils requiring balanced electrical phase loading.
A rugged cast iron EN-GJL-250 pump housing at 250 mm port-to-port dimension encases a laser-welded EN 1.4301 stainless steel impeller and aluminium alloy stator housing. The pump body is rated for 10 bar working pressure and liquid media temperatures ranging from -10°C to 120°C, weighing 16.6 kg.
The 3-phase 400-415 V 50 Hz motor has a maximum power input (P1) of 250 W and draws up to 250 W at 0.46 A on speed 3, providing three switchable operational curves. Hydraulic output provides maximum a calculated flow of 11.2 m³/h (187 L/Min) with a maximum head of 4.32 m through standard DN 40 DIN flanged pipe ports.
Liquid-lubricated ceramic radial bearings deliver quiet operation without external grease points or replacement seals. Stator windings feature Class F insulation and built-in thermal contacts inside an IPX4D housing for installation in commercial mechanical rooms.
FEATURES
- Three-phase 400-415 V 50 Hz motor winding distributes electrical load across phases
- Three selectable speed settings allow commissioning against design flow requirements
- Cast iron casing EN-GJL-250 handles system pressures up to 10 bar (PN 6/10)
- Stainless steel AISI 304 impeller provides long-term hydraulic stability
- Sealless canned rotor arrangement avoids fluid leakage in plant room installations
- Built-in thermal overload protection contacts facilitate external interlock wiring
- Standard DN 40 flanged connections align with EN 1092-2 commercial pipe systems
SPECIFICATIONS
| Max Flow | 187 L/Min |
| Max Head | 6 m |
| Power | 0.15 kW / 415v |
| Rated Current | 0.46 Amps |
| Suitable For | Three Phase Heating Plant Rooms |
| Body Material | Cast Iron |
| Liquid Temperature | '-10°C to 120°C |
| Inlet Size | 40 mm |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much fluid can this pump evacuate during peak demand?
Discharge throughput on the Grundfos UPS 40-60/2 F reaches a maximum flow rate of approximately 187 L/Min through a DN 40 connection under standard operating conditions.
Which casing and impeller materials provide long service life in this pump?
Wetted components on the UPS 40-60/2 F are crafted from high-grade Cast Iron to maintain physical integrity and resist abrasive wear.
How much electricity and current does this pump draw under load?
Electrical power for the UPS-40-60-2-F requires a 415 V connection, driving an efficient 0.15 kW motor that draws 0.46 Amps.
Can this pump operate in warm or hot water without overheating?
Liquid operating limits establish that the UPS 40 60 2 F accommodates temperatures -10°C to 120°C during standard duties.
What total dynamic head can this pump overcome in vertical pipework?
Dynamic lift generated by the UPS/40/60/2/F reaches a maximum elevation head of approximately 6 m across discharge lines.
