SKU: 10HM04S-MSC22

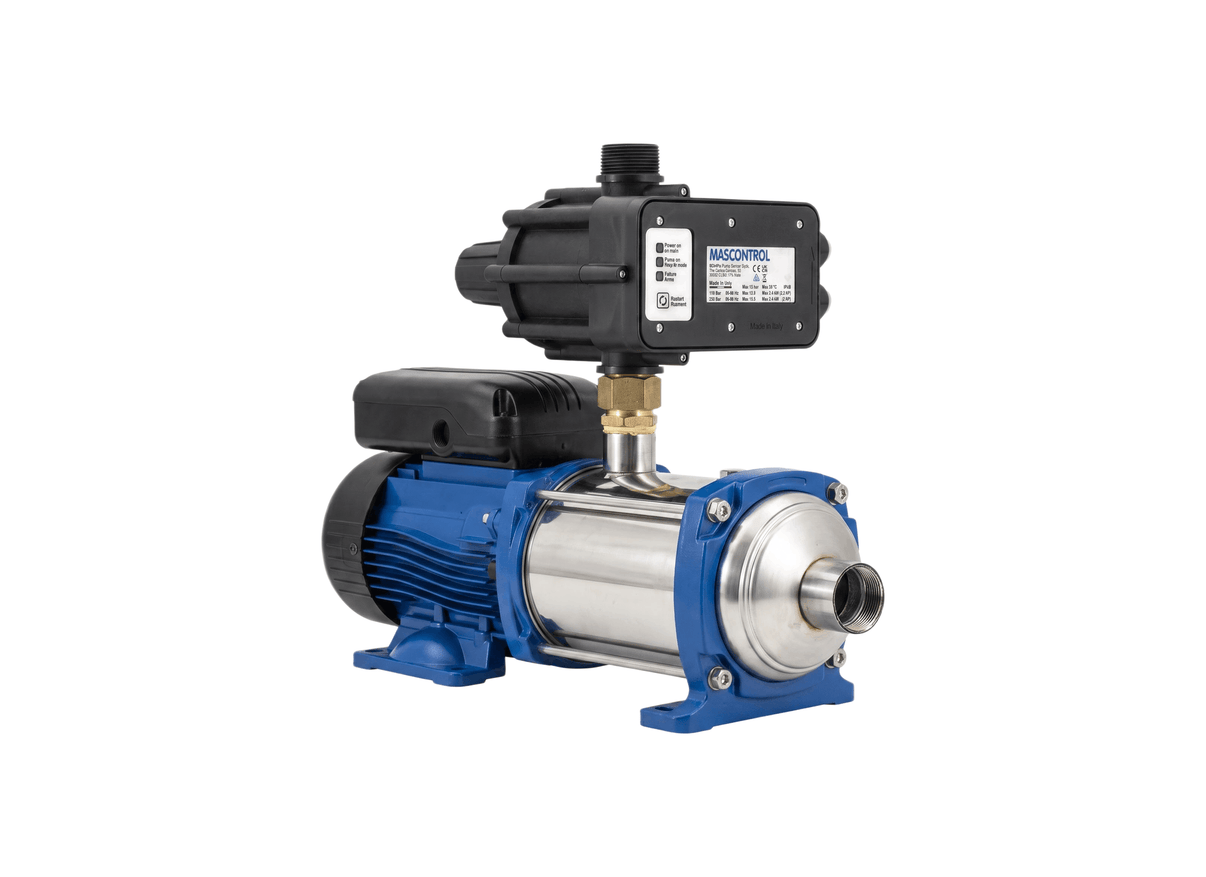

Lowara 10HM04S-MSC22 Stainless Steel Multistage Pressure Pump for Water Boosting with Mas-Control Controller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara 10HM04S-MSC22 is a high-flow pressure-boosting system with stainless steel hydraulics, combining a 43.5-metre pump with a Mas-Control electronic pressure controller. This packaged unit is intended for commercial and light industrial applications requiring substantial flow capacity and corrosion resistance in clean water service.
The AISI 304 stainless steel pump body and impellers deliver a maximum head of approximately 43.5 metres and a maximum flow rate of 233 litres per minute. The 1.5 kW motor operates on 220-240 V single-phase, drawing 8.11 Amps. Suction is Rp 40 mm and discharge is Rp 32 mm. The pump handles clean liquids up to 60°C.
The Mas-Control controller provides automatic pump start-stop based on system pressure. The mechanical seal is ceramic, carbon, and EPDM. The motor enclosure is IP55 with Class F insulation. Thermal protection is provided by an automatic reset overload device. The horizontal configuration is designed for floor mounting.
Installation requires a level, frost-protected surface with adequate ventilation. The pre-wired terminal junction box simplifies electrical connection. The pump is certified for drinking water use under WRAS and ACS. This system is suited to commercial applications requiring substantial flow with automated control.
FEATURES
- Mas-Control electronic controller provides automatic pump start-stop operation.
- AISI 304 stainless steel pump body and impellers for corrosion resistance.
- Rp 40 mm suction and Rp 32 mm discharge connections for high flow capacity.
- IP55 motor enclosure protects against dust and moisture ingress.
- WRAS and ACS certification for drinking water use.
- Automatic reset thermal protection safeguards the motor during operation.
- Controller-based design eliminates the need for a separate pressure vessel.
SPECIFICATIONS
| Max Flow | 233 L/Min |
| Max Head | 43.5 m |
| Power | 1.5 kW / 240v |
| Rated Current | 8.11 Amps |
| Suitable For | Water Supply / Irrigation |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | Maximum 60°C |
| Inlet Size | 40 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Where is the Lowara 10HM04S-MSC22 best suited to be installed?
The high-flow Lowara 10HM04S-MSC22 is designed for heavy-duty jobs like commercial building water boosting, apartment blocks, farm washdowns, and large turf irrigation systems needing up to 233 litres per minute.
What materials is the Lowara 10HM04S_MSC22 made from and can it handle warm water?
It's built with a 304 stainless steel body and stainless steel impellers, so it won't rust or corrode over time. It easily handles clean water at temperatures up to 60°C.
Does the Lowara 10HM04S MSC22 require a lot of ongoing maintenance?
Not at all. It's designed for hassle-free daily operation with long-life sealed bearings and heavy-duty mechanical shaft seals. Just keep your water inlet strainer clear and it'll run reliably for years.
Is the Lowara 10HM04S/MSC22 motor safe to install outside in the weather?
Yes, it is. The 1.5 kW motor has an IP55 weatherproof casing, so it handles rain, dust, and outdoor conditions with no trouble. It plugs into standard home power and includes built-in thermal overload protection.
