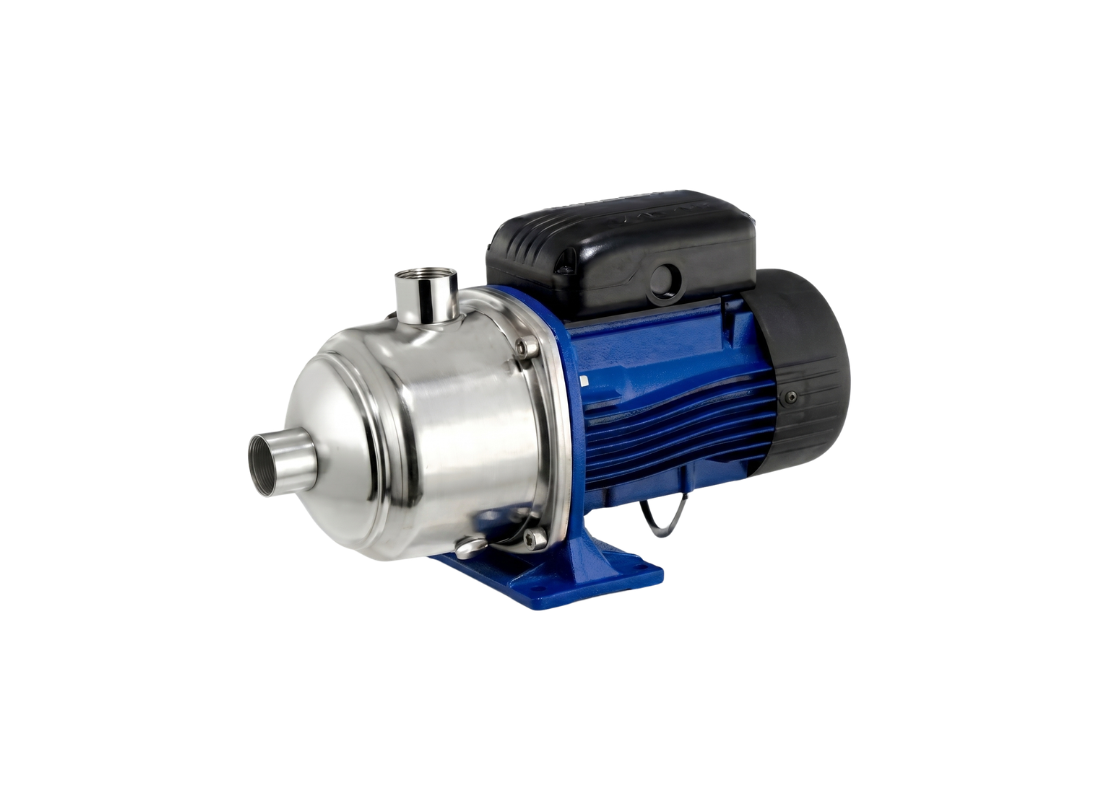

Lowara 10HM05P30T Stainless Steel Stable Multistage Centrifugal Pump for Supply with Technopolymer Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara 10HM05P30T provides efficient and reliable pumping performance. Engineered for demanding industrial and commercial environments, this horizontal multistage pump serves critical roles in automated cleaning, process water circulation, and high-pressure supply systems. It is particularly effective in vehicle wash installations and specialized filtration processes where consistent hydraulic output is essential for peak operational success.
The unit operates with a maximum power of 3 kW / 415v and utilizes a sophisticated hydraulic design to achieve impressive performance benchmarks. It delivers a capacity characterized by Max Head 56.4 m and Max Flow 233 L/Min. These figures ensure rapid movement of liquid through demanding piping arrays while maintaining stable pressure.
Built for longevity, the pump body features AISI 304 stainless steel, paired with advanced technopolymer impellers that balance hydraulic efficiency with corrosion resistance. The integrated motor configuration supports continuous-duty cycles, incorporating a specialized mechanical seal system that ensures low-maintenance operation across a broad range of thermal conditions.
Plumbing installation is streamlined with a 40 mm inlet and a 32 mm outlet, compatible with standard industrial configurations. The pump assembly provides high structural integrity through its stainless steel sleeve design, protecting internal components while allowing for secure mounting in space-constrained mechanical rooms or exterior climate-controlled enclosures.
Features:
- Certified WRAS and ACS standards for safe clean water handling
- Balanced impeller configuration to reduce axial bearing stress
- High-efficiency motor design aligned with IE3 energy standards
- Sleeve construction optimized for high-pressure industrial duty
- IPX5 protection rating for reliable performance in wash environments
- Metric cable glands compliant with EN 50262 for secure wiring
SPECIFICATIONS
| Max Flow | 233 L/Min |
| Max Head | 56.4 m |
| Power | 3 kW / 415v |
| Rated Current | 5.87 Amps |
| Suitable For | Industrial Wash and Process Water Handling |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | Maximum 90°C |
| Inlet Size | 40 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Where is horizontal mounting recommended for this large pump and how is reverse backflow stopped?
Securing the 10HM05P30T in a horizontal orientation on a level foundation base with drainage ensures proper operation, while an external check valve protects the system against reverse flow.
What maximum lift head and vertical elevation pressure can this heavy pump achieve?
Lifting clean water upward through elevation rises, the 10HM-05P-30T attains a maximum dynamic head performance of approximately 76.6 m.
What maximum water flow rate does this industrial multistage pump deliver through its outlet?
Discharging through its outlet port, the 10HM 05P 30T delivers a peak water flow rate of approximately 233 L/Min utilizing Rp 1-1/2" (40 mm) suction and Rp 1-1/4" (32 mm) discharge.
Which construction alloys and polymer impellers ensure durability against corrosion in heavy service?
Metallurgical construction of the 10HM_05P_30T pairs an AISI 304 stainless steel casing alloy with precision-molded polymer impellers and EPDM elastomer seals to prevent chemical corrosion.
What three-phase supply voltage and electrical power rating in kilowatt run this heavy pump?
Electrical supply requirements for the 10HM05P30T comprise a 380–415 V, 50 Hz, three-phase feed, energizing the 3.0 kW (4.0 HP) motor power at an electrical current of 5.83 A.
