SKU: 10HM06P30T

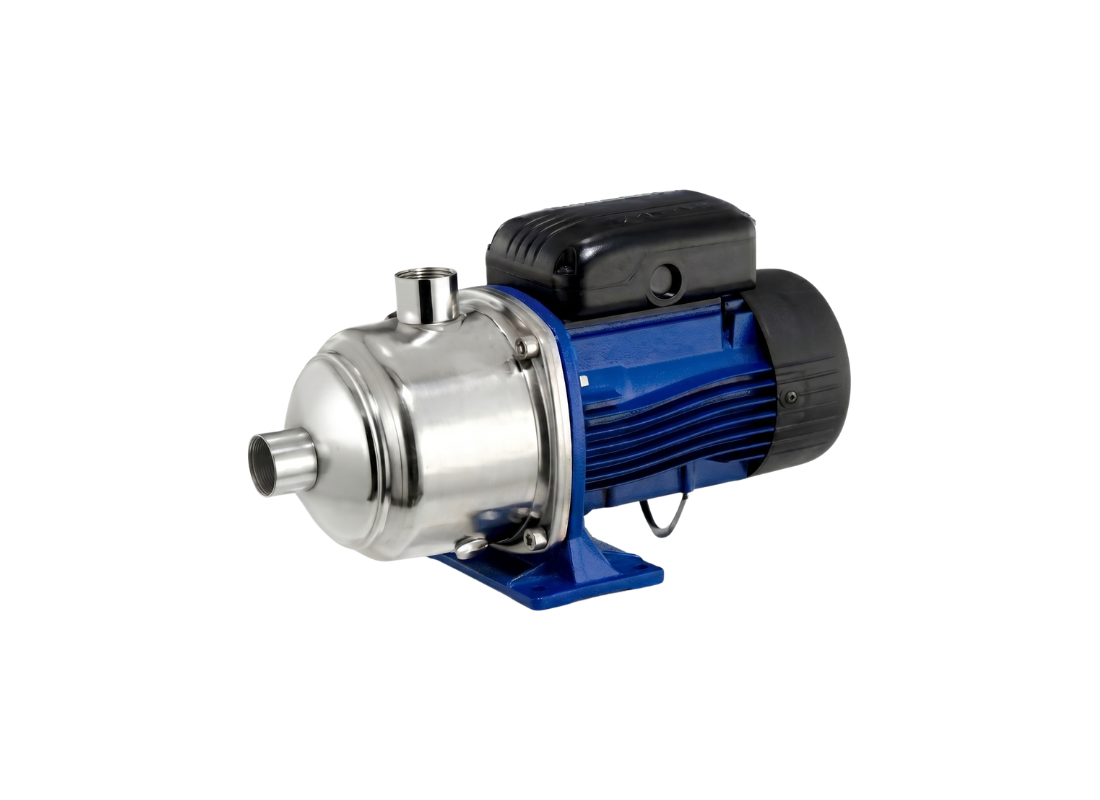

Lowara 10HM06P30T Stainless Steel Robust Multistage Centrifugal Pump for Washing with Technopolymer Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Engineered for demanding industrial washing and cleaning environments, the Lowara 10HM06P30T horizontal multistage centrifugal pump provides reliable pressure boosting and process water handling. This unit is tailored for commercial building services where consistent, high-volume flow is essential. By integrating an advanced sleeve-design configuration, this pump delivers consistent operation in diverse, demanding applications ranging from vehicle wash systems to secondary water treatment processes.
The system achieves a maximum hydraulic output of Max Head 67.1 m and Max Flow 233 L/Min, driven by a 3 kW / 415v three-phase motor. Featuring robust stainless steel hydraulic casing and precision-engineered Technopolymer internals, it balances energy efficiency with long-term mechanical durability. With a 40mm inlet and 32mm outlet, the design minimizes friction losses to ensure efficient power transfer across extended operational cycles.
Core performance is driven by a two-pole, fan-cooled motor configuration, designed to meet modern energy efficiency standards. The internal geometry reduces axial thrust, which significantly mitigates wear on the motor bearings during continuous duty. This technical foundation allows for reliable performance in applications requiring high pressures and consistent flow, while the modular sleeve construction simplifies access for internal inspection and maintenance.
Installation suitability is maximized through a compact design that enables efficient space utilization in plant rooms and industrial facilities. The unit is constructed for resilience, utilizing high-grade AISI 304 stainless steel for the external body and sealing components. Safety and operational readiness are supported by the integrated TEFC motor protection, which safeguards electrical components in various ambient environments while maintaining precise hydraulic control for complex water systems.
Features:
- Integrated 2-pole TEFC motor designed for IE3 efficiency compliance
- Reinforced AISI 304 stainless steel hydraulic casing for pressure resistance
- Engineered Technopolymer components optimized for liquid stability
- Compliant with EN 60034-5 IP55 motor protection standards
- Balanced mechanical assembly for reduced noise and vibrational fatigue
- Standardized metric cable gland configuration for secure installation
SPECIFICATIONS
| Max Flow | 233 L/Min |
| Max Head | 67.1 m |
| Power | 3 kW / 415v |
| Rated Current | 6.32 Amps |
| Suitable For | Industrial Washing and Cleaning Systems |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | Maximum 90°C |
| Inlet Size | 40 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What peak dynamic head elevation is delivered by this high-pressure multistage unit?
Operating across vertical piping runs, the 10HM06P30T produces a maximum dynamic head of approximately 91.7 m to lift clean water upward.
What peak fluid delivery volume is discharged through the outlet port of this booster?
Delivering high fluid volume, the 10HM-06P-30T discharges a peak delivery flow rate of approximately 233 L/Min through its Rp 1-1/2" (40 mm) suction and Rp 1-1/4" (32 mm) discharge.
How does the stainless alloy construction safeguard this high-stage pump against fluid corrosion?
Defending against fluid corrosion and chemical attack, the 10HM 06P 30T features an AISI 304 stainless steel casing alloy with technopolymer impellers and durable ceramic/carbon/EPDM mechanical seal construction.
What electrical power consumption in kilowatt and motor current feed this large three-phase unit?
Operating on a 380–415 V, 50 Hz, three-phase power supply, the 10HM_06P_30T features an electrical motor power rating of 3.0 kW (4.0 HP) drawing an electrical full-load current of 6.45 A.
How should this high-pressure multistage pump be secured on a horizontal base to ensure drainage?
Mounting the 10HM06P30T requires a rigid level horizontal foundation base with adequate drainage, alongside an external in-line non-return check valve to prevent reverse flow and backflow.
