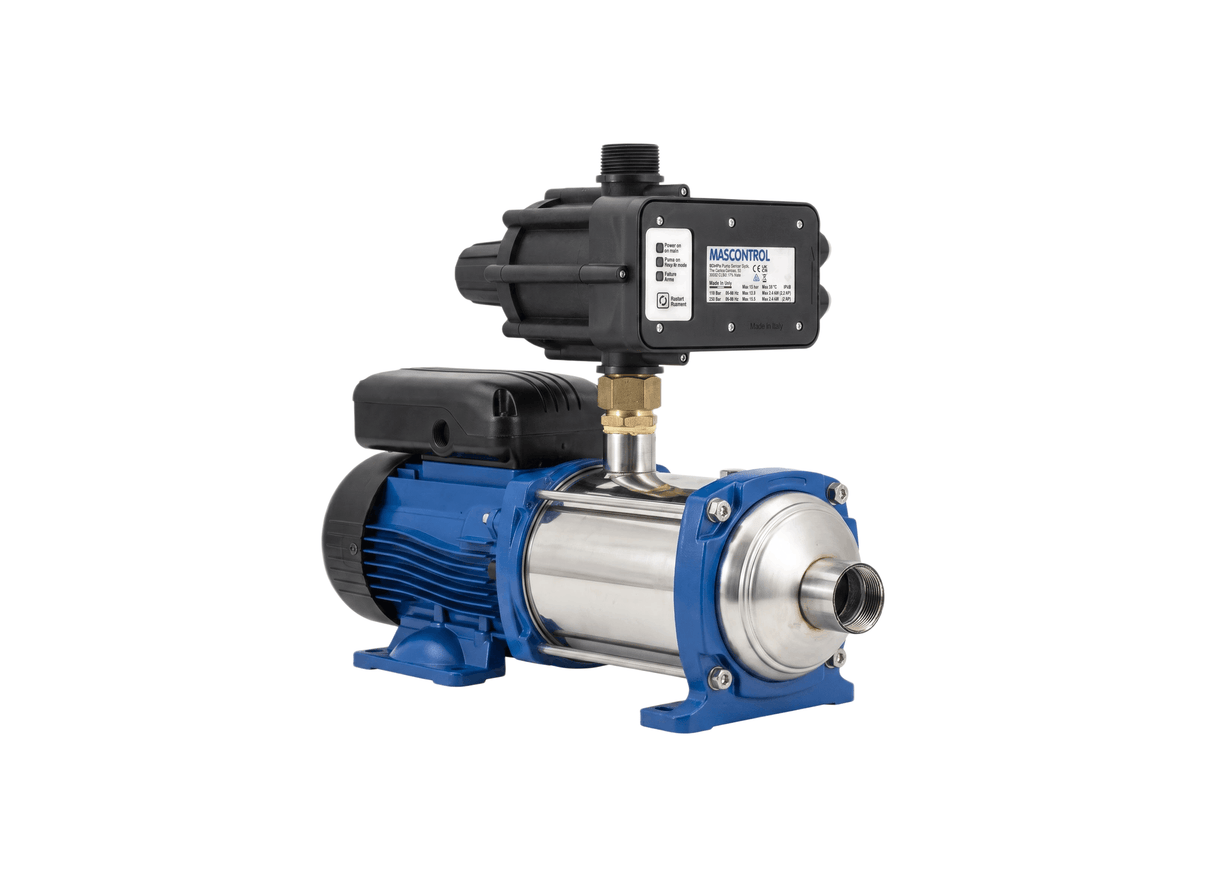

Lowara 10HM06S-MSC22 Stainless Steel Multistage Pressure Pump for Building Supply with Mas-Control Controller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
For large-scale commercial water boosting and light industrial applications requiring maximum flow capacity, the Lowara 10HM06S-MSC22 combines a 65.5-metre pump with stainless steel hydraulics and a Mas-Control electronic pressure controller. This high-capacity packaged unit is intended for commercial buildings, industrial processing, and large irrigation systems where substantial water volumes and automated pressure control are essential for reliable operation.
Constructed from AISI 304 stainless steel throughout the hydraulic assembly, the pump delivers a maximum head of approximately 65.5 metres and a maximum flow rate of 233 litres per minute. The 2.2 kW motor operates on a 220-240 V single-phase supply, drawing 11.5 Amps at rated load. Suction is Rp 40 mm and discharge is Rp 32 mm, both threaded. The pump handles clean liquids at temperatures up to 60°C.
The Mas-Control electronic controller provides automatic pump start-stop based on system pressure. The mechanical seal is ceramic, carbon, and EPDM. The motor enclosure is IP55 with Class F insulation, and automatic reset thermal overload protection is incorporated as standard. The horizontal close-coupled configuration is designed for floor mounting in commercial plant rooms.
Installation requires a level, frost-protected surface with adequate ventilation. The pre-wired terminal junction box simplifies electrical connection. The pump is certified for drinking water use under WRAS and ACS. This system is intended for demanding commercial applications requiring maximum flow, head, and automated control without a separate pressure vessel.
FEATURES
- Mas-Control electronic controller provides automatic pump start-stop operation.
- AISI 304 stainless steel pump body and impellers for corrosion resistance.
- 2.2 kW motor provides substantial head and flow capability.
- Rp 40 mm suction and Rp 32 mm discharge connections for high flow capacity.
- IP55 motor enclosure protects against dust and moisture ingress.
- WRAS and ACS certification for drinking water use.
- Controller-based design eliminates the need for a separate pressure vessel.
SPECIFICATIONS
| Max Flow | 233 L/Min |
| Max Head | 65.5 m |
| Power | 2.2 kW / 240v |
| Rated Current | 11.5 Amps |
| Suitable For | Water Supply / Irrigation |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | Maximum 60°C |
| Inlet Size | 40 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water flow and pressure can I get from the Lowara 10HM06S MSC22?
You get up to 233 litres per minute of water flow and a max pressure head of 65.5 metres. That's plenty of punch to run multiple showers, taps, or garden hoses at the same time without annoying pressure drops.
What materials is the Lowara 10HM06S_MSC22 made from and can it handle warm water?
It's built with a 304 stainless steel body and stainless steel impellers, so it won't rust or corrode over time. It easily handles clean water at temperatures up to 60°C.
Is the Lowara 10HM06S/MSC22 motor safe to install outside in the weather?
Yes, it is. The 2.2 kW motor has an IP55 weatherproof casing, so it handles rain, dust, and outdoor conditions with no trouble. It plugs into standard home power and includes built-in thermal overload protection.
Where is the Lowara 10HM06S-MSC22 best suited to be installed?
The high-flow Lowara 10HM06S-MSC22 is designed for heavy-duty jobs like commercial building water boosting, apartment blocks, farm washdowns, and large turf irrigation systems needing up to 233 litres per minute.
