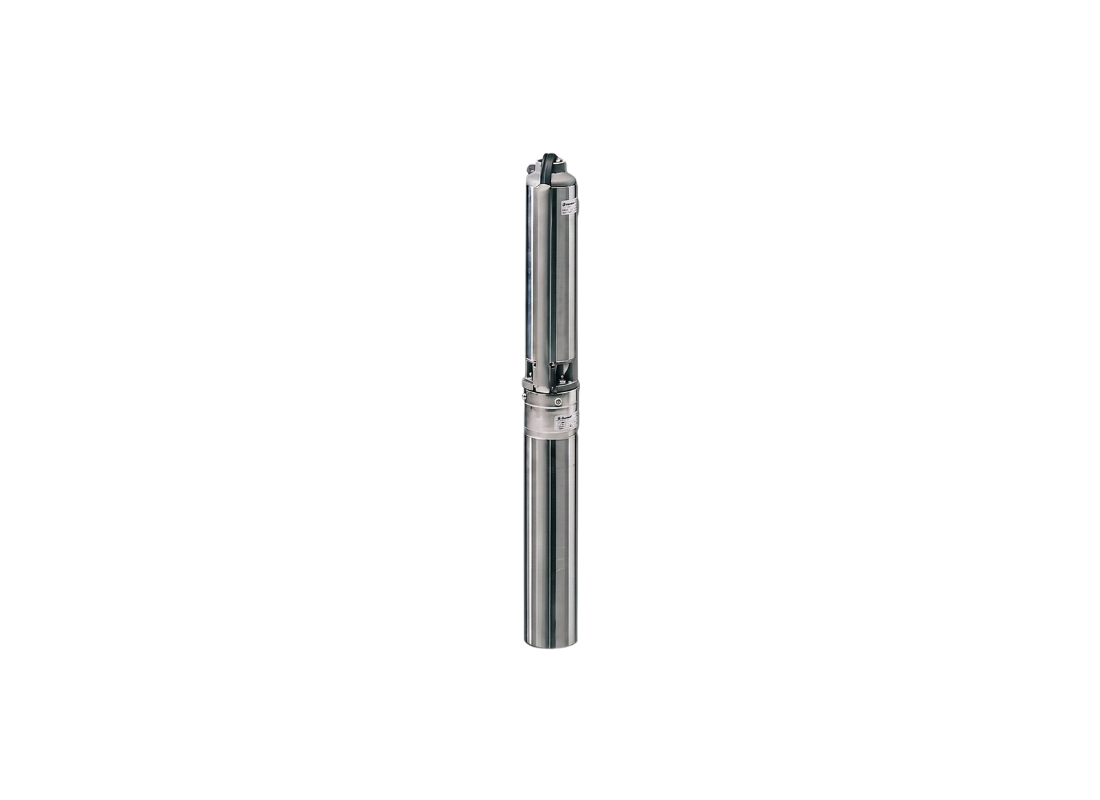

Lowara 12GS40-3 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Extreme lift requirements in industrial water supply and deep municipal fluid distribution demand pumps that deliver superior groundwater extraction. The Lowara 12GS40-3, a three-phase submersible bore pump, handles continuous operation from 4-inch boreholes where reliable high-volume, high-head delivery is essential. Its floating impeller configuration supports performance in water containing suspended solids.
A 4.0 kW three-phase motor on 415 V draws 9.8 Amps during normal operation. Maximum flow reaches 250 L/Min, while maximum head extends to 100.9 metres at shut-off. The motor requires a minimum fluid velocity of 8 cm/s around the casing for effective cooling, and supports up to 30 starts per hour. This performance suits applications requiring substantial lift and volume.
Inside the hydraulic section, floating impellers allow suspended particles up to 150 g/m³ to pass without compromising internal clearances. The hexagonal pump shaft delivers torque reliably across all stages, while the front wear ring works with the floating impeller to improve abrasion resistance. An integrated stainless steel check valve prevents destructive backflow when the motor stops.
Precision-cast stainless steel upper and lower support brackets maintain alignment between the pump and motor. The 99 mm diameter casing fits standard 4-inch boreholes, with a 50 mm threaded outlet. Rated for continuous immersion in liquids up to 35°C, the complete unit comes with a heatshrink kit for secure electrical connections.
FEATURES
- Floating impeller system handles abrasive groundwater without performance loss
- Hexagonal stainless steel shaft provides effective drive across all pump stages
- Front wear ring improves resistance to abrasive wear in sandy conditions
- Integrated non-return valve prevents reverse flow on motor shutdown
- AISI 304 stainless steel construction offers corrosion resistance during submersion
- Technopolymer impeller reduces starting torque requirements
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 250 L/Min |
| Max Head | 100 m |
| Power | 4 kW / 415v |
| Rated Current | 9.8 Amps |
| Suitable For | Industrial Supply |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum lift height of this high-head municipal pump?
Reaching significant lift, the 12GS40-3 achieves a maximum head of 100.9 metres at shut-off with flow up to 250 L/Min.
What electrical current does this 4 kW three-phase motor draw?
Operating on a 415 V three-phase supply, the 4.0 kW motor in the 12GS-40-3 draws 9.8 Amps.
What minimum water flow velocity is required around the casing for motor cooling?
The motor of the 12GS 40 3 requires a minimum fluid velocity of 8 cm/s past the casing for effective cooling.
What discharge connection size is provided on this unit?
The 12GS_40_3 features a 50 mm threaded outlet designed for secure connection to rising mains.
Does this pump include an internal check valve to stop water hammer?
An integrated stainless steel check valve in the 12GS40-3 prevents destructive backflow when the motor stops.
