SKU: 12GS75-3

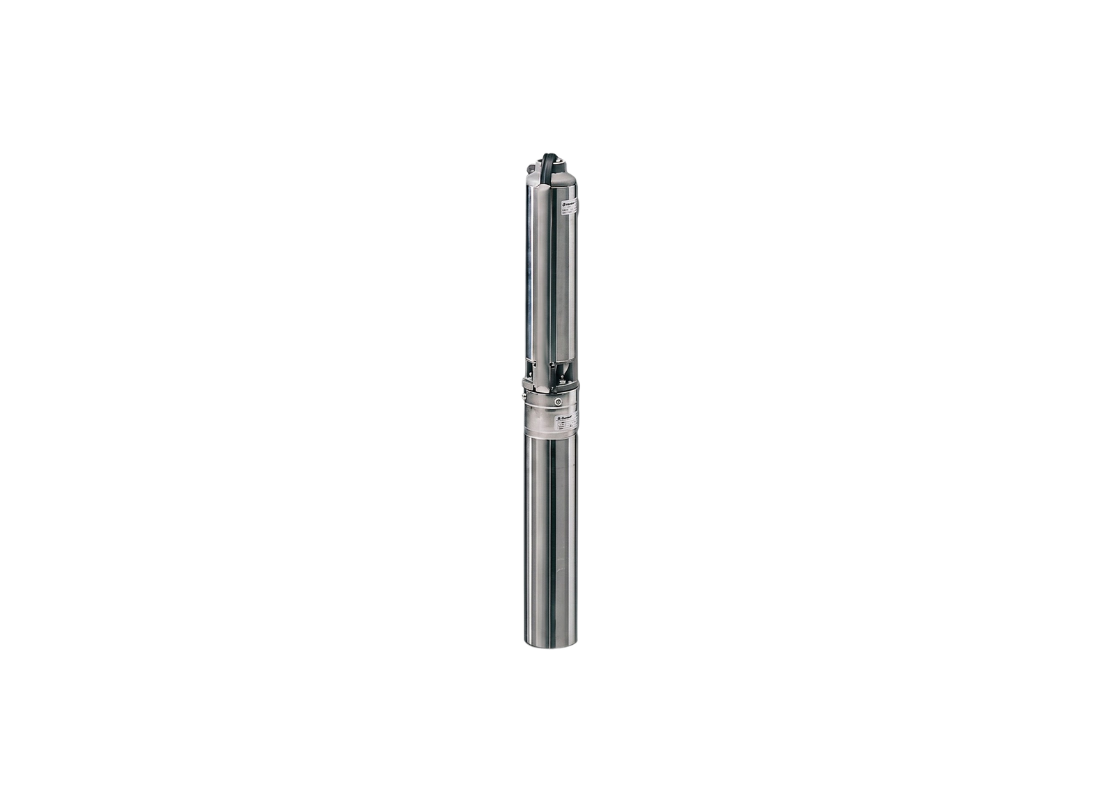

Lowara 12GS75-3 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Expansive industrial water supply and demanding agricultural irrigation require pumps that ensure uninterrupted groundwater extraction. The Lowara 12GS75-3, a three-phase submersible bore pump, handles continuous operation from 4-inch boreholes where reliable high-volume, high-head delivery is essential. Its floating impeller configuration supports performance in water containing suspended solids.
A 7.5 kW three-phase motor on 415 V draws 18.7 Amps during normal operation. Maximum flow reaches 250 L/Min, while maximum head extends to 178.4 metres at shut-off. The motor requires a minimum fluid velocity of 8 cm/s around the casing for adequate cooling, and supports up to 30 starts per hour. This combination suits applications requiring extreme lift and substantial volume.
Floating stack construction permits sand concentrations up to 150 g/m³ to pass without compromising internal clearances. The hexagonal pump shaft ensures reliable torque transfer across all stages, while the front wear ring works with the floating impeller to improve abrasion resistance. An integrated stainless steel check valve prevents destructive backflow when the motor stops.
Precision-cast stainless steel upper and lower support brackets maintain alignment between the pump and motor. The 99 mm casing diameter fits standard 4-inch boreholes, with a 50 mm threaded outlet. Rated for continuous submersion in liquids up to 35°C, the complete package includes a heatshrink kit for waterproof electrical connections.
FEATURES
- Floating hydraulic stack allows sand and abrasives to pass without binding
- Hexagonal stainless steel shaft ensures effective impeller drive without slippage
- Front wear ring improves abrasion resistance in sandy groundwater conditions
- Integrated non-return valve stops reverse flow when the pump shuts down
- AISI 304 stainless steel casing resists corrosion during long-term submersion
- Technopolymer impeller reduces starting torque for smoother motor operation
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 250 L/Min |
| Max Head | 178 m |
| Power | 7.5 kW / 415v |
| Rated Current | 18.7 Amps |
| Suitable For | Industrial Supply |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum shut-off head for this large-scale agricultural pump?
Delivering exceptional vertical lift, the 12GS75-3 achieves a maximum head of 178.4 metres with flow rates up to 250 L/Min.
How much current does this 7.5 kW motor draw on three-phase power?
Running on a 415 V three-phase supply, the 7.5 kW motor in the 12GS-75-3 draws 18.7 Amps during duty.
What minimum water velocity is required to cool this motor properly?
A minimum fluid velocity of 8 cm/s circulating around the casing is required for adequate cooling of the 12GS 75 3.
How does the pump shaft prevent drive slippage across stages?
A hexagonal stainless steel shaft in the 12GS_75_3 ensures reliable torque transfer across all stages without slippage.
What materials protect this deep-well pump from corrosion?
Built with an AISI 304 stainless steel casing, the 12GS75-3 resists corrosion during continuous deep submersion.
