SKU: 16GS15-1

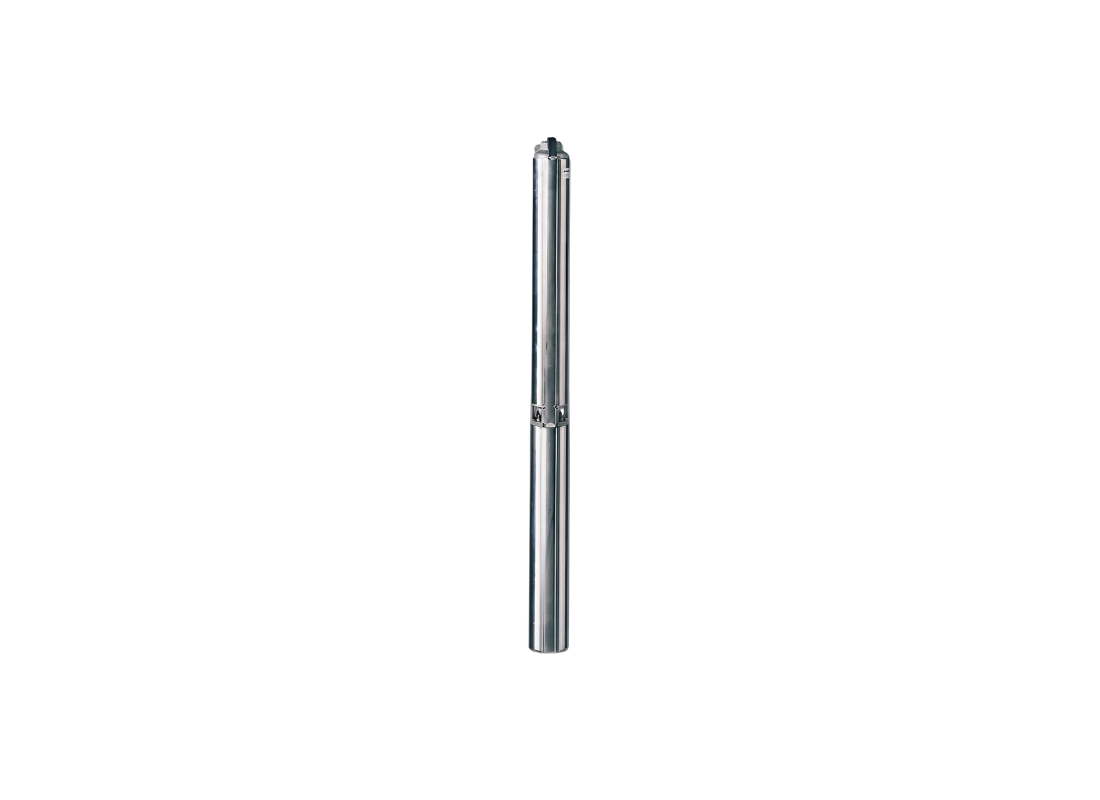

Lowara 16GS15-1 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
High-demand sprinkler irrigation and residential water distribution require pumps that deliver exceptional fluid transfer without compromise. The Lowara 16GS15-1, a 4-inch submersible bore pump, handles continuous operation where reliable high-volume delivery is essential. Its floating impeller system maintains performance in water containing suspended solids.
A 1.5 kW single-phase motor on 240 V draws 10.5 Amps during normal operation. Maximum flow reaches 367 L/Min, while maximum head extends to 30.6 metres at shut-off. The motor requires a minimum fluid velocity of 8 cm/s around the casing for effective cooling, and supports up to 30 starts per hour. This performance suits applications requiring massive volume with moderate lift.
Inside the hydraulic section, floating impellers allow suspended particles up to 150 g/m³ to pass without compromising internal clearances. The hexagonal pump shaft delivers torque reliably across all stages, while the front wear ring works with the floating impeller to improve abrasion resistance. An integrated stainless steel check valve prevents destructive backflow when the motor stops.
Precision-cast stainless steel upper and lower support brackets maintain alignment between the pump and motor. The 99 mm diameter casing fits standard 4-inch boreholes, with a 50 mm threaded outlet. Rated for continuous immersion in liquids up to 35°C, the complete unit comes with a control box and heatshrink kit for secure electrical connections.
FEATURES
- Floating impeller system handles abrasive groundwater without performance loss
- Hexagonal stainless steel shaft provides effective drive across all pump stages
- Front wear ring improves resistance to abrasive wear in sandy conditions
- Integrated non-return valve prevents reverse flow on motor shutdown
- AISI 304 stainless steel construction offers corrosion resistance during submersion
- Technopolymer impeller reduces starting torque requirements
- Includes control box and heatshrink kit for rapid installation
SPECIFICATIONS
| Max Flow | 367 L/Min |
| Max Head | 30 m |
| Power | 1.5 kW / 240v |
| Rated Current | 10.5 Amps |
| Suitable For | Sprinkler Irrigation |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum flow rate does this high-capacity residential pump provide?
The 16GS15-1 produces a massive flow rate of up to 367 L/Min with a maximum shut-off head of 30.6 metres.
What is the running current of this 1.5 kW single-phase motor?
Powered by a 1.5 kW single-phase motor on 240 V, the 16GS-15-1 draws 10.5 Amps during normal operation.
What borehole diameter and pipe connection size are required?
The 16GS 15 1 fits standard 4-inch boreholes with its 99 mm casing and includes a 50 mm threaded discharge outlet.
What accessories are supplied in the package for electrical commissioning?
The 16GS_15_1 comes complete with an external control box and a heatshrink kit for rapid installation.
How does this unit handle abrasive groundwater without seizing?
Floating impellers in the 16GS15-1 allow suspended sand up to 150 g/m3 to pass without compromising clearances.
