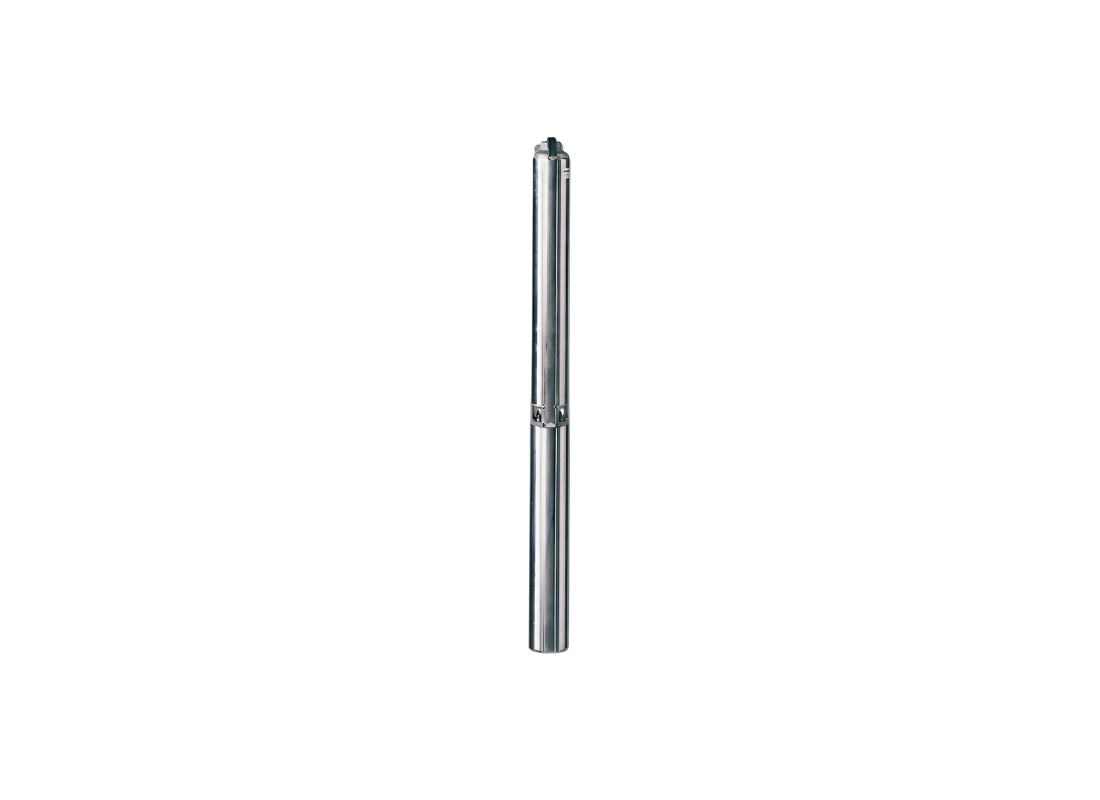

Lowara 16GS30-3 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Large-scale irrigation supply and complex agricultural water distribution demand pumps that provide uncompromising fluid extraction. The Lowara 16GS30-3, a three-phase submersible bore pump, handles continuous operation from 4-inch boreholes where reliable high-volume delivery is essential. Its floating impeller system maintains performance in water containing suspended solids.
A 3.0 kW three-phase motor on 415 V draws 7.1 Amps during normal operation. Maximum flow reaches 367 L/Min, while maximum head extends to 60.6 metres at shut-off. The motor requires a minimum fluid velocity of 8 cm/s around the casing for adequate cooling, and supports up to 30 starts per hour. This performance suits applications requiring massive volume and moderate lift.
Inside the hydraulic section, floating impellers allow suspended particles up to 150 g/m³ to pass without compromising internal clearances. The hexagonal pump shaft delivers torque reliably across all stages, while the front wear ring works with the floating impeller to improve abrasion resistance. An integrated stainless steel check valve prevents destructive backflow when the motor stops.
Precision-cast stainless steel upper and lower support brackets maintain alignment between the pump and motor. The 99 mm diameter casing fits standard 4-inch boreholes, with a 50 mm threaded outlet. Rated for continuous immersion in liquids up to 35°C, the complete unit comes with a heatshrink kit for secure electrical connections.
FEATURES
- Floating impeller system handles abrasive groundwater without performance loss
- Hexagonal stainless steel shaft provides effective drive across all pump stages
- Front wear ring improves resistance to abrasive wear in sandy conditions
- Integrated non-return valve prevents reverse flow on motor shutdown
- AISI 304 stainless steel construction offers corrosion resistance during submersion
- Technopolymer impeller reduces starting torque requirements
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 367 L/Min |
| Max Head | 60 m |
| Power | 3 kW / 415v |
| Rated Current | 7.1 Amps |
| Suitable For | Irrigation Supply |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What are the flow and pressure capabilities for large-scale irrigation?
The 16GS30-3 delivers high-volume flow up to 367 L/Min with a maximum shut-off head of 60.6 metres.
What electrical ratings apply to this 3 kW three-phase motor?
Powered by a 3.0 kW motor on a 415 V three-phase supply, the 16GS-30-3 draws 7.1 Amps during normal operation.
How many starts per hour does this industrial motor tolerate?
The 16GS 30 3 supports up to 30 starts per hour, making it suitable for fluctuating agricultural irrigation systems.
Does this pump prevent reverse rotation caused by falling water columns?
An integrated non-return valve in the 16GS_30_3 prevents reverse flow and protects the motor on shutdown.
What materials protect this borehole pump from underwater corrosion?
Featuring an AISI 304 stainless steel casing, the 16GS30-3 offers superior corrosion resistance during continuous submersion.
