SKU: 16GS55R-3

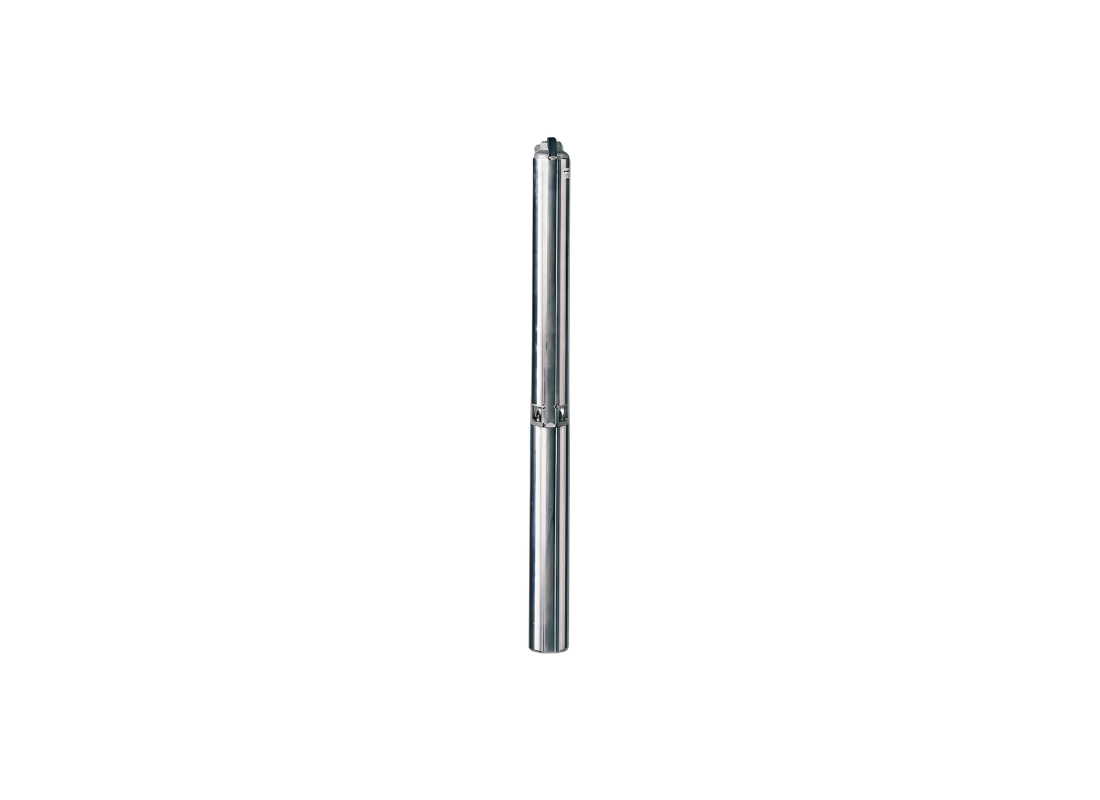

Lowara 16GS55R-3 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
High-volume pressure boosting and municipal fluid transfer require pumps that optimize performance through reduced-stage configuration. The Lowara 16GS55R-3, a three-phase submersible bore pump, handles continuous operation from 4-inch boreholes where reliable high-volume delivery is essential. Its floating impeller design supports performance in water containing suspended solids.
A 5.5 kW three-phase motor on 415 V draws 13.7 Amps during normal operation. Maximum flow reaches 367 L/Min, while maximum head extends to 96.1 metres at shut-off. The motor requires a minimum fluid velocity of 8 cm/s around the casing for effective cooling, and supports up to 30 starts per hour. This performance suits applications requiring massive volume and substantial lift.
Inside the hydraulic section, floating impellers allow suspended particles up to 150 g/m³ to pass without compromising internal clearances. The hexagonal pump shaft delivers torque reliably across all stages, while the front wear ring works with the floating impeller to improve abrasion resistance. An integrated stainless steel check valve prevents destructive backflow when the motor stops.
Precision-cast stainless steel upper and lower support brackets maintain alignment between the pump and motor. The 99 mm diameter casing fits standard 4-inch boreholes, with a 50 mm threaded outlet. Rated for continuous immersion in liquids up to 35°C, the complete unit comes with a heatshrink kit for secure electrical connections.
FEATURES
- Floating impeller system handles abrasive groundwater without performance loss
- Hexagonal stainless steel shaft provides effective drive across all pump stages
- Front wear ring improves resistance to abrasive wear in sandy conditions
- Integrated non-return valve prevents reverse flow on motor shutdown
- AISI 304 stainless steel construction offers corrosion resistance during submersion
- Technopolymer impeller reduces starting torque requirements
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 367 L/Min |
| Max Head | 96 m |
| Power | 5.5 kW / 415v |
| Rated Current | 13.7 Amps |
| Suitable For | Pressure Boosting |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What head and flow does this reduced-stage municipal pump deliver?
The 16GS55R-3 delivers a maximum shut-off head of 96.1 metres with high-volume flow reaching up to 367 L/Min.
What is the running current for this 5.5 kW three-phase motor?
Operating on a 415 V three-phase supply, the 5.5 kW motor in the 16GS-55R-3 draws 13.7 Amps.
How many motor starts per hour can this unit support?
The 16GS 55R 3 supports up to 30 starts per hour to accommodate variable municipal water transfer duties.
Does this pump secure the water column against reverse drainage?
An integrated non-return valve in the 16GS_55R_3 prevents reverse flow and protects the motor when deactivated.
How does this model handle abrasive particulates in deep aquifers?
Floating impellers in the 16GS55R-3 allow suspended particles up to 150 g/m3 to pass without binding.
