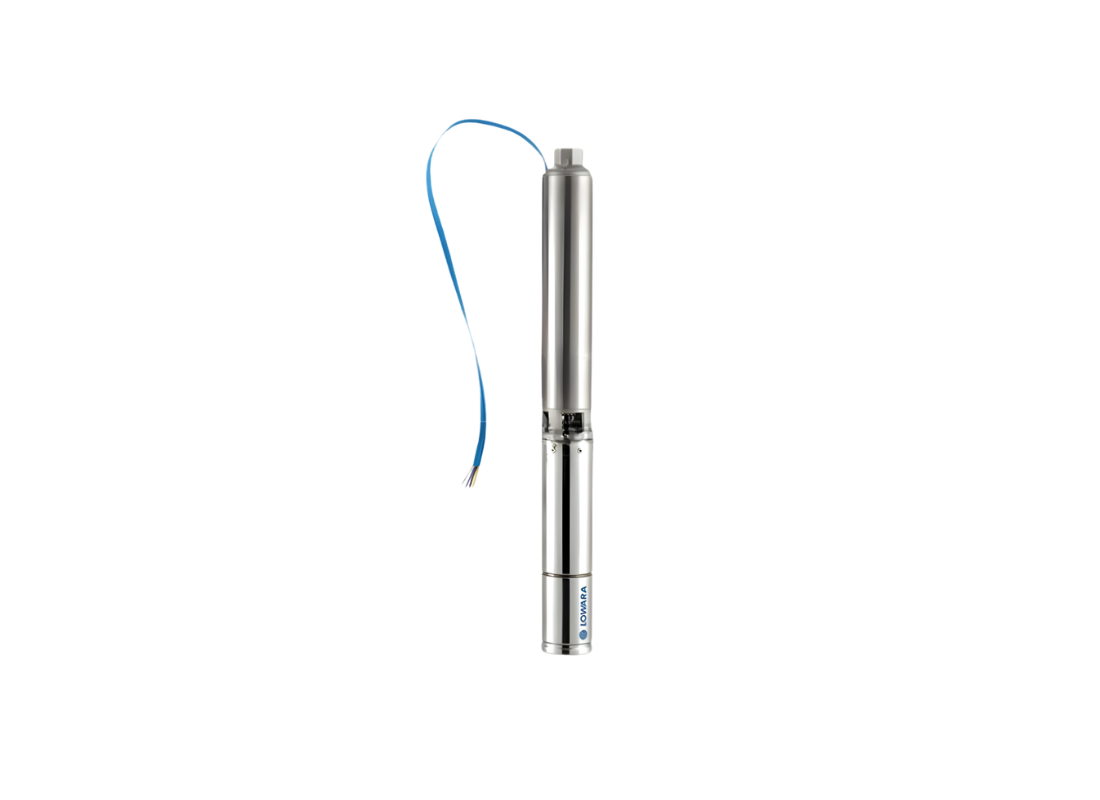

Lowara 1GS03-1 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The stainless steel casing and technopolymer diffusers form the foundation of this submersible borehole pump, which is designed for continuous groundwater extraction from 4-inch drilled wells, cisterns, and reservoirs. This unit handles primary water supply duties where consistent flow and reliable operation are required. The floating impeller configuration and integrated non-return valve help manage water column backflow when the motor stops.
Driven by a 0.37 kW single-phase motor at 240V, the unit draws 3.2 Amps under normal operation. Maximum flow reaches 22.5 L/Min, while maximum head extends to 69 metres. The hydraulic design delivers stable pressure across the operating range for borehole installations.
Floating impeller construction combined with the front wear ring system improves resistance to abrasive particles. The internal clearances help pass suspended solids effectively, supporting operation in groundwater containing sand or silt. The hexagonal pump shaft provides effective impeller drive throughout operation.
Supplied complete with the starting control box and heatshrink kit for electrical connections. Designed for continuous submersion in liquids up to 35°C, the pump integrates stainless steel fasteners and bearings that use the pumped fluid for cooling and lubrication.
FEATURES
- Floating hydraulic stack design allows sand and abrasives to pass easily through the pump stages
- Front wear ring works with the floating impeller to improve abrasion resistance in sandy water
- Hexagonal pump shaft provides effective impeller drive throughout operation
- Integrated stainless steel non-return valve prevents reverse flow when the pump stops
- AISI 304 stainless steel casing offers corrosion resistance for long-term submersion
- Technopolymer impeller and diffuser materials provide corrosion resistance with lightweight technopolymer construction
- Complete with external starting control box and protective heatshrink kit for electrical connections
SPECIFICATIONS
| Max Flow | 22.5 L/Min |
| Max Head | 69 m |
| Power | 0.37 kW / 240v |
| Rated Current | 3.2 Amps |
| Suitable For | Water Supply System |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does this borehole pump resist abrasive sand in well water?
Floating hydraulic stack construction allows the 1GS03M to process water containing sand up to 150 g/m3 without binding.
What electrical components are included to start and wire the pump?
The 1GS-03M comes supplied complete with an external starting control box and a protective heatshrink splicing kit.
Does this pump prevent backflow when the motor stops?
An integrated stainless steel non-return valve inside the 1GS 03M prevents water column backflow when the motor deactivates.
What are the motor power rating and running current?
Powered by a 240 V single-phase supply, the 0.37 kW motor of the 1GS_03M draws 3.2 Amps under normal operation.
What maximum head and flow can this deep-well pump achieve?
Designed for 4-inch wells, the 1GS03M delivers a maximum head of 69 metres with flow capability up to 22.5 L/Min.
