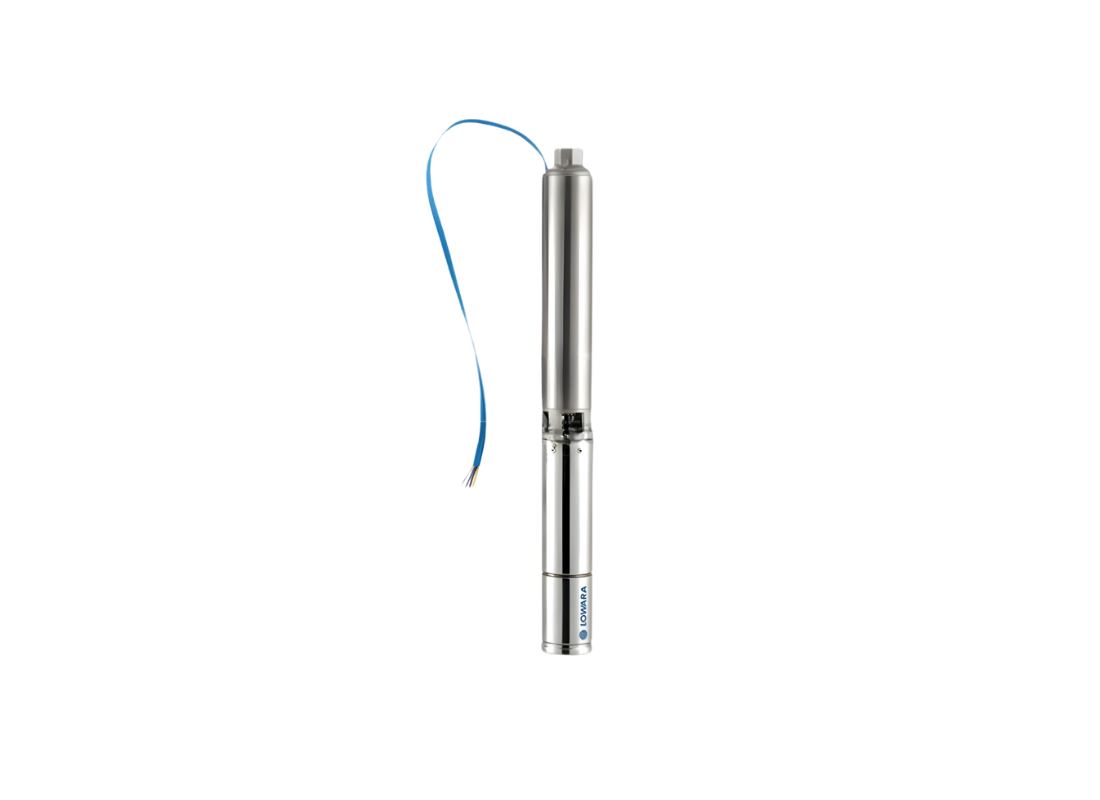

Lowara 1GS05-1 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
This submersible pump is designed to handle sprinkler irrigation duties from deep underground cisterns and narrow boreholes. It extracts groundwater where reliable flow delivery is essential for agricultural and domestic water systems. The floating impeller design helps maintain performance even when handling water containing suspended solids.
Powered by a 240V single-phase motor rated at 0.55 kW, the unit draws 4.3 Amps during operation. Maximum flow is 22.5 L/Min, while maximum head reaches 105 metres. The Hydraulic performance provides consistent pressure delivery across the operating duty range for irrigation networks.
Floating stack construction permits the passage of sand concentrations up to 150 g/m³ without binding. The front wear ring works with the floating impeller to improve abrasion resistance, while the hexagonal shaft transmits motor torque directly to the impeller stages. A built-in check valve secures the system against backflow.
Built with a 304 Stainless Steel outer casing and technopolymer hydraulic components for corrosion resistance. The motor adapter and discharge head are precision-cast stainless steel. Supplied complete with external starting control equipment and thermal shrink kit for waterproof cable connections.
FEATURES
- Floating impeller system handles suspended sand without performance degradation
- Stainless steel hexagonal shaft ensures effective impeller drive across all stages
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Integrated non-return valve prevents water column reversal on shutdown
- AISI 304 stainless steel construction provides corrosion resistance in submerged environments
- Technopolymer impeller provide lightweight technopolymer construction for smoother motor starts
- Includes control box and heatshrink kit for immediate installation
SPECIFICATIONS
| Max Flow | 22.5 L/Min |
| Max Head | 105 m |
| Power | 0.55 kW / 240v |
| Rated Current | 4.3 Amps |
| Suitable For | Sprinkler Irrigation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum lift height for this deep cistern irrigation pump?
The 1GS05M reaches a maximum head of 105 metres while delivering up to 22.5 L/Min for irrigation networks.
What materials protect this submersible pump from underwater corrosion?
Manufactured with an AISI 304 stainless steel casing and technopolymer impellers, the 1GS-05M offers excellent corrosion resistance.
How is power transferred from the motor to the individual impeller stages?
Motor torque is transmitted smoothly through all stages of the 1GS 05M via a durable hexagonal stainless steel shaft.
What are the power consumption and current specifications?
Running on a 240 V single-phase connection, the 0.55 kW motor of the 1GS_05M draws 4.3 Amps.
Does this pump include equipment to ensure waterproof electrical joints?
A thermal shrink kit is included with the 1GS05M to create reliable, waterproof electrical cable connections.
