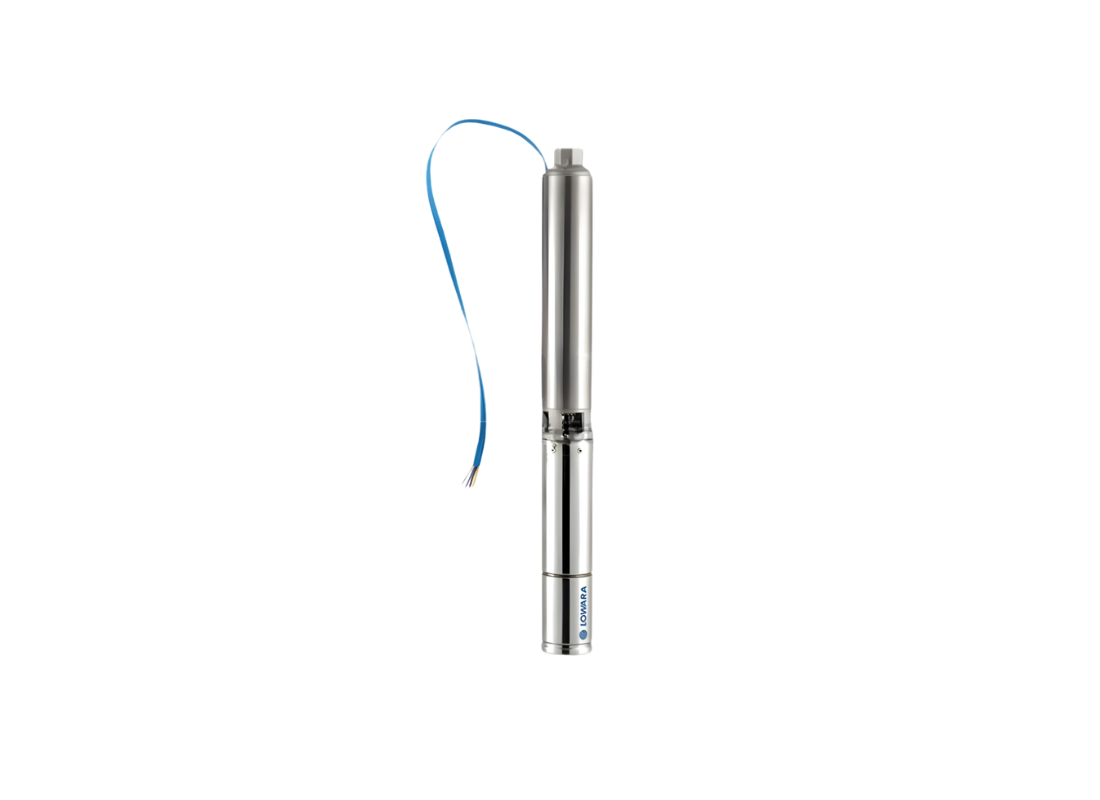

Lowara 1GS11-1 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Fire protection reserves require water drawn from extremely deep subterranean sources, and this submersible borehole pump delivers the pressure and flow needed for reliable emergency water supply. The floating impeller configuration maintains performance in deep well applications where critical operation is essential.
Operating on 240V single-phase power, the 1.1 kW motor draws 7.6 Amps during duty. Maximum flow reaches 22.5 L/Min, with maximum head of 204 metres. The hydraulic design provides the high head characteristics required for vertical extraction from significant depths.
Floating stack construction allows the pump to handle water containing up to 150 g/m³ of suspended sand. The front wear ring works with the floating impeller to improve abrasion resistance, while the hexagonal shaft ensures effective impeller drive. A heavy-duty non-return valve is integrated within the discharge section.
Constructed with a 304 Stainless Steel outer casing and technopolymer hydraulic components. The motor adapter and discharge head are manufactured from precision-cast stainless steel. Supplied complete with external starting control equipment and thermal shrink kit for waterproof cable connections.
FEATURES
- Floating impeller system handles abrasive groundwater without performance loss
- Hexagonal stainless steel shaft provides effective impeller drive throughout the stages
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Integrated non-return valve secures the water column against reverse flow
- AISI 304 stainless steel construction protects against corrosion in submerged environments
- Technopolymer impeller provide lightweight technopolymer construction and starting inertia
- Complete with control box and heatshrink kit for immediate commissioning
SPECIFICATIONS
| Max Flow | 22.5 L/Min |
| Max Head | 204 m |
| Power | 1.1 kW / 240v |
| Rated Current | 7.6 Amps |
| Suitable For | Fire Protection System |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Is this submersible pump capable of supplying emergency fire reserves from deep wells?
The 1GS11M provides the high-head vertical extraction required to draw emergency reserves from deep subterranean sources.
What electrical accessories are supplied with this single-phase borehole pump?
An external starting control box and a waterproof thermal shrink kit are included with the 1GS-11M for immediate commissioning.
What is the maximum head rating of this high-pressure model?
High head capability allows the 1GS 11M to achieve up to 204 metres of lift with a maximum flow of 22.5 L/Min.
How does the pump maintain durability when pumping abrasive sediment?
Floating hydraulic stack construction protects the 1GS_11M against performance degradation in water containing up to 150 g/m3 of sand.
How much power and current does this motor draw during operation?
Operating on a 240 V single-phase supply, the 1.1 kW motor of the 1GS11M draws 7.6 Amps during duty.
