SKU: 1GS11-3

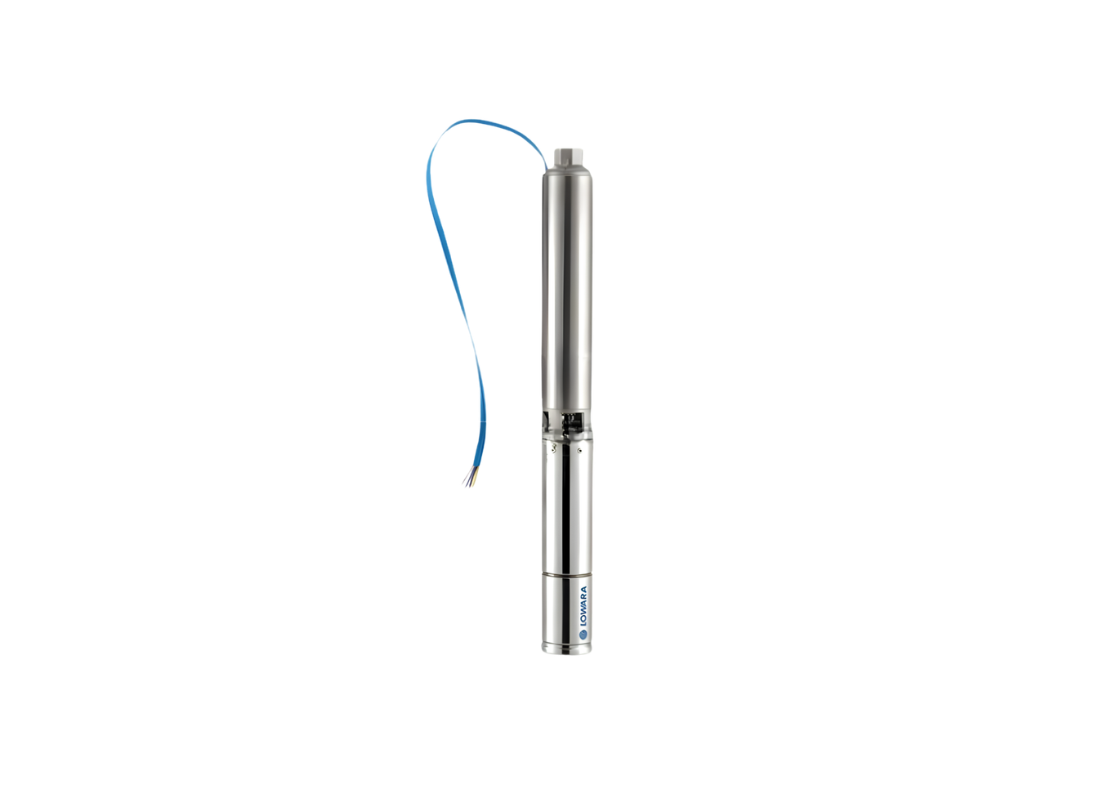

Lowara 1GS11-3 Stainless Steel 3-Phase 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Large-scale water supply operations retrieving fluid from exceptionally deep 4-inch boreholes are the domain of this submersible pump. It serves municipal and industrial water extraction duties where consistent flow and high head are essential, with a floating impeller configuration that supports reliable long-term operation.
Wired for 415V three-phase power, the 1.1 kW motor draws 3.1 Amps during normal operation. Maximum flow reaches 22.5 L/Min with maximum head of 204 metres. The hydraulic performance characteristics support deep well installations requiring significant lift.
Floating internal design permits the pump to handle water containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft ensures effective impeller drive. A precisely engineered non-return valve locks the vertical water column on shutdown.
Constructed with a 304 Stainless Steel casing and technopolymer hydraulic components. The motor adapter and discharge head are precision-cast stainless steel. This complete three-phase model includes a heavy-duty heatshrink kit for waterproof deep-water connections.
FEATURES
- Floating impeller design handles abrasive groundwater without performance loss
- Hexagonal stainless steel shaft provides effective impeller drive across all stages
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Integrated non-return valve prevents water column reversal on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in deep well applications
- Technopolymer impeller provide lightweight technopolymer construction for smoother starts
- Supplied with heatshrink kit for waterproof cable splices
SPECIFICATIONS
| Max Flow | 22.5 L/Min |
| Max Head | 204 m |
| Power | 1.1 kW / 415v |
| Rated Current | 3.1 Amps |
| Suitable For | Water Supply System |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum head does this deep municipal water extraction pump achieve?
Reaching deep underground aquifers, the 1GS11T provides a maximum head of 204 metres with a flow rate of 22.5 L/Min.
How does this deep-well pump protect its internal stages from abrasive sand?
The floating stack construction in the 1GS-11T tolerates suspended sand concentrations up to 150 g/m3 without binding.
What power supply and running current are required for this pump?
The 1GS 11T operates on a 415 V three-phase supply with a 1.1 kW motor drawing 3.1 Amps.
Is this submersible pump supplied with cable connection equipment?
A heavy-duty heatshrink kit is provided with the 1GS_11T for making waterproof deep-water cable connections.
How is vertical fluid backflow prevented when the motor shuts off?
A precision-engineered non-return valve in the 1GS11T securely locks the vertical water column on shutdown.
