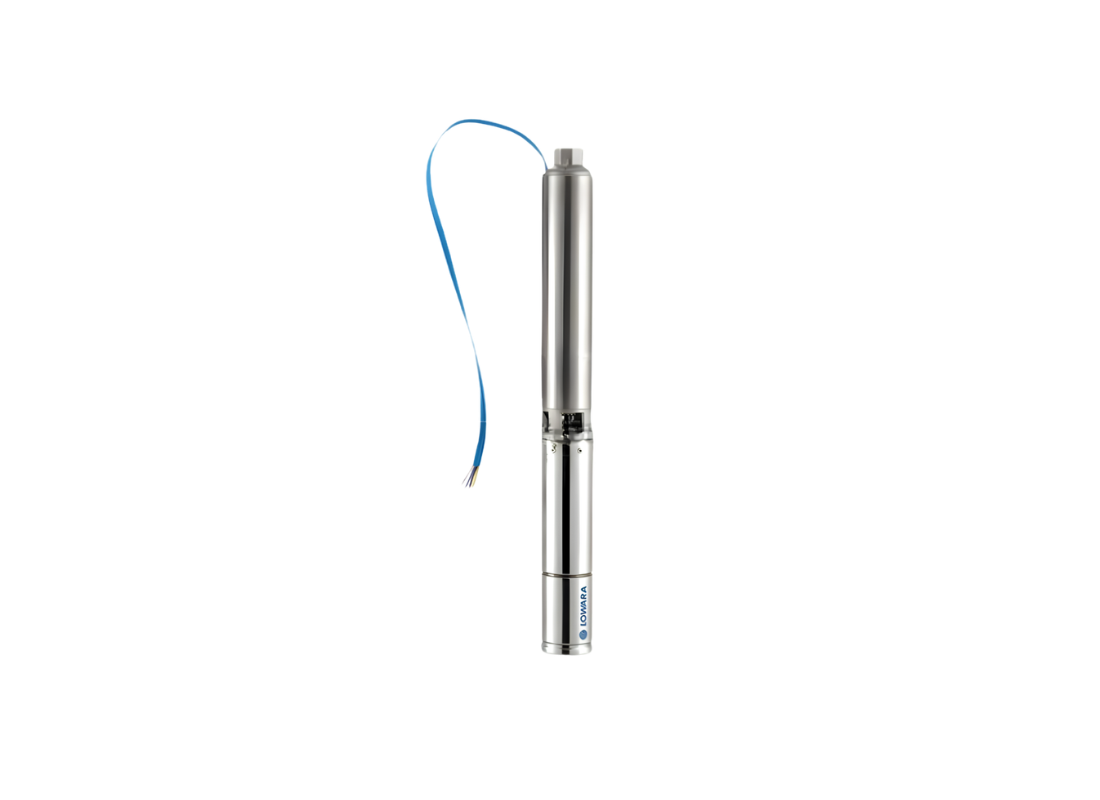

Lowara 1GS15-1 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Intensive water supply networks drawing from deep underground aquifers and cisterns benefit from this submersible pump, which provides the high head capability required for municipal and commercial water extraction from 4-inch boreholes. The floating impeller design supports continuous operation in demanding water supply duties.
Powered by a 240V single-phase motor rated at 1.5 kW, drawing 10.5 Amps during normal operation. Maximum flow is 22.5 L/Min with maximum head reaching 285 metres. The hydraulic performance characteristics support deep well installations where significant lift pressures are required.
Floating stack construction tolerates liquid containing up to 150 g/m³ of suspended sand. The front wear ring works with the floating impeller to improve abrasion resistance, while the hexagonal pump shaft provides effective impeller drive. An embedded stainless steel check valve prevents descending water columns when the motor stops.
Built with a 304 Stainless Steel casing and technopolymer impellers for corrosion resistance. The discharge head is manufactured from precision-cast stainless steel. The single-phase package includes the motor control box and heatshrink kit for secure electrical jointing.
FEATURES
- Floating impeller design handles sand concentrations up to 150 g/m³
- Hexagonal stainless steel shaft provides effective impeller drive without slippage
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents reverse rotation and water column drainage
- AISI 304 stainless steel casing offers corrosion resistance in deep well applications
- Technopolymer impeller provide corrosion resistance with lightweight technopolymer construction
- Includes control box and heatshrink kit for rapid commissioning
SPECIFICATIONS
| Max Flow | 22.5 L/Min |
| Max Head | 285 m |
| Power | 1.5 kW / 240v |
| Rated Current | 10.5 Amps |
| Suitable For | Water Supply System |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the highest head this municipal water extraction pump can produce?
The 1GS15M delivers an impressive maximum head of 285 metres with a flow rate reaching 22.5 L/Min.
How does this deep-well pump prevent impeller slippage under heavy loads?
A rigid hexagonal stainless steel pump shaft prevents drive slippage across all stages in the 1GS-15M.
What motor specifications apply to this high-power single-phase unit?
Powered by a 240 V single-phase supply, the 1.5 kW motor of the 1GS 15M draws 10.5 Amps during normal operation.
Does this pump include built-in protection against reverse fluid drainage?
An embedded stainless steel check valve inside the 1GS_15M prevents water columns from reversing on shutdown.
How does this borehole pump tolerate suspended sand particles?
Engineered with a floating stack design, the 1GS15M tolerates groundwater with sand concentrations up to 150 g/m3.
